TOTAL LIFE SCALE

Management & Merchandising

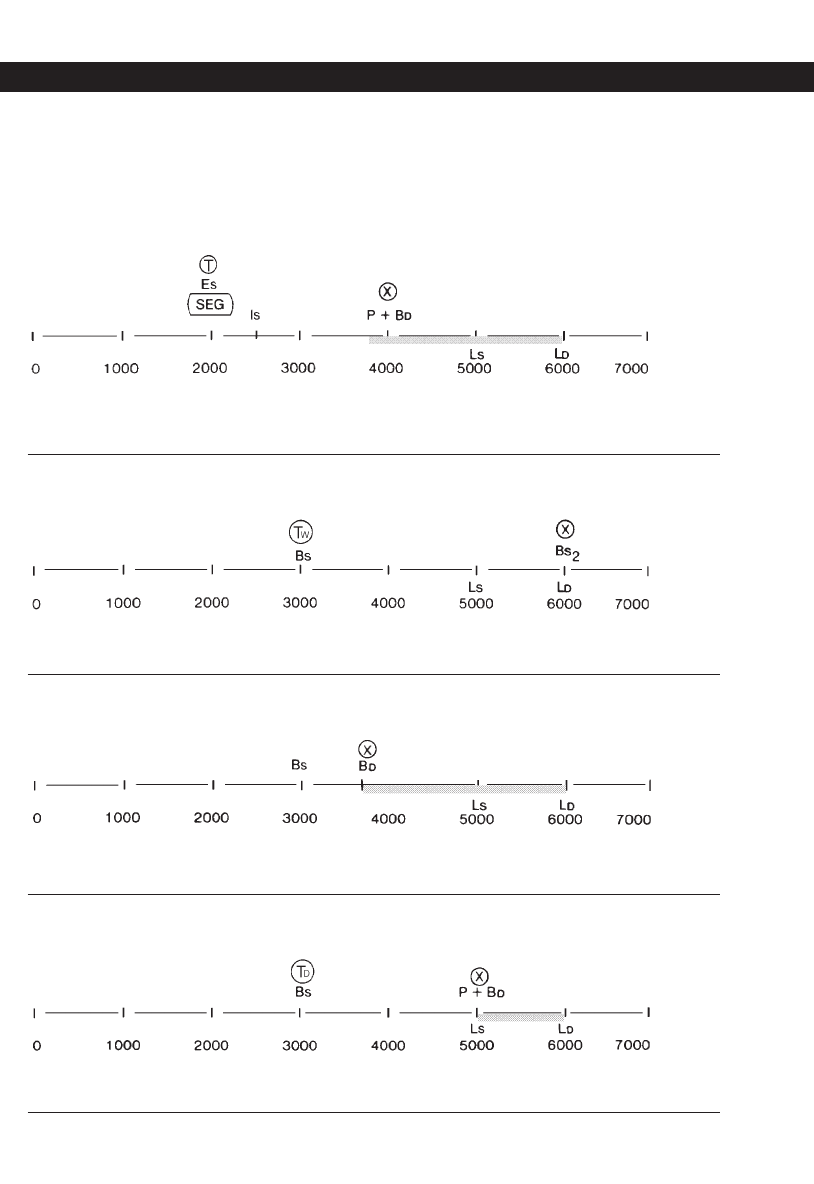

The following example demonstrates the possible use of Total Life Scales when

comparing the above Sealed Track and Segment wear life and maintenance history with

3 alternative projected Sealed and Lubricated Track wear life and maintenance expecta-

tions in identical conditions:

Sealed Track History

Cost/Hour = $ ____________ = ___________

3980 smu

(Pin and bushing turn and segment replace at 2000 SMU and run to destruction at 3980

SMU)

Sealed and Lubricated Track

Cost/Hour = $ ____________ = ___________

Projected Alternative No. 1

6000 smu

(Wet bushing turn at 3000 SMU and run to link destruction at 6000 SMU with no

additional segments required)

Sealed and Lubricated Track

Cost/Hour = $ ____________ = ___________

Projected Alternative No. 2

3600 smu

(No turn — run to bushing destruction at 3600 SMU with no additional segment

required)

Sealed and Lubricated Track

Projected Alternative No. 3

(Dry bushing turn at 3000 SMU and run to pin and bushing destruction at 5000 SMU

with no additional segments required)
