Wear and Structural Problems

on Sealed or Dry Track Pins

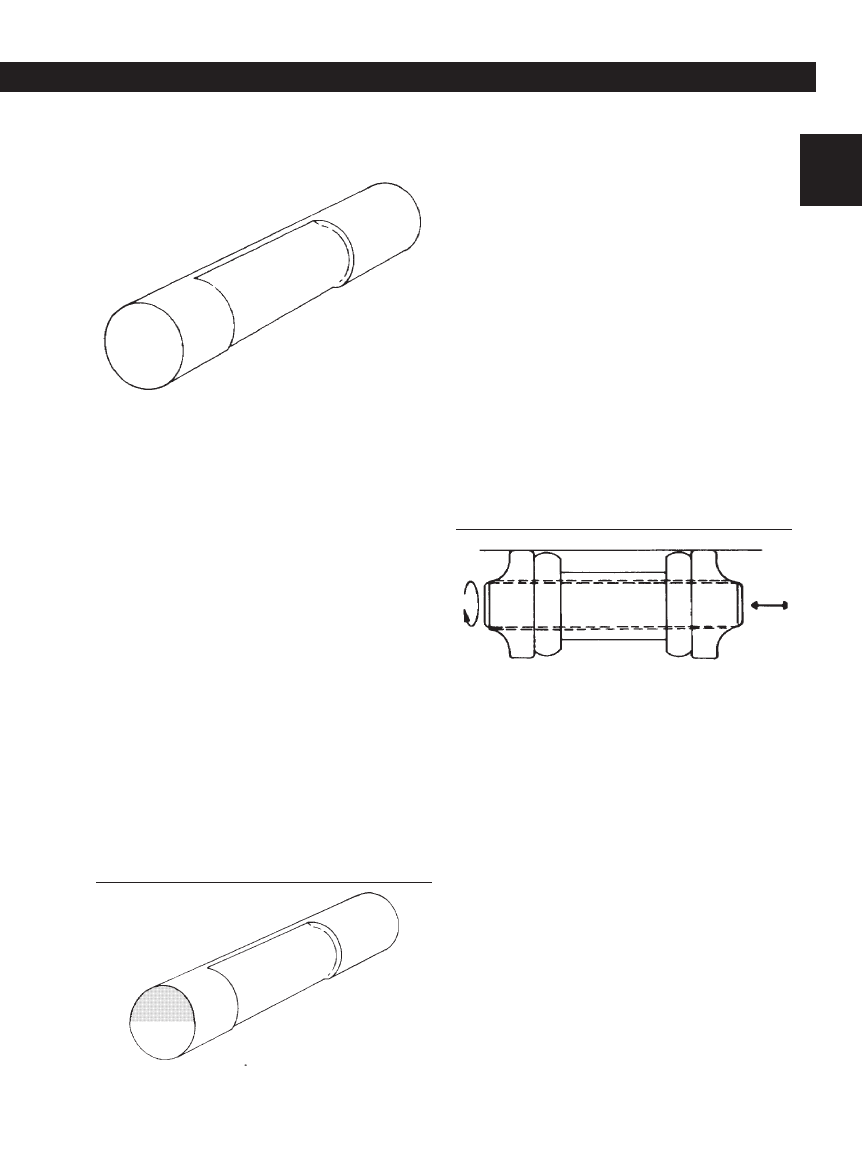

Internal Wear (Pin O.D. Wear and

Bushing I.D. Wear)

CAUSES: Rotational contact with abrasive

and/or I.D. of bushings.

ACCELERATORS: Horsepower, weight

and speed of machine; abrasiveness, loss

of sealing effect and snakiness, impact,

terrain packing loads, and maneuvering.

Track tension, too wide shoes, worn rear

rollers and high speed non-productive

work are main controllable variables.

EFFECT: Track pitch increase with result-

ing mismatch (see sprocket wear patterns).

Beginning of “chain-reaction” of most

advanced undercarriage component wear.

REMEDIES: Eliminate or reduce control-

lable accelerator variables, turn Sealed

Track pins and bushings at service limit.

Use Sealed and Lubricated Track.

Pin End Wear

CAUSES: Sliding contact with guiding

and/or roller guards plus abrasives (may

be seen at either or both ends of pin —

usually more severe on outboard side).

ACCELERATORS: Uneven terrain, and

side hill operation. Too-wide shoes, worn

rolling component flange misalignment

and snaky track are main controllable

variables.

EFFECT: Pin will have to be re-cham-

fered before re-assembling track at turn

time to avoid broaching link pin bore

with sharp edges resulting in pin retention

loss. Extreme cases will show wear on

outer face of pin boss which reduces pin

retention.

REMEDIES: Eliminate or reduce control-

lable accelerator variables, particularly

snaky track by turning pins and bushings.

Pin Loosening

CAUSES: Loss of press fit retention in

link pin bore.

ACCELERATORS: (1) Severe repeated

impact yields or cracks link bore. (2)

Uneven terrain and too-wide shoes

increase flexing of pin in bores. (3) Link

bore broached by improper track press

alignment at reassembly time. (4) Loose

track shoes.

EFFECT: Loss of pin and separation of

track; loss of parts reusability and rebuild-

ability.

REMEDIES: (1) Eliminate or reduce con-

trollable variables which increase impact

loads and flexing of joint such as too-wide

shoes. (2) Control track press alignment

capability and re-chamfer worn pin ends

to reduce bore broaching.

General Information

SEALED TRACK PINS & BUSHINGS
