Caterpillar Custom Track Service Handbook Page 643

Service Handbook

Page of 826

/ 826

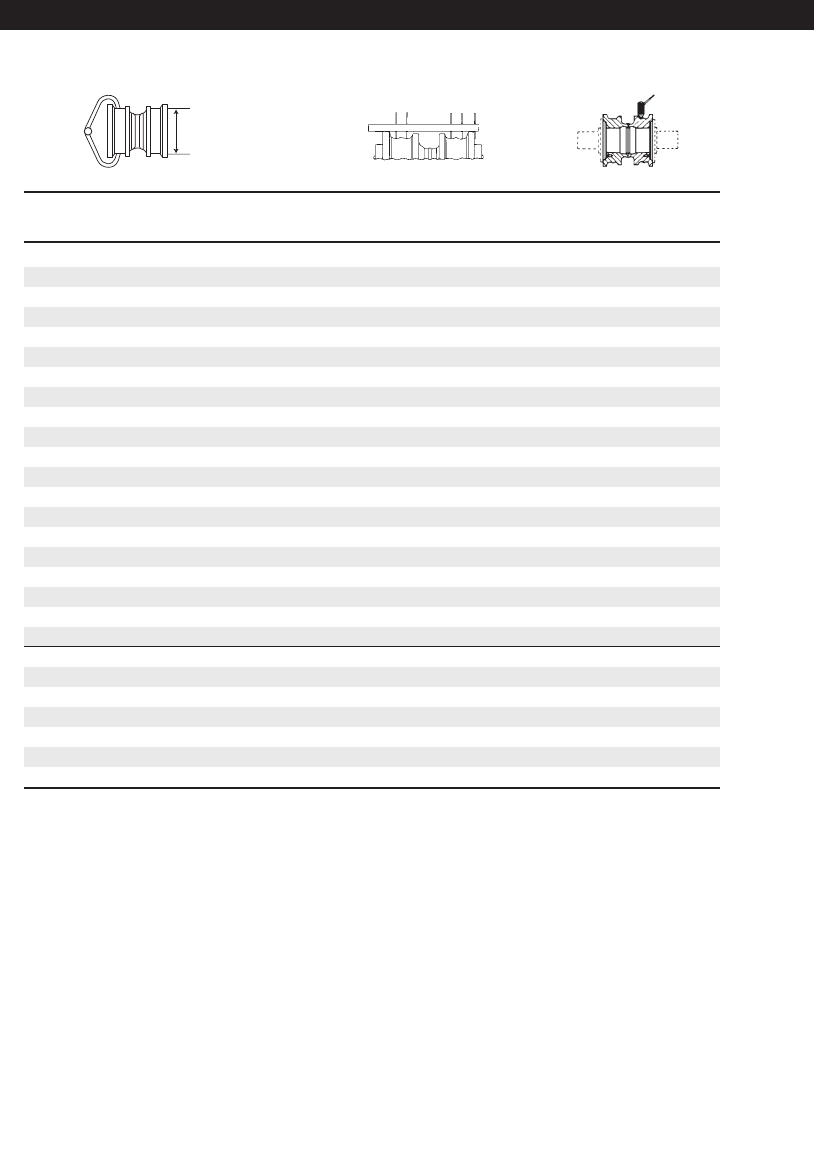

Track Rollers

8E Rim

Caliper Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm) Inches (mm)

6.37 (162.0) 0 0.75 (19.0) 1.67 (42.4)

6.33 (161.0) 6 0.77 (19.5) 1.65 (41.9)

6.29 (160.0) 12 0.79 (20.0) 1.63 (41.4)

6.25 (159.0) 18 0.81 (20.5) 1.61 (40.9)

6.21 (157.5) 24 0.83 (21.0) 1.59 (40.4)

6.17 (156.5) 30 0.85 (21.5) 1.57 (39.9)

6.13 (155.5) 36 0.87 (22.0) 1.55 (39.4)

6.09 (154.5) 42 0.89 (22.5) 1.53 (38.9)

6.05 (153.5) 48 0.91 (23.0) 1.51 (38.4)

6.01 (152.5) 54 0.93 (23.5) 1.49 (37.8)

5.97 (151.5) 60 0.95 (24.0) 1.47 (37.3)

5.93 (150.5) 66 0.97 (24.5) 1.45 (36.8)

5.89 (149.5) 72 0.99 (25.0) 1.43 (36.3)

5.85 (148.5) 78 1.01 (25.5) 1.41 (35.8)

5.81 (147.5) 84 1.03 (26.0) 1.39 (35.3)

5.77 (146.5) 88 1.05 (26.5) 1.37 (34.8)

5.73 (145.5) 91 1.07 (27.0) 1.35 (34.3)

5.69 (144.5) 94 1.09 (27.5) 1.33 (33.8)

5.65 (143.5) 97 1.11 (28.0) 1.31 (33.3)

5.61 (142.5) 100 1.13 (28.5) 1.29 (32.8)

5.57 (141.5) 103 1.15 (29.0) 1.27 (32.3)

5.53 (140.5) 106 1.17 (29.5) 1.25 (31.8)

5.49 (139.5) 109 1.19 (30.0) 1.23 (31.2)

5.45 (138.5) 112 1.21 (30.5) 1.21 (30.7)

5.41 (137.5) 115 1.23 (31.0) 1.19 (30.2)

5.37 (136.5) 118 1.25 (32.0) 1.17 (29.7)

5.33 (135.5) 121 1.27 (32.5) 1.15 (29.2)

Flange diameter is 7.87" (200 mm)

Undercarriage Code: 443, 455

642

225, 219, 215 S.A., FB221, FB217, DL221 — 7.50" (190 mm) & 6.91" (175.5 mm)

Excavators

11.Exc.(608-709) 7/14/03 7:33 AM Page 642
