Caterpillar Custom Track Service Handbook Page 515

Service Handbook

Page of 826

/ 826

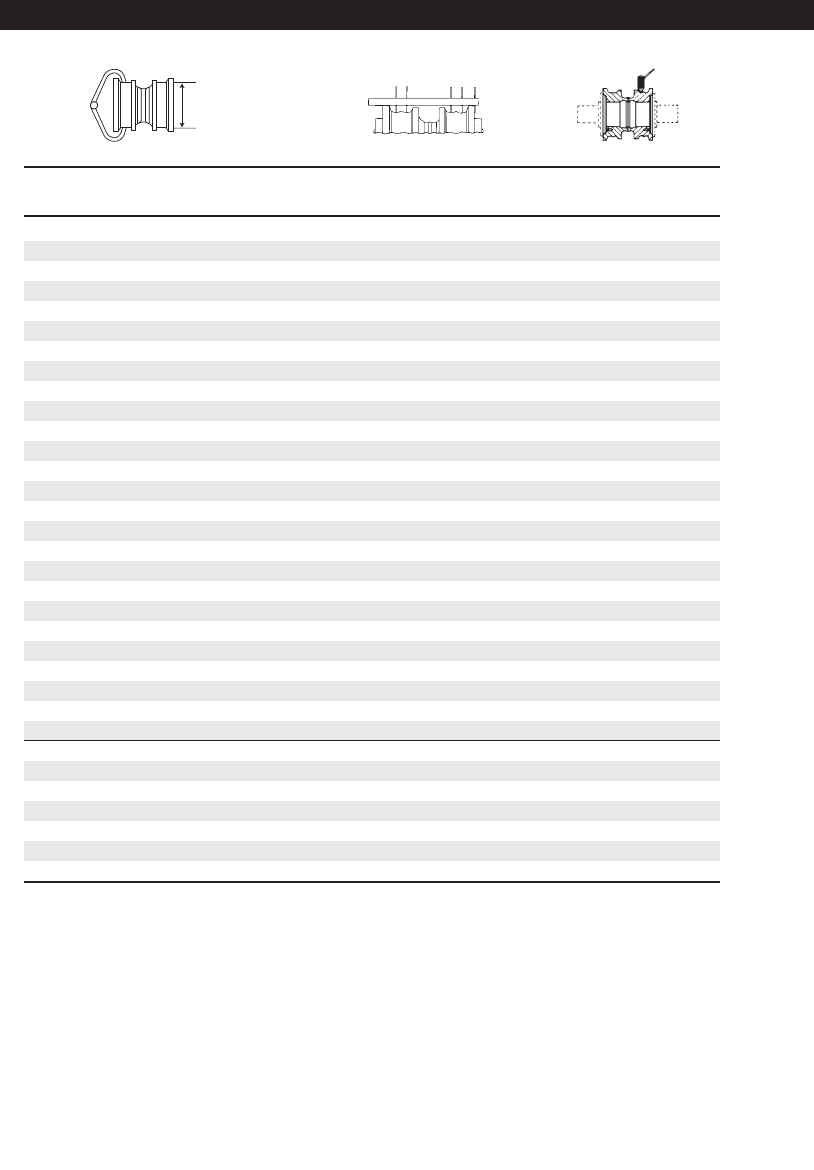

Track Rollers

Caliper Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm) Inches (mm)

5.43 (138.0) 0 0.59 (15.0) 1.65 (41.9)

5.41 (137.5) 5 0.60 (15.0) 1.64 (41.7)

5.39 (137.0) 10 0.61 (15.5) 1.63 (41.4)

5.37 (136.5) 15 0.62 (15.5) 1.62 (41.1)

5.35 (136.0) 20 0.63 (16.0) 1.61 (40.9)

5.33 (135.5) 25 0.64 (16.5) 1.60 (40.6)

5.31 (135.0) 30 0.65 (16.5) 1.59 (40.4)

5.29 (134.5) 35 0.66 (17.0) 1.58 (40.1)

5.27 (134.0) 40 0.67 (17.0) 1.57 (39.9)

5.25 (133.5) 45 0.68 (17.5) 1.56 (39.6)

5.23 (133.0) 50 0.69 (17.5) 1.55 (39.4)

5.21 (132.5) 55 0.70 (18.0) 1.54 (39.1)

5.19 (132.0) 60 0.71 (18.0) 1.53 (38.9)

5.17 (131.5) 64 0.72 (18.5) 1.52 (38.6)

5.15 (131.0) 67 0.73 (18.5) 1.51 (38.4)

5.13 (130.5) 70 0.74 (19.0) 1.50 (38.1)

5.11 (130.0) 73 0.75 (19.0) 1.49 (37.8)

5.09 (129.5) 76 0.76 (19.5) 1.48 (37.6)

5.07 (129.0) 79 0.77 (19.5) 1.47 (37.3)

5.05 (128.5) 82 0.78 (20.0) 1.46 (37.1)

5.03 (128.0) 85 0.79 (20.0) 1.45 (36.8)

5.01 (127.5) 88 0.80 (20.5) 1.44 (36.6)

4.99 (126.5) 91 0.81 (20.5) 1.43 (36.3)

4.97 (126.0) 94 0.82 (21.0) 1.42 (36.1)

4.95 (125.5) 97 0.83 (21.0) 1.41 (35.8)

4.93 (125.0) 100 0.84 (21.5) 1.40 (35.6)

4.91 (124.5) 103 0.85 (21.5) 1.39 (35.3)

4.89 (124.0) 106 0.86 (22.0) 1.38 (35.1)

4.87 (123.5) 109 0.87 (22.0) 1.37 (34.8)

4.85 (123.0) 112 0.88 (22.5) 1.36 (34.5)

4.83 (122.5) 115 0.89 (22.5) 1.35 (34.3)

4.81 (122.0) 118 0.90 (23.0) 1.34 (34.0)

4.79 (121.5) 121 0.91 (23.0) 1.33 (33.8)

Flange diameter is 6.61" (168 mm)

Undercarriage Code: 516, 531

514

311, 312, 313, 314 — 6.75" (171.5 mm)

Excavators

10.Exc.(488-607) 7/14/03 7:32 AM Page 514
