Caterpillar Custom Track Service Handbook Page 711

Service Handbook

Page of 826

/ 826

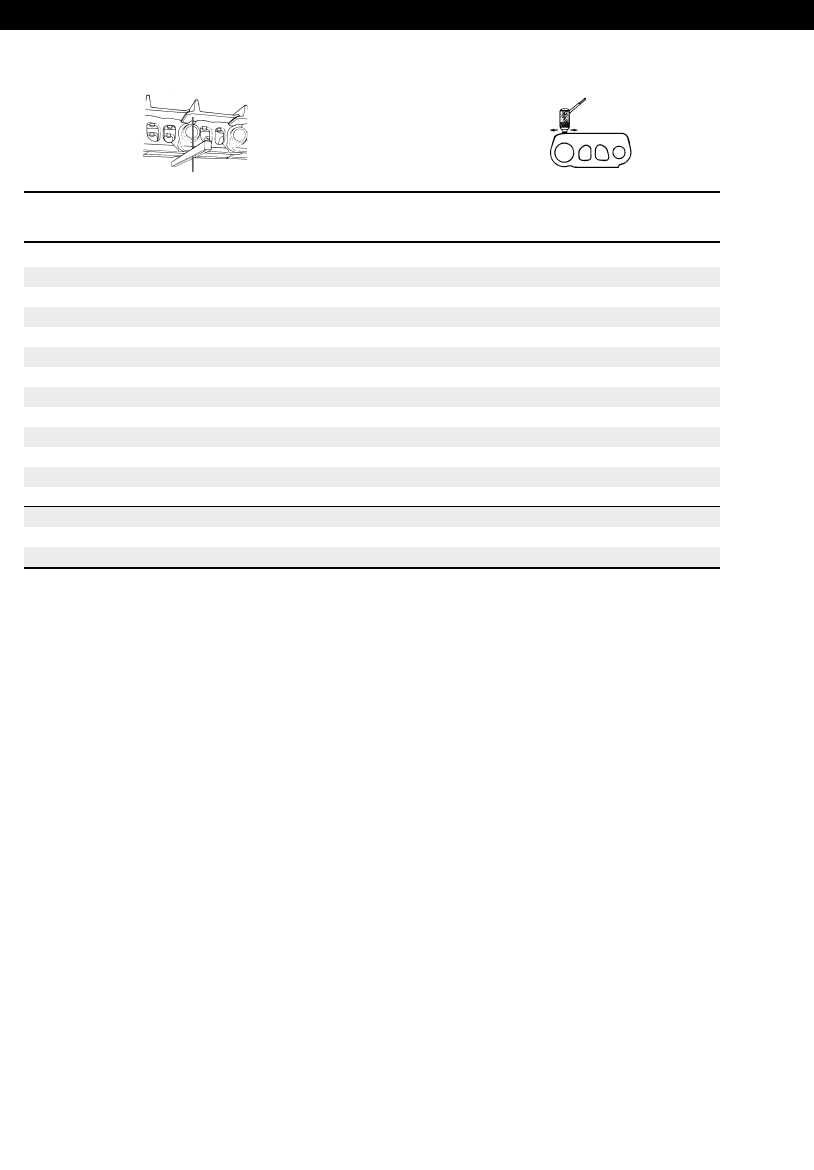

Track Links

931969 & 70

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

2.91 (74.0) 0 0.78 (19.8)

2.89 (73.5) 9 0.76 (19.3)

2.87 (73.0) 18 0.74 (18.8)

2.85 (72.5) 27 0.72 (18.3)

2.83 (72.0) 36 0.70 (17.8)

2.81 (71.5) 45 0.68 (17.3)

2.79 (71.0) 54 0.66 (16.8)

2.77 (70.5) 63 0.64 (16.3)

2.75 (70.0) 72 0.62 (15.7)

2.73 (69.5) 79 0.60 (15.2)

2.71 (69.0) 86 0.58 (14.7)

2.69 (68.5) 93 0.56 (14.2)

2.67 (68.0) 100 0.54 (13.7)

2.65 (67.5) 107 0.52 (13.2)

2.63 (67.0) 114 0.50 (12.7)

2.61 (66.5) 121 0.48 (12.2)

Undercarriage Code: 500, 501

710

E70B — 5.31" (135 mm)

Excavators

12.Exc.(710-791) 7/14/03 8:34 AM Page 710
