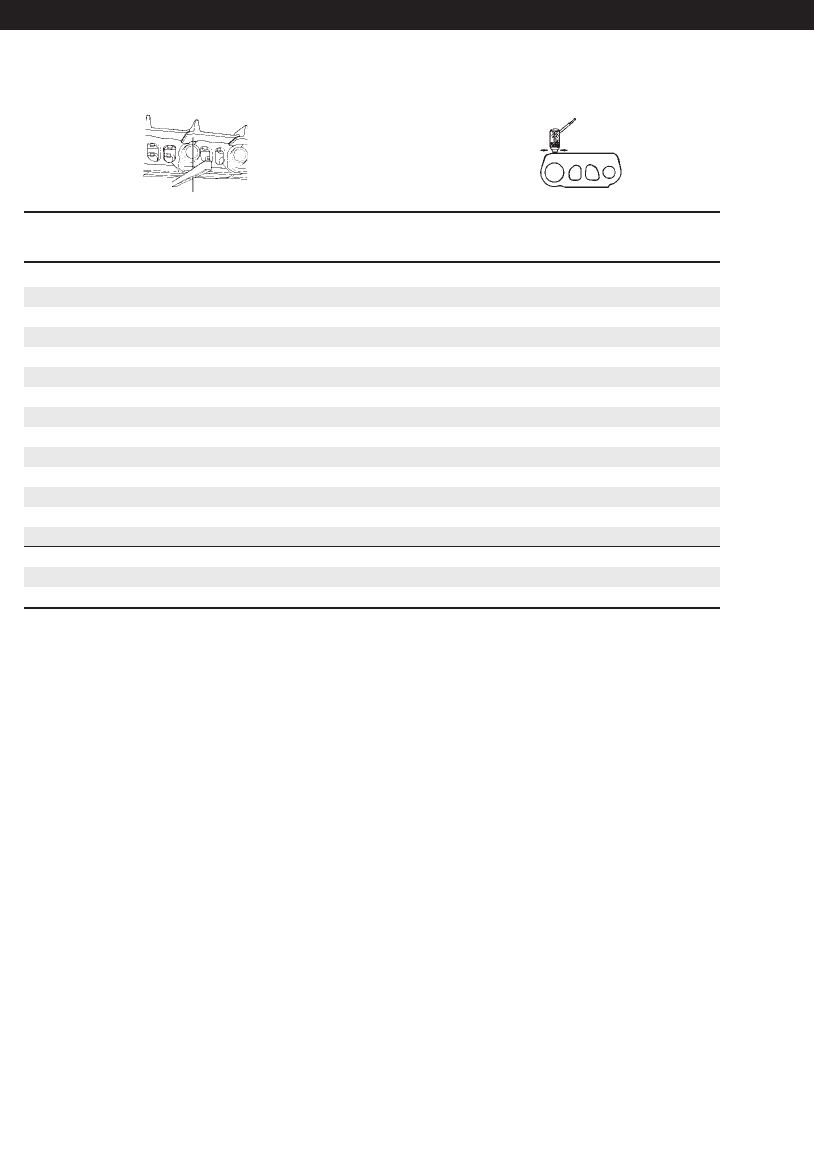

Track Links

7T4043 & 44

7.50" (190 mm) Pitch

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

4.17 (106.0) 0 1.21 (30.7)

4.15 (105.5) 9 1.19 (30.2)

4.13 (105.0) 18 1.17 (29.7)

4.11 (104.5) 27 1.15 (29.2)

4.09 (104.0) 36 1.13 (28.7)

4.07 (103.5) 44 1.11 (28.2)

4.05 (103.0) 51 1.09 (27.7)

4.03 (102.5) 58 1.07 (27.2)

4.01 (102.0) 65 1.05 (26.7)

3.99 (101.5) 72 1.03 (26.2)

3.97 (101.0) 79 1.01 (25.7)

3.95 (100.5) 86 0.99 (25.1)

3.93 (100.0) 93 0.97 (24.6)

3.91 (99.5) 100 0.95 (24.1)

3.89 (99.0) 107 0.93 (23.6)

3.87 (98.5) 114 0.91 (23.1)

3.85 (98.0) 121 0.89 (22.6)

Undercarriage Code: 442, 443, 454, 455
