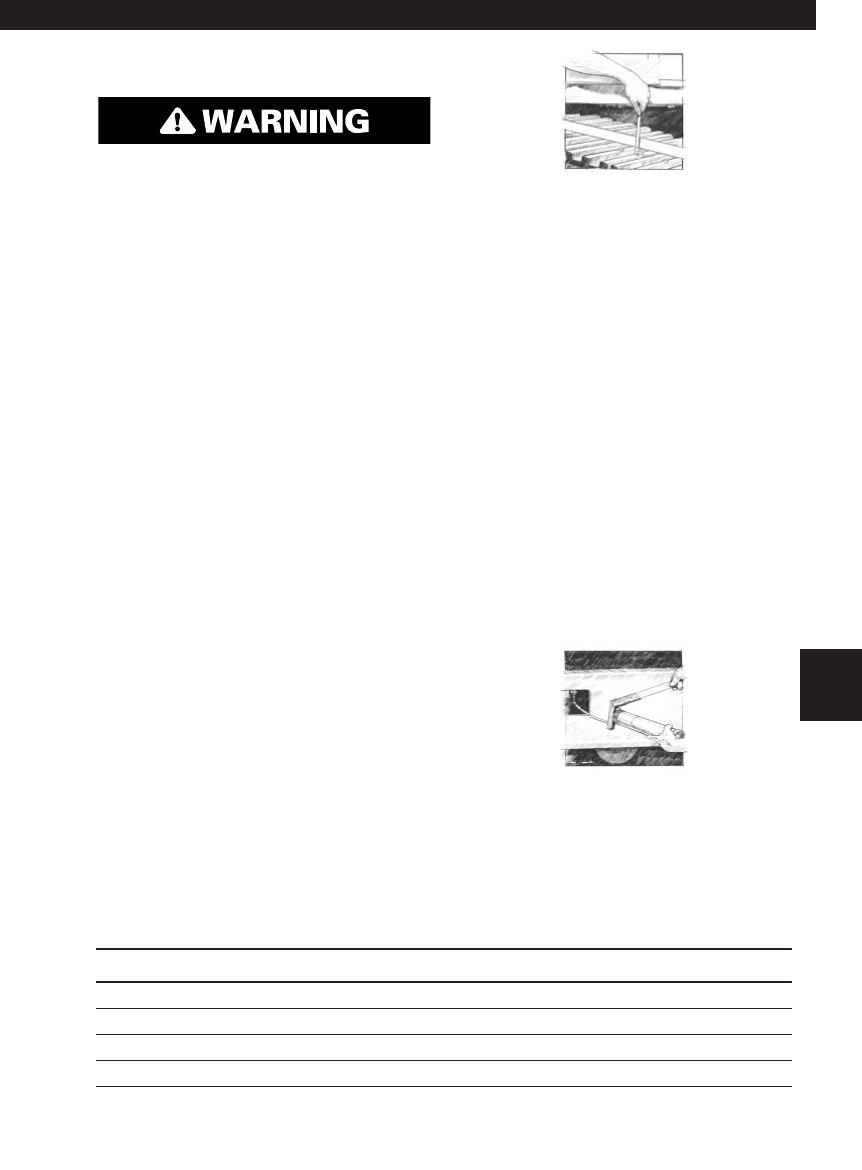

Excavator Track Adjustment

Grease is under high pressure.

Grease coming out of the relief valve

under pressure can penetrate the body

causing injury or death.

Do not watch the relief valve to see if

grease is escaping. Watch the track or

track adjustment cylinder to see if the

track is being loosened.

1 Operate the machine in the direction of

the idlers.

2 Stop with one track pin directly over the

front carrier roller. Park the machine and

turn off the engine.

3 Place a tight line or straight edge on top

of the grousers between the front

carrier roller and idler.

Measure the distance from the straight

edge to the grouser tip at the lowest

point of sag, midway between the front

carrier roller and idler.

Refer to the chart at right to determine

the correct sag for each model.

4 If the track is too tight, loosen it by

opening the relief valve and allowing

grease to escape.

5 Tighten track by adding grease at the

hydraulic fill and relief valve. Travel in

forward and reverse to equalize tension

throughout the track. Then reinspect

adjustment.

497

COMPONENTS

Excavators

Proper Track Sag

MODEL Minimum Target Maximum

All 300 Family series excavators 1.6" (40 mm) 1.85" (47.5 mm) 2.1" (55 mm)

All 200 Family series excavators 1.0" (25 mm) 1.3" (32.5 mm) 1.5" (40 mm)

All E Family series excavators 1.6" (40 mm) 1.85" (47.5 mm) 2.1" (55 mm)

5080, 5090B 1.6" (40 mm) 1.85" (47.5 mm) 2.1" (55 mm)
