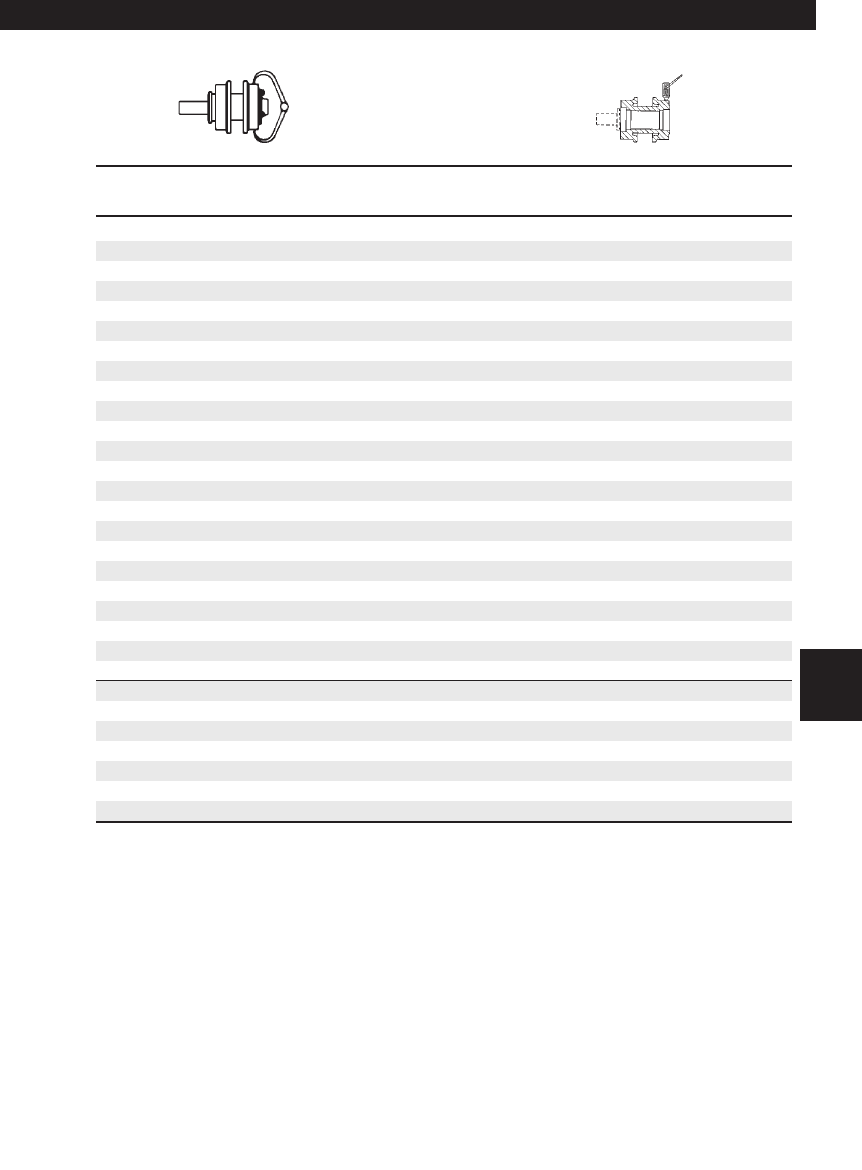

Carrier Rollers

Caliper Ultrasonic

Inches (mm) % Worn Inches (mm)

7.48 (190.0) 0 1.41 (35.8)

7.44 (189.0) 5 1.39 (35.3)

7.40 (188.0) 10 1.37 (34.8)

7.36 (187.0) 15 1.35 (34.3)

7.32 (186.0) 20 1.33 (33.8)

7.28 (185.0) 25 1.31 (33.3)

7.24 (184.0) 30 1.29 (32.8)

7.20 (183.0) 35 1.27 (32.3)

7.16 (182.0) 40 1.25 (31.8)

7.12 (181.0) 45 1.23 (31.2)

7.08 (180.0) 50 1.21 (30.7)

7.04 (179.0) 55 1.19 (30.2)

7.00 (178.0) 60 1.17 (29.7)

6.96 (177.0) 65 1.15 (29.2)

6.92 (176.0) 70 1.13 (28.7)

6.88 (175.0) 75 1.11 (28.2)

6.84 (173.5) 80 1.09 (27.7)

6.80 (172.5) 85 1.07 (27.2)

6.76 (171.5) 88 1.05 (26.7)

6.72 (170.5) 91 1.03 (26.2)

6.68 (169.5) 94 1.01 (25.7)

6.64 (168.5) 97 0.99 (25.1)

6.60 (167.5) 100 0.97 (24.6)

6.56 (166.5) 103 0.95 (24.1)

6.52 (165.5) 106 0.93 (23.6)

6.48 (164.5) 109 0.91 (23.1)

6.44 (163.5) 112 0.89 (22.6)

6.40 (162.5) 115 0.87 (22.1)

6.36 (161.5) 118 0.85 (21.6)

6.32 (160.5) 121 0.83 (21.1)

Undercarriage Code: 635, 641, 650, 660, 662

581

Excavators

365, 375, 385, 5080, 5090 — 10.25" (260.4 mm)

10.Exc.(488-607) 7/14/03 7:33 AM Page 581
