Caterpillar Custom Track Service Handbook Page 357

Service Handbook

Page of 826

/ 826

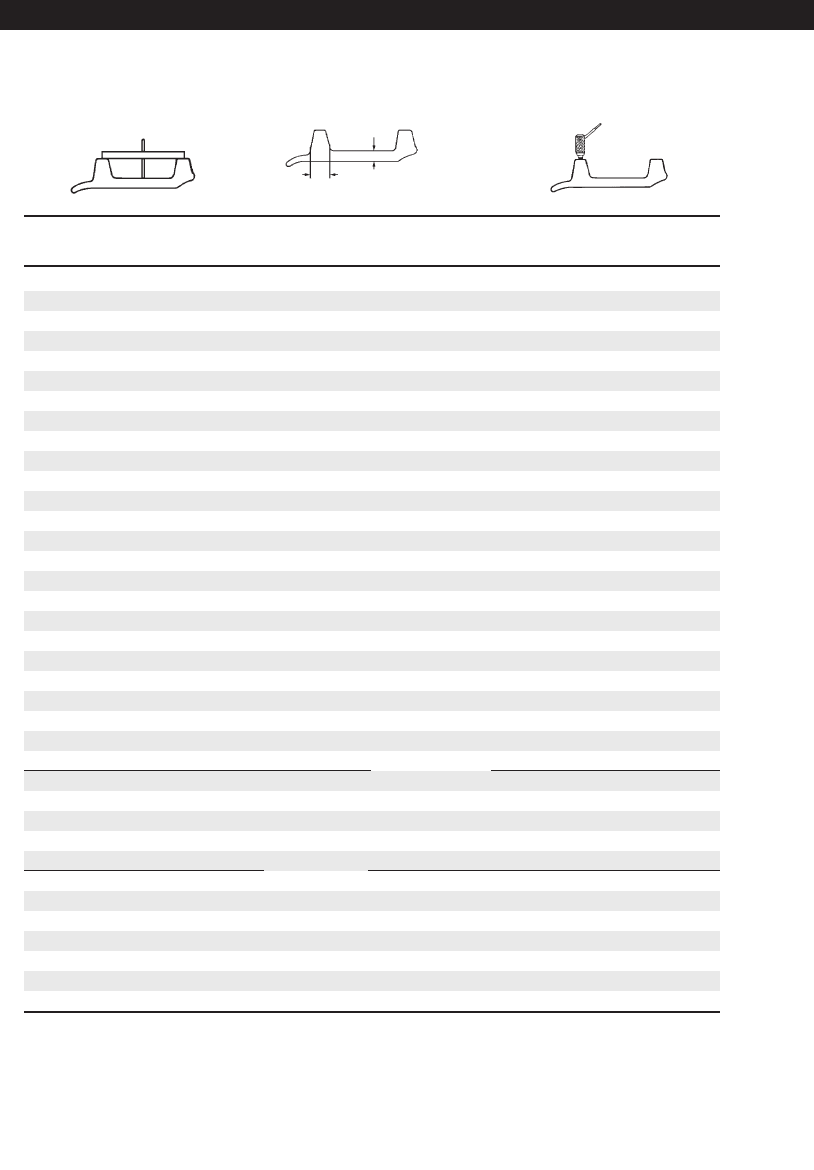

Track Shoes

Double Grouser

Depth Gauge High Impact Low Impact Ultrasonic

Inches (mm) % Worn % Worn Inches (mm)

1.95 (49.5) 0 0 2.55 (64.8)

1.90 (48.5) 5 4 2.50 (63.5)

1.85 (47.0) 10 8 2.45 (62.2)

1.80 (45.5) 15 12 2.40 (61.0)

1.75 (44.5) 20 16 2.35 (59.7)

1.70 (43.0) 24 20 2.30 (58.4)

1.65 (42.0) 28 24 2.25 (57.2)

1.60 (40.5) 32 28 2.20 (55.9)

1.55 (39.5) 36 32 2.15 (54.6)

1.50 (38.0) 40 36 2.10 (53.3)

1.45 (37.0) 44 40 2.05 (52.1)

1.40 (35.5) 48 44 2.00 (50.8)

1.35 (34.5) 52 48 1.95 (49.5)

1.30 (33.0) 56 52 1.90 (48.3)

1.25 (32.0) 60 55 1.85 (47.0)

1.20 (30.5) 64 58 1.80 (45.7)

1.15 (29.0) 68 61 1.75 (44.5)

1.10 (28.0) 72 64 1.70 (43.2)

1.05 (26.5) 76 67 1.65 (41.9)

1.00 (25.5) 80 70 1.60 (40.6)

0.95 (24.0) 84 73 1.55 (39.4)

0.90 (23.0) 88 76 1.50 (38.1)

0.85 (21.5) 92 79 1.45 (36.8)

0.80 (20.5) 96 82 1.40 (35.6)

0.75 (19.0) 100 85 1.35 (34.3)

0.70 (18.0) 104 88 1.30 (33.0)

0.65 (16.5) 108 91 1.25 (31.8)

0.60 (15.0) 112 94 1.20 (30.5)

0.55 (14.0) 116 97 1.15 (29.2)

0.50 (12.5) 120 100 1.10 (27.9)

0.45 (11.5) 103 1.05 (26.7)

0.40 (10.0) 106 1.00 (25.4)

0.35 (9.0) 109 0.95 (24.1)

0.30 (7.5) 112 0.90 (22.9)

0.25 (6.5) 115 0.85 (21.6)

0.20 (5.0) 118 0.80 (20.3)

0.15 (4.0) 121 0.75 (19.1)

Undercarriage Code: 161, 165, 381, 383

356

D7, 977, 571, 572 — 8.50" (215.9 mm)

Low Sprocket Machines

.61" (15.5 mm)

1.42" (36 mm)
