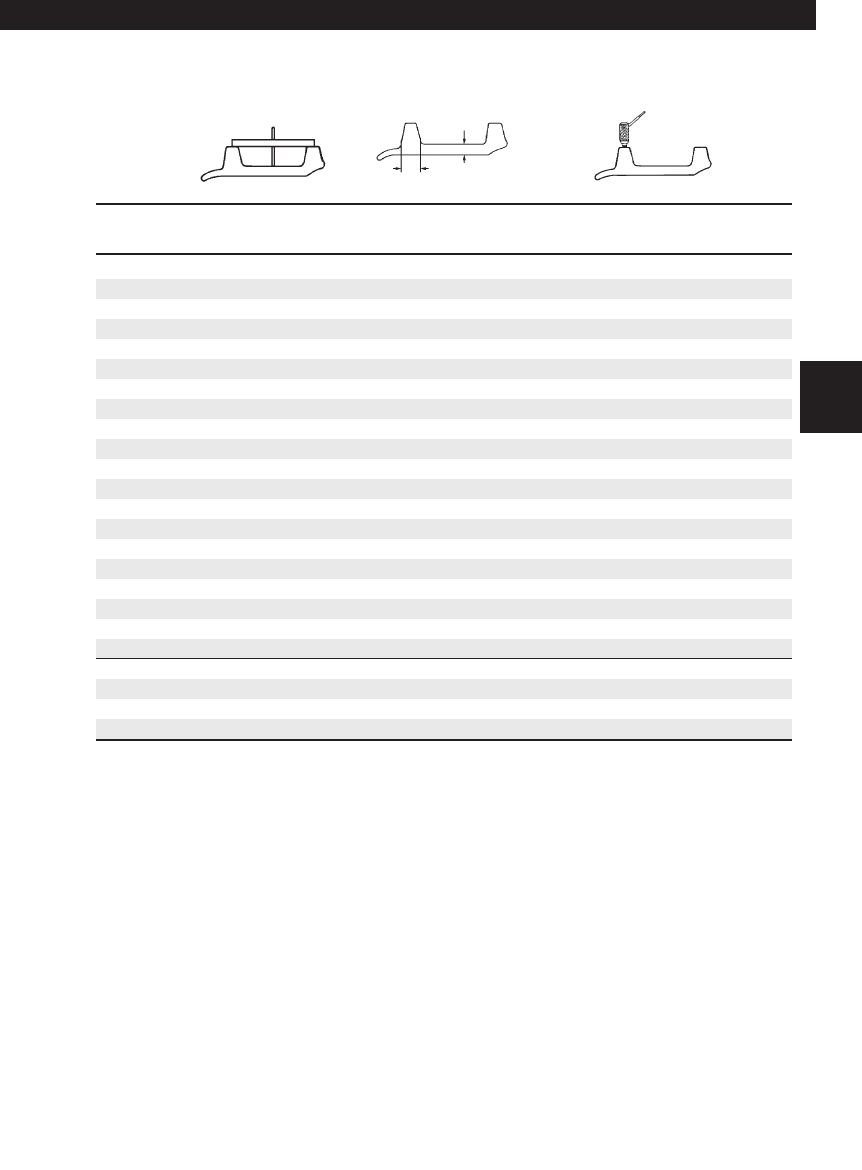

Track Shoes

Double Grouser

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

1.45 (37.0) 0 1.90 (48.3)

1.40 (35.5) 6 1.85 (47.0)

1.35 (34.5) 12 1.80 (45.7)

1.30 (33.0) 18 1.75 (44.5)

1.25 (32.0) 24 1.70 (43.2)

1.20 (30.5) 30 1.65 (41.9)

1.15 (29.0) 35 1.60 (40.6)

1.10 (28.0) 40 1.55 (39.4)

1.05 (26.5) 45 1.50 (38.1)

1.00 (25.5) 50 1.45 (36.8)

0.95 (24.0) 55 1.40 (35.6)

0.90 (23.0) 60 1.35 (34.3)

0.85 (21.5) 65 1.30 (33.0)

0.80 (20.5) 70 1.25 (31.8)

0.75 (19.0) 75 1.20 (30.5)

0.70 (18.0) 80 1.15 (29.2)

0.65 (16.5) 85 1.10 (27.9)

0.60 (15.0) 90 1.05 (26.7)

0.55 (14.0) 95 1.00 (25.4)

0.50 (12.5) 100 0.95 (24.1)

0.45 (11.5) 105 0.90 (22.9)

0.40 (10.0) 110 0.85 (21.6)

0.35 (9.0) 115 0.80 (20.3)

0.30 (7.5) 120 0.75 (19.1)

Undercarriage Code:

134, 13402, 135, 13502, 1351, 1352, 1353,

13532, 1354, 1355, 307, 3071, 3072, 3073

301

D5G, D5C, 939 — 6.75" (171.5 mm)

Low Sprocket Machines

.43" (11 mm)

1.02" (26 mm)

05.Low(246-325) 7/11/03 3:52 PM Page 301
