Track Shoe Supports for Forestry

Applications

Design Features — Forestry applications

for Hydraulic Excavators generally involve

high impact and severe underfoot condi-

tions. Full length track shoe supports

mounted to the track roller frame are rec-

ommended to limit the torsional loads

experienced by the link assembly.

As the machine rides over objects such as

rocks or stumps, the track shoe deflects

and the track chain begins to twist. With

track shoe supports, the shoes contact the

support and prevent further twisting of the

chain. These supports limit the loads going

into the link assembly and significantly

reduce the occurrence of link cracking and

track pin walking.

The contact between the shoe support and

the leading edge of the track shoes results in

accelerated wear on the leading edge of the

shoes. However, the gains made in link

assembly life more than offset the detrimen-

tal effects of leading edge wear on the shoes.

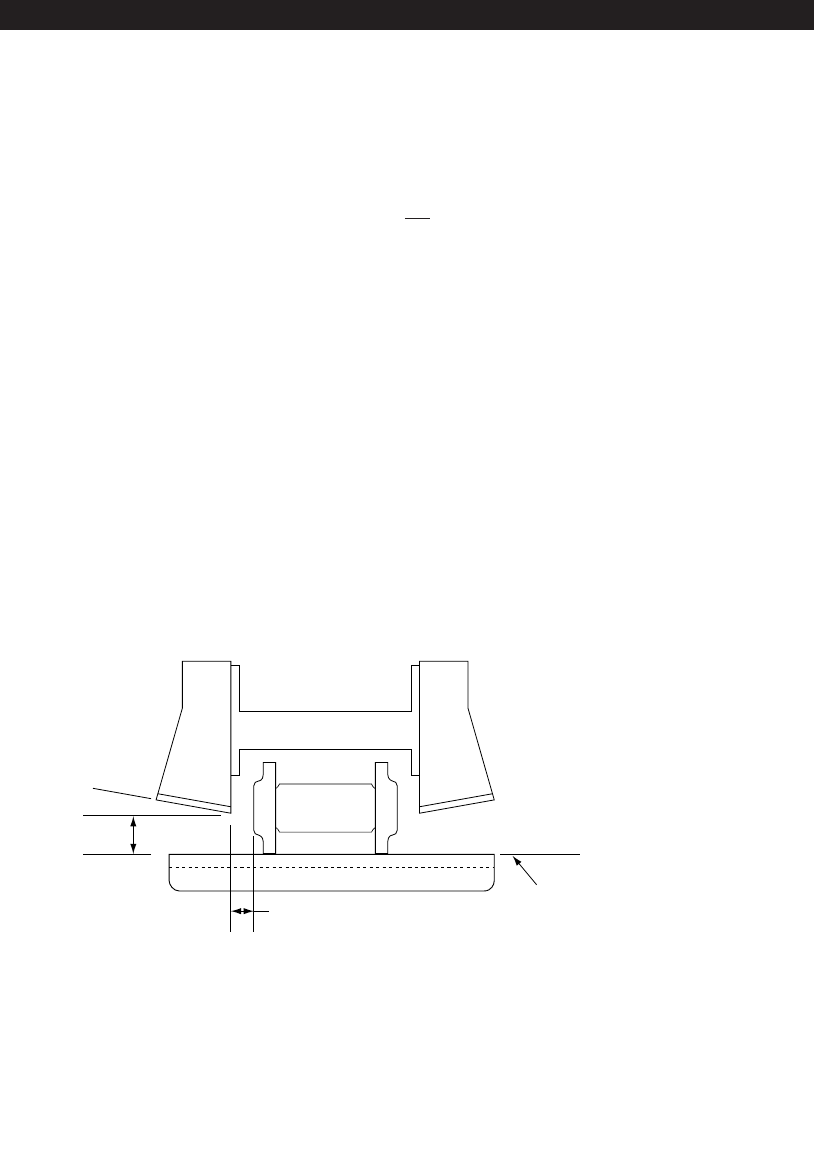

Installation Guidelines — To provide

proper performance of the track shoe

supports, recommended installation dimen-

sions are shown below. The dimension

shown in the illustration for the clearance

between the support and the track shoe is

the dimension to the shoe plate surface. (It

is not

the distance to the leading edge of

the shoe.)

If the supports are located too far from the

shoe surface, they will not provide the

proper protection for the link assembly. If

the supports are too close to the shoes,

high shoe wear and high friction (i.e.

drawbar reduction) will occur.

Maintenance — When link assemblies

are replaced, it is essential to inspect the

track shoe supports and to rebuild them to

the original dimensions if required.

Operating new link assemblies with signif-

icantly worn or damaged shoe supports

will result in reduced link assembly life.

Clearance dimensions should be checked

after the new link assemblies are installed.

496

COMPONENTS

Excavators

3 to 5°

20 mm

Track Shoe Plate

Surface15 mm

(Pin to Guard Clearance)

10.Exc.(488-607) 7/14/03 7:32 AM Page 496
