Caterpillar Custom Track Service Handbook Page 270

Service Handbook

Page of 826

/ 826

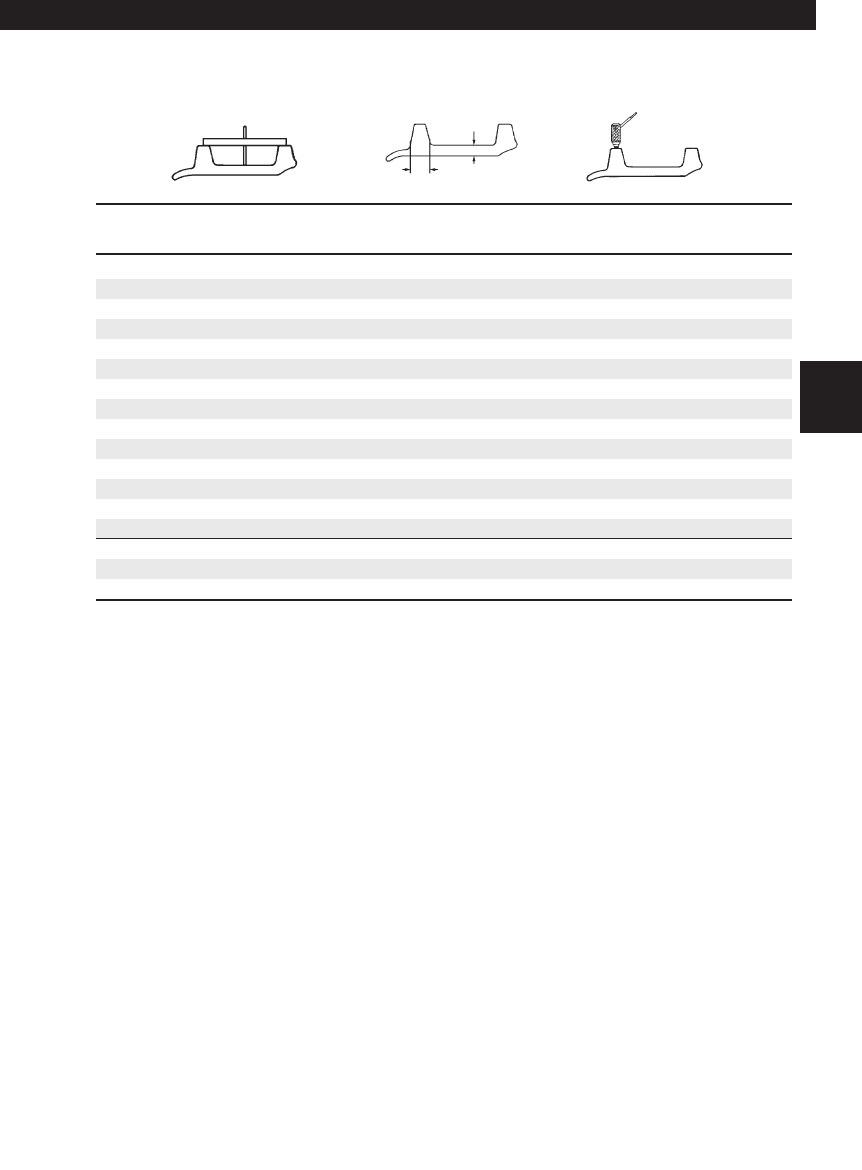

Track Shoes

Double Grouser

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

1.15 (29.0) 0 1.50 (38.1)

1.10 (28.0) 8 1.45 (36.8)

1.05 (26.5) 16 1.40 (35.6)

1.00 (25.5) 24 1.35 (34.3)

0.95 (24.0) 32 1.30 (33.0)

0.90 (23.0) 40 1.25 (31.8)

0.85 (21.5) 48 1.20 (30.5)

0.80 (20.5) 56 1.15 (29.2)

0.75 (19.0) 64 1.10 (27.9)

0.70 (18.0) 72 1.05 (26.7)

0.65 (16.5) 79 1.00 (25.4)

0.60 (15.0) 86 0.95 (24.1)

0.55 (14.0) 93 0.90 (22.9)

0.50 (12.5) 100 0.85 (21.6)

0.45 (11.5) 107 0.80 (20.3)

0.40 (10.0) 114 0.75 (19.1)

0.35 (9.0) 121 0.70 (17.8)

Undercarriage Code: 101, 102, 1021, 119, 1191, 301, 302, 3021, 303, 3031, 305, 306, 3061

269

D3, 931, 933, 935, D4B, D4C — 6.125" (155.6 mm)

Low Sprocket Machines

.37" (9.5 mm)

.79" (20 mm)
