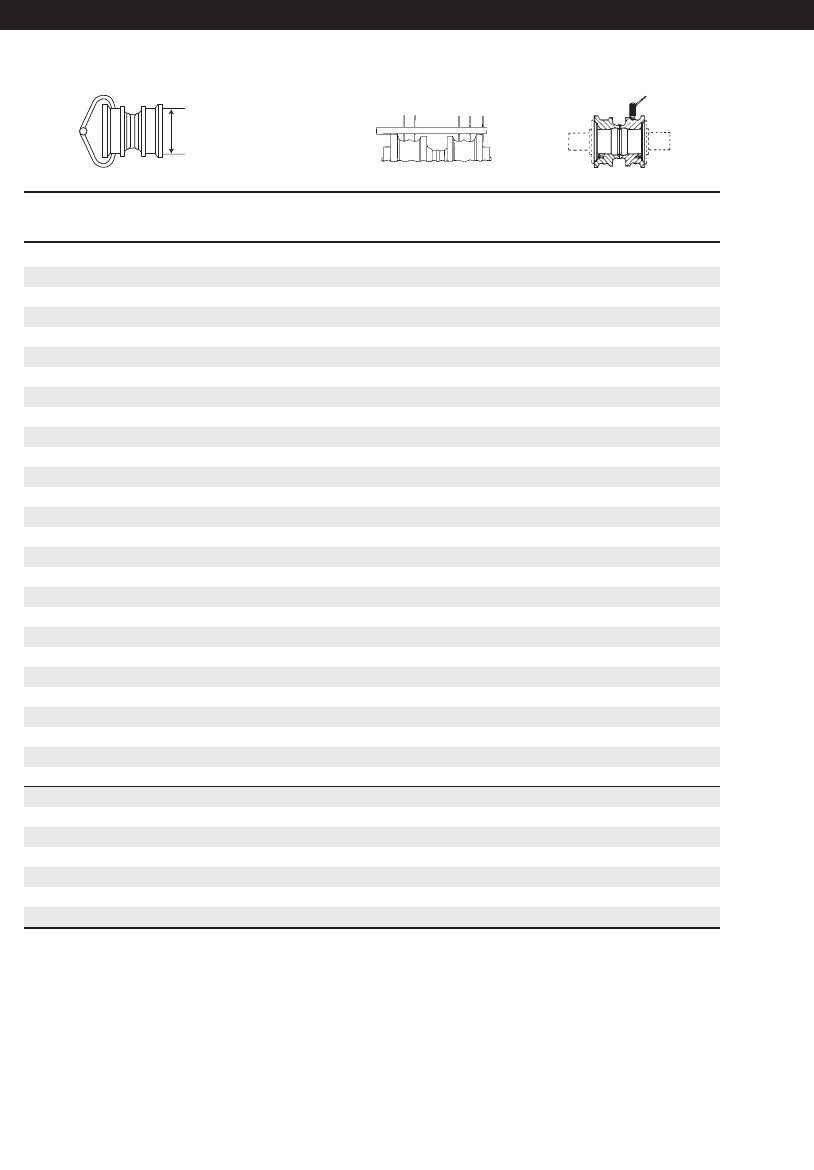

Track Rollers

Do not use for 983

Caliper Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm) Inches (mm)

10.02 (254.5) 0 0.86 (22.0) 2.38 (60.5)

9.98 (253.5) 5 0.88 (22.5) 2.36 (59.9)

9.94 (252.5) 10 0.90 (23.0) 2.34 (59.4)

9.90 (251.5) 15 0.92 (23.5) 2.32 (58.9)

9.86 (250.5) 20 0.94 (24.0) 2.30 (58.4)

9.82 (249.5) 25 0.96 (24.5) 2.28 (57.9)

9.78 (248.5) 30 0.98 (25.0) 2.26 (57.4)

9.74 (247.5) 35 1.00 (25.5) 2.24 (56.9)

9.70 (246.5) 40 1.02 (26.0) 2.22 (56.4)

9.66 (245.5) 45 1.04 (26.5) 2.20 (55.9)

9.62 (244.5) 50 1.06 (27.0) 2.18 (55.4)

9.58 (243.5) 55 1.08 (27.5) 2.16 (54.9)

9.54 (242.5) 58 1.10 (28.0) 2.14 (54.4)

9.50 (241.5) 61 1.12 (28.5) 2.12 (53.8)

9.46 (240.5) 64 1.14 (29.0) 2.10 (53.3)

9.42 (239.5) 67 1.16 (29.5) 2.08 (52.8)

9.38 (238.5) 70 1.18 (30.0) 2.06 (52.3)

9.34 (237.0) 73 1.20 (30.5) 2.04 (51.8)

9.30 (236.0) 76 1.22 (31.0) 2.02 (51.3)

9.26 (235.0) 79 1.24 (31.5) 2.00 (50.8)

9.22 (234.0) 82 1.26 (32.0) 1.98 (50.3)

9.18 (233.0) 85 1.28 (32.5) 1.96 (49.8)

9.14 (232.0) 88 1.30 (33.0) 1.94 (49.3)

9.10 (231.0) 91 1.32 (33.5) 1.92 (48.8)

9.06 (230.0) 94 1.34 (34.0) 1.90 (48.3)

9.02 (229.0) 97 1.36 (34.5) 1.88 (47.8)

8.98 (228.0) 100 1.38 (35.0) 1.86 (47.2)

8.94 (227.0) 103 1.40 (35.5) 1.84 (46.7)

8.90 (226.0) 106 1.42 (36.0) 1.82 (46.2)

8.86 (225.0) 109 1.44 (36.5) 1.80 (45.7)

8.82 (224.0) 112 1.46 (37.0) 1.78 (45.2)

8.78 (223.0) 115 1.48 (37.5) 1.76 (44.7)

8.74 (222.0) 118 1.50 (38.0) 1.74 (44.2)

8.70 (221.0) 121 1.52 (38.5) 1.72 (43.7)

Flange diameter is 11.75" (298.5 mm)

Undercarriage Code: 175

376

D8, 983 — 9.00" (228.6 mm)

Low Sprocket Machines

07.Low(348-387) 7/14/03 7:30 AM Page 376
