Caterpillar Custom Track Service Handbook Page 305

Service Handbook

Page of 826

/ 826

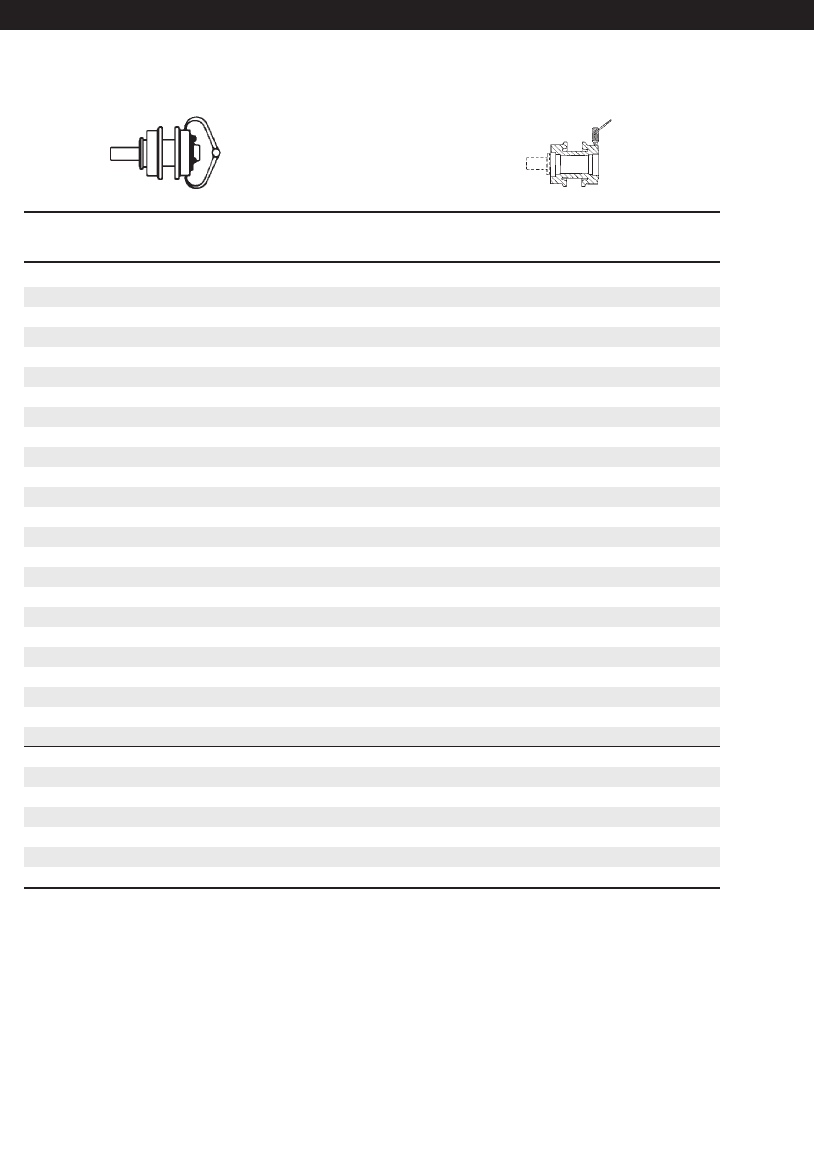

Carrier Rollers

Use with Rotating Bushing Track

108-0947 & 48 Links

Caliper Ultrasonic

Inches (mm) % Worn Inches (mm)

6.26 (159.0) 0 1.63 (41.4)

6.20 (157.5) 5 1.60 (40.6)

6.14 (156.0) 10 1.57 (39.9)

6.08 (154.5) 15 1.54 (39.1)

6.02 (153.0) 20 1.51 (38.4)

5.96 (151.5) 25 1.48 (37.6)

5.90 (150.0) 30 1.45 (36.8)

5.84 (148.5) 35 1.42 (36.1)

5.78 (147.0) 40 1.39 (35.3)

5.72 (145.5) 45 1.36 (34.5)

5.66 (144.0) 50 1.33 (33.8)

5.60 (142.0) 55 1.30 (33.0)

5.54 (140.5) 60 1.27 (32.3)

5.48 (139.0) 65 1.24 (31.5)

5.42 (137.5) 70 1.21 (30.7)

5.36 (136.0) 75 1.18 (30.0)

5.30 (134.5) 79 1.15 (29.2)

5.24 (133.0) 82 1.12 (28.4)

5.18 (131.5) 85 1.09 (27.7)

5.12 (130.0) 88 1.06 (26.9)

5.06 (128.5) 91 1.03 (26.2)

5.00 (127.0) 94 1.00 (25.4)

4.94 (125.5) 97 0.97 (24.6)

4.88 (124.0) 100 0.94 (23.9)

4.82 (122.5) 103 0.91 (23.1)

4.76 (121.0) 106 0.88 (22.4)

4.70 (119.5) 109 0.85 (21.6)

4.64 (118.0) 112 0.82 (20.8)

4.58 (116.5) 115 0.79 (20.1)

4.52 (115.0) 118 0.76 (19.3)

4.46 (113.5) 121 0.73 (18.5)

Undercarriage Code: 1351, 1352, 1354, 1355, 3072, 3073

304

D5G, D5C, 939 — 6.75" (171.5 mm)

Low Sprocket Machines

05.Low(246-325) 7/11/03 3:52 PM Page 304
