Caterpillar Custom Track Service Handbook Page 656

Service Handbook

Page of 826

/ 826

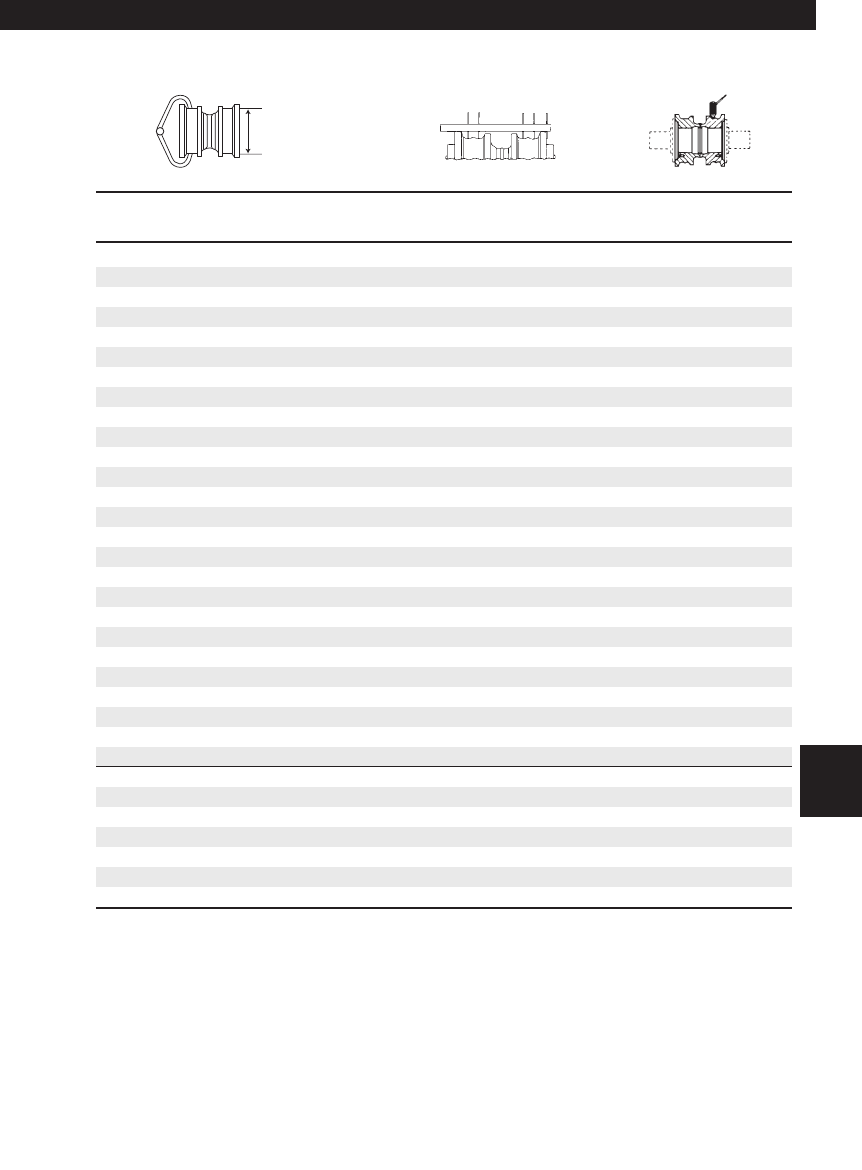

Track Rollers

7K Rim

Caliper Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm) Inches (mm)

8.00 (203.0) 0 0.60 (15.0) 2.00 (50.8)

7.98 (202.5) 4 0.61 (15.5) 1.99 (50.5)

7.96 (202.0) 8 0.62 (15.5) 1.98 (50.3)

7.94 (201.5) 12 0.63 (16.0) 1.97 (50.0)

7.92 (201.0) 16 0.64 (16.5) 1.96 (49.8)

7.90 (200.5) 20 0.65 (16.5) 1.95 (49.5)

7.88 (200.0) 24 0.66 (17.0) 1.94 (49.3)

7.86 (199.5) 28 0.67 (17.0) 1.93 (49.0)

7.84 (199.0) 32 0.68 (17.5) 1.92 (48.8)

7.82 (198.5) 36 0.69 (17.5) 1.91 (48.5)

7.80 (198.0) 40 0.70 (18.0) 1.90 (48.3)

7.78 (197.5) 44 0.71 (18.0) 1.89 (48.0)

7.76 (197.0) 48 0.72 (18.5) 1.88 (47.8)

7.74 (196.5) 52 0.73 (18.5) 1.87 (47.5)

7.72 (196.0) 56 0.74 (19.0) 1.86 (47.2)

7.70 (195.5) 60 0.75 (19.0) 1.85 (47.0)

7.68 (195.0) 64 0.76 (19.5) 1.84 (46.7)

7.66 (194.5) 68 0.77 (19.5) 1.83 (46.5)

7.64 (194.0) 72 0.78 (20.0) 1.82 (46.2)

7.62 (193.5) 76 0.79 (20.0) 1.81 (46.0)

7.60 (193.0) 80 0.80 (20.5) 1.80 (45.7)

7.58 (192.5) 84 0.81 (20.5) 1.79 (45.5)

7.56 (192.0) 88 0.82 (21.0) 1.78 (45.2)

7.54 (191.5) 92 0.83 (21.0) 1.77 (45.0)

7.52 (191.0) 96 0.84 (21.5) 1.76 (44.7)

7.50 (190.5) 100 0.85 (21.5) 1.75 (44.5)

7.48 (190.0) 103 0.86 (22.0) 1.74 (44.2)

7.46 (189.5) 106 0.87 (22.0) 1.73 (43.9)

7.44 (189.0) 109 0.88 (22.5) 1.72 (43.7)

7.42 (188.5) 112 0.89 (22.5) 1.71 (43.4)

7.40 (188.0) 115 0.90 (23.0) 1.70 (43.2)

7.38 (187.5) 118 0.91 (23.0) 1.69 (42.9)

7.36 (187.0) 121 0.92 (23.5) 1.68 (42.7)

Flange diameter is 9.21" (234 mm)

Undercarriage Code: 450

655

225 — 6.75" (171.5 mm)

Excavators

11.Exc.(608-709) 7/14/03 7:33 AM Page 655
