Caterpillar Custom Track Service Handbook Page 697

Service Handbook

Page of 826

/ 826

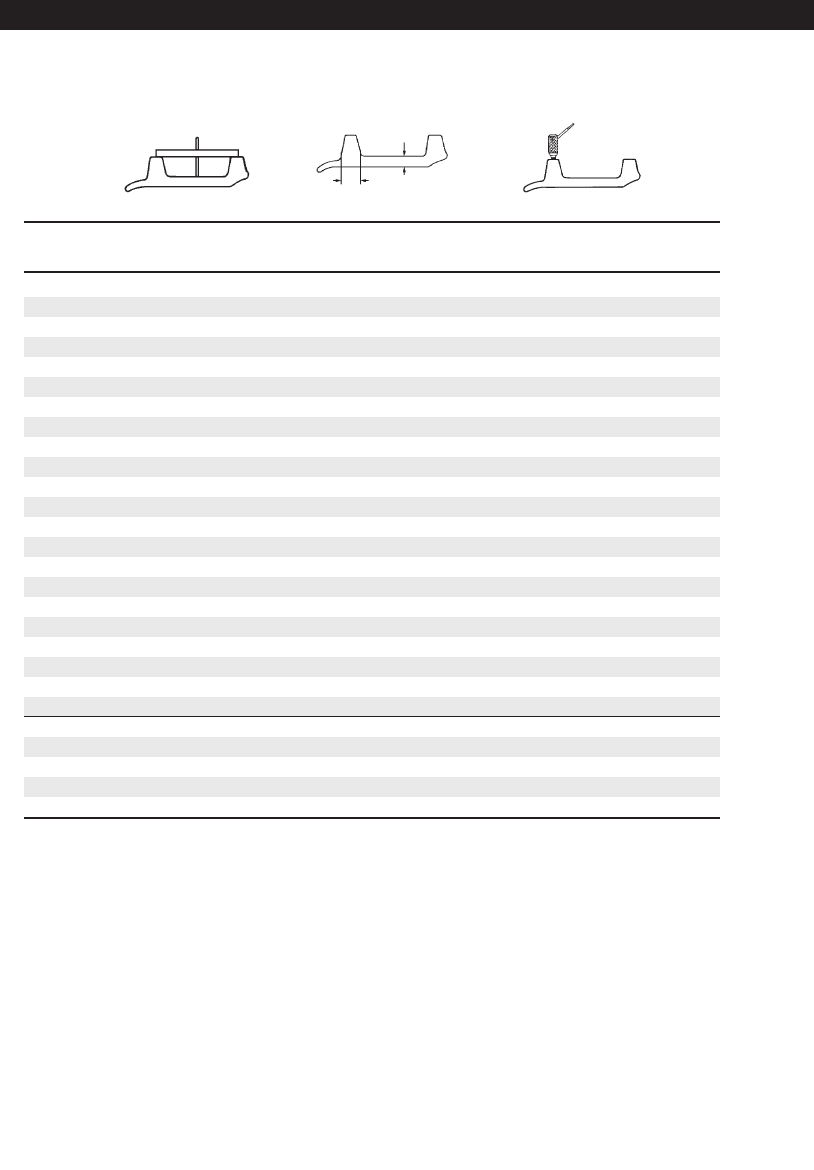

Track Shoes

Double Grouser

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

1.90 (48.5) 0 2.70 (68.6)

1.85 (47.0) 5 2.65 (67.3)

1.80 (45.5) 10 2.60 (66.0)

1.75 (44.5) 15 2.55 (64.8)

1.70 (43.0) 20 2.50 (63.5)

1.65 (42.0) 25 2.45 (62.2)

1.60 (40.5) 30 2.40 (61.0)

1.55 (39.5) 35 2.35 (59.7)

1.50 (38.0) 40 2.30 (58.4)

1.45 (37.0) 45 2.25 (57.2)

1.40 (35.5) 50 2.20 (55.9)

1.35 (34.5) 55 2.15 (54.6)

1.30 (33.0) 60 2.10 (53.3)

1.25 (32.0) 65 2.05 (52.1)

1.20 (30.5) 70 2.00 (50.8)

1.15 (29.0) 75 1.95 (49.5)

1.10 (28.0) 80 1.90 (48.3)

1.05 (26.5) 84 1.85 (47.0)

1.00 (25.5) 88 1.80 (45.7)

0.95 (24.0) 92 1.75 (44.5)

0.90 (23.0) 96 1.70 (43.2)

0.85 (21.5) 100 1.65 (41.9)

0.80 (20.5) 104 1.60 (40.6)

0.75 (19.0) 108 1.55 (39.4)

0.70 (18.0) 112 1.50 (38.1)

0.65 (16.5) 116 1.45 (36.8)

0.60 (15.0) 120 1.40 (35.6)

Undercarriage Code: 491, 492, 493

696

245 — 10.25" (260.4 mm)

Excavators

.81" (20.5 mm)

1.63" (41.5 mm)

11.Exc.(608-709) 7/14/03 7:33 AM Page 696
