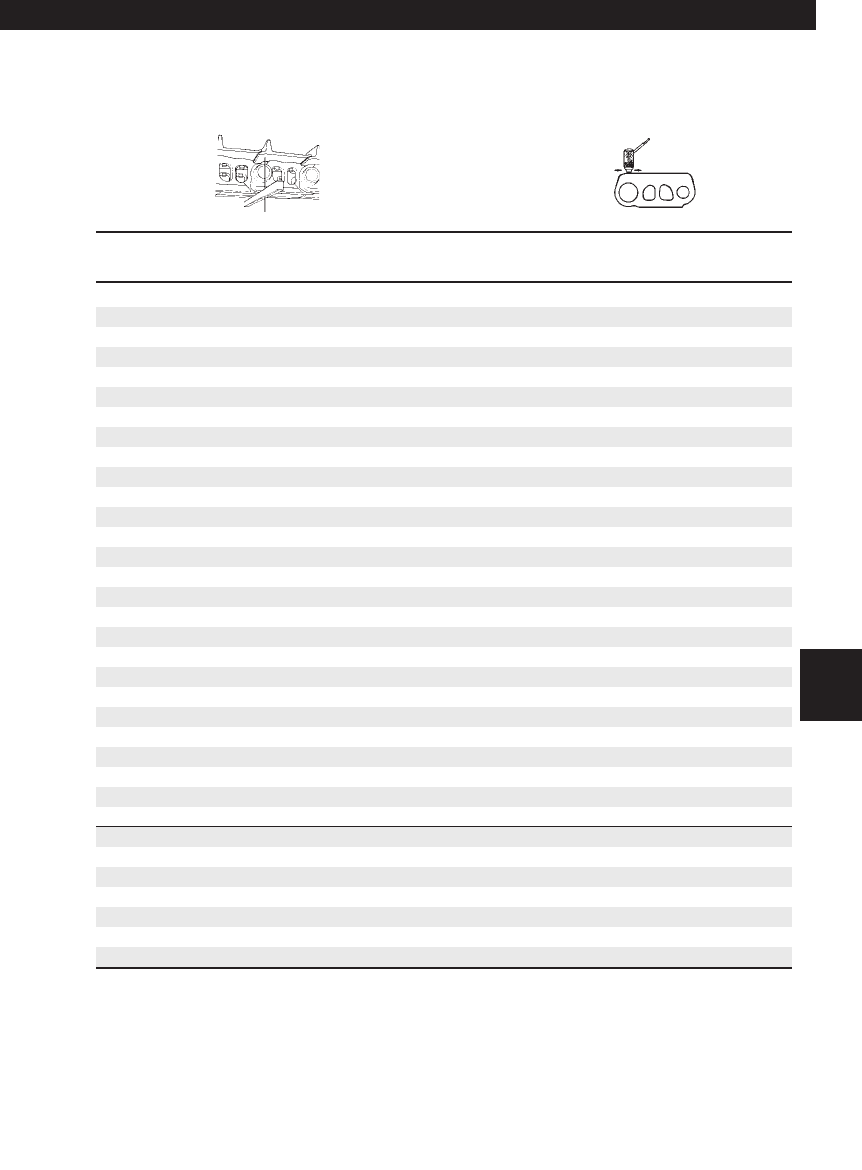

Track Links

Heavy Duty Track

8E7405 & 06

Use only for 325 FM

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

5.19 (132.0) 0 1.69 (42.9)

5.17 (131.5) 4 1.67 (42.4)

5.15 (131.0) 8 1.65 (41.9)

5.13 (130.5) 12 1.63 (41.4)

5.11 (130.0) 16 1.61 (40.9)

5.09 (129.5) 20 1.59 (40.4)

5.07 (129.0) 24 1.57 (39.9)

5.05 (128.5) 28 1.55 (39.4)

5.03 (128.0) 32 1.53 (38.9)

5.01 (127.5) 36 1.51 (38.4)

4.99 (126.5) 40 1.49 (37.8)

4.97 (126.0) 44 1.47 (37.3)

4.95 (125.5) 48 1.45 (36.8)

4.93 (125.0) 52 1.43 (36.3)

4.91 (124.5) 56 1.41 (35.8)

4.89 (124.0) 60 1.39 (35.3)

4.87 (123.5) 64 1.37 (34.8)

4.85 (123.0) 68 1.35 (34.3)

4.83 (122.5) 72 1.33 (33.8)

4.81 (122.0) 76 1.31 (33.3)

4.79 (121.5) 80 1.29 (32.8)

4.77 (121.0) 84 1.27 (32.3)

4.75 (120.5) 88 1.25 (31.8)

4.73 (120.0) 91 1.23 (31.2)

4.71 (119.5) 94 1.21 (30.7)

4.69 (119.0) 97 1.19 (30.2)

4.67 (118.5) 100 1.17 (29.7)

4.65 (118.0) 103 1.15 (29.2)

4.63 (117.5) 106 1.13 (28.7)

4.61 (117.0) 109 1.11 (28.2)

4.59 (116.5) 112 1.09 (27.7)

4.57 (116.0) 115 1.07 (27.2)

4.55 (115.5) 118 1.05 (26.7)

4.53 (115.0) 121 1.03 (26.2)

Undercarriage Code: 592

531

325 FM — 8.00" (203.2 mm)

Excavators

10.Exc.(488-607) 7/14/03 7:32 AM Page 531
