Sprocket Wear Patterns

The new sprocket reuse gauge makes

interpretation of sprocket tooth profile

wear patterns much easier. Also, sprocket

wear patterns should now be used only to

help determine the cause and effect of cor-

responding bushing wear patterns since

the gauge will indicate sprocket reuse.

As noted in the previous discussion the

sprocket reuse gauge ignores sprocket

tooth tip condition as the tooth tip is not a

criteria for remaining functional strength

and wear life of the sprocket or how it will

adversely affect the bushing after reuse.

The sprocket gauge locates low on the

tooth side, as wear here determines (1) the

remaining strength in the tooth to support

further bushing wear in the driving portion

of the tooth and (2) the degree of expected

sliding the bushing will be expected to

incur thus affecting its expected wear rate.

The wear patterns shown here should not

be assumed to be a result of sprocket wear

characteristics alone, and therefore corre-

sponding bushing wear pattern should be

studied. See the section entitled “Sealed

and Lubricated Track Pins & Bushings.”

Also, since some sprocket wear patterns,

(particularly on the outside surfaces and

tips that face the links) are a result of

snaky track guiding and alignment

problems, the sections covering those situ-

ations should also be consulted.

These are the most common profile wear

patterns found with Sealed and Sealed and

Lubricated Track as identified in each case.

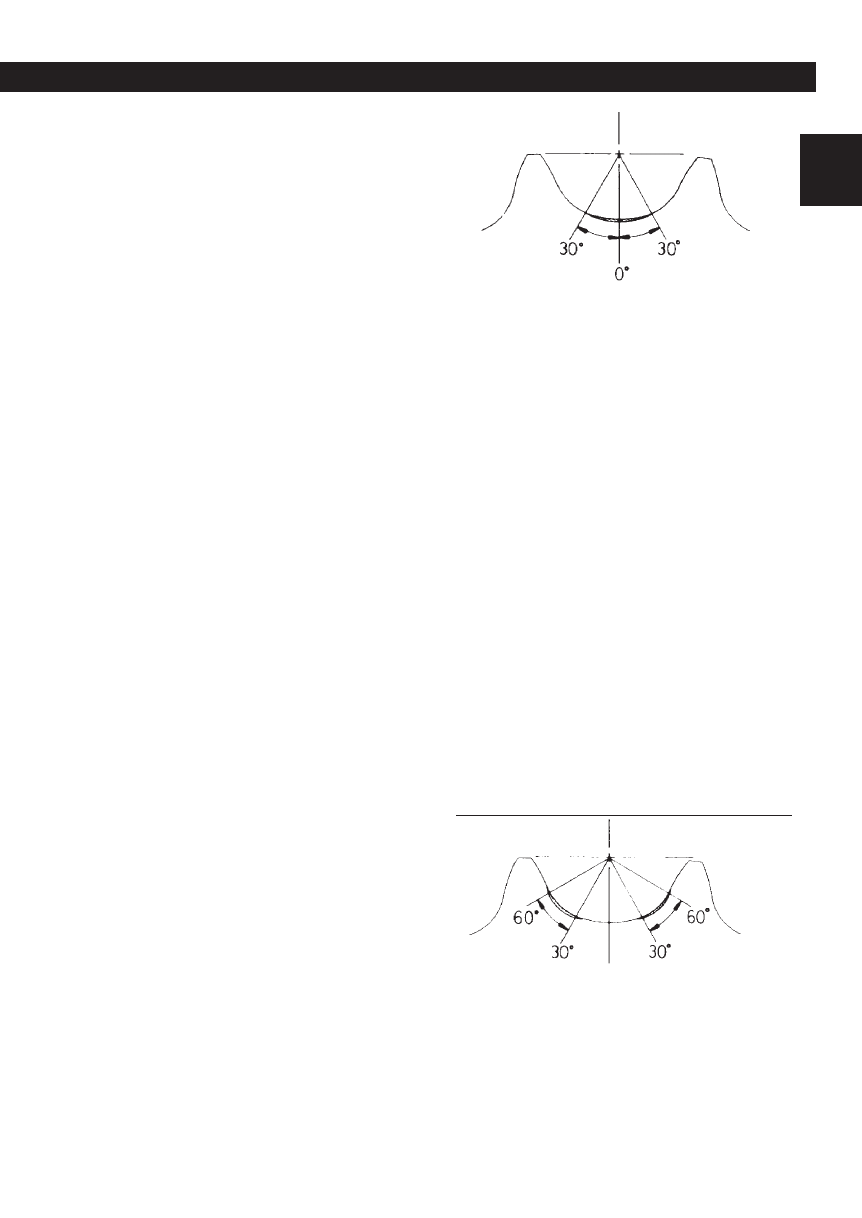

Root Wear

(0-30 degrees from vertical) is a normal

expected wear pattern of Sealed and

Lubricated Track in the absence of severe

packing and with Sealed Track prior to

pitch extension.

CAUSES: Sliding contact with vertical

position of bushing during forward to

reverse direction changes and due to pitch

mismatch of minor packing effect and/or

advanced component wear.

ACCELERATORS: See “Bushing Verti-

cal Position” wear.

EFFECT: None on sprocket itself. In

absence of other wear patterns, improves

sprocket reusability.

REMEDIES: Eliminate or reduce control-

lable variables shown under vertical

position bushing wear. Objective should

be to extend bushing life, not sprocket life

in this position.

Reverse and/or Forward

Drive Side Wear

(30-60 degrees from vertical) is a normal

expected wear pattern of Sealed and

Lubricated Track with moderate packing

and with Sealed Track with track pitch

extension with or without packing.
