Track Adjustment

Incorrectly adjusted track can cost you

money both in accelerated undercarriage

wear and downtime. If the track is too

tight, damaging non-productive loads are

placed on the undercarriage and its manual

components.

Tight track accelerates track wear and

reduces tractor drawbar horsepower. Adjust-

ment procedures take only a few minutes

and require only one person.

When adjusting your track on any Caterpillar

machine:

1. Always adjust the track in the working

area.

2. Do not try to squeeze any packing mater-

ial from in between the track.

3. Never loosen the relief valve more than

one turn. Grease and oil are under extreme

pressure and can penetrate the body,

causing serious injury.

Elevated Sprocket Tractors

Grease is under high pressure.

Grease coming out of the relief valve

under pressure can penetrate the body

causing injury or death.

Do not watch the relief valve to see if

grease is escaping. Watch the track or

track adjustment cylinder to see if the

track is being loosened.

1 Move the tractor forward and let it

coast to a stop without applying the

brakes. Make sure slack is between the

sprocket and front idler. Then park the

machine and turn off the engine.

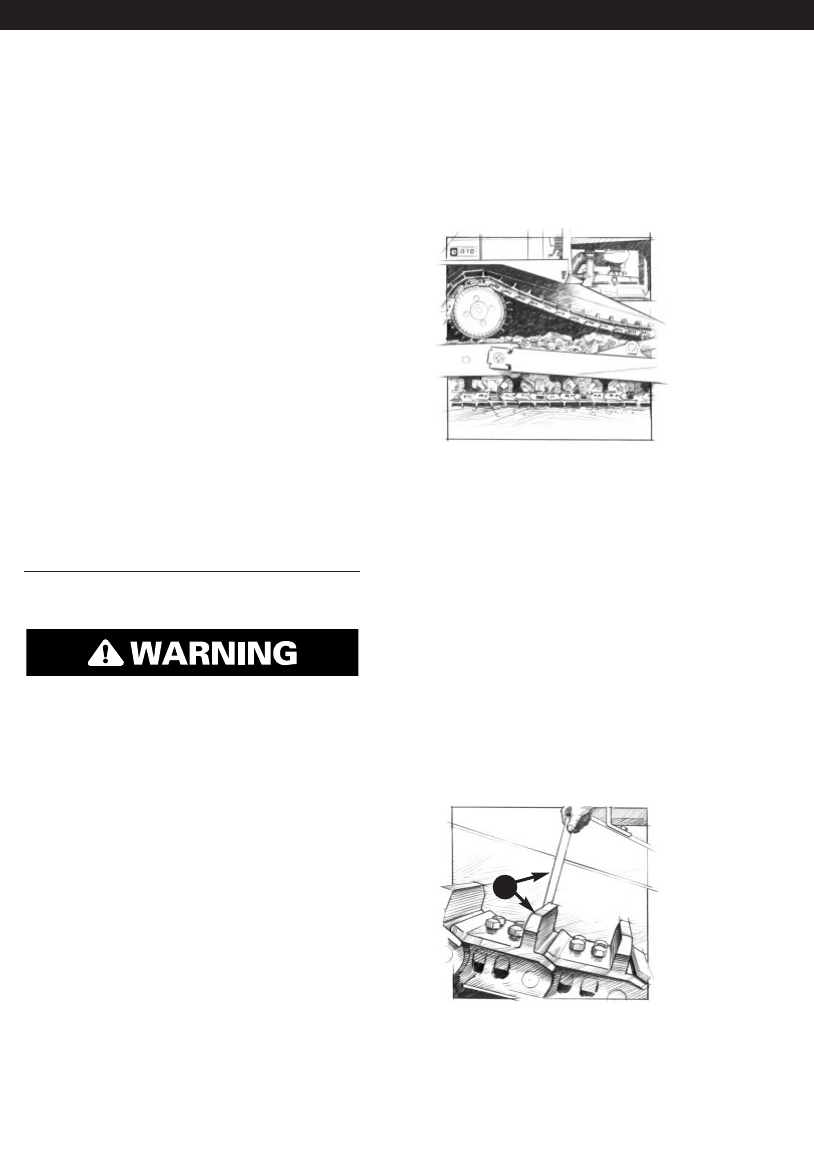

Place a tight line over the grouser tips

from the sprocket to the front idler.

2 For machines without carrier rollers,

measure the distance “A” from the line

to the grouser tip at the lowest point of

sag. Refer to Chart 1 to determine the

correct sag for each model.

For machines with carrier rollers,

measure the distance from the line to

the grouser tips in two places: at the

lowest point of sag “A” between the

front idler and carrier roller and

between the carrier roller and sprocket.

Then average the two measurements.

Refer to Chart 2 to determine the correct

sag for each model.

106

TRACK ADJUSTMENTS

Elevated Sprocket Machines
