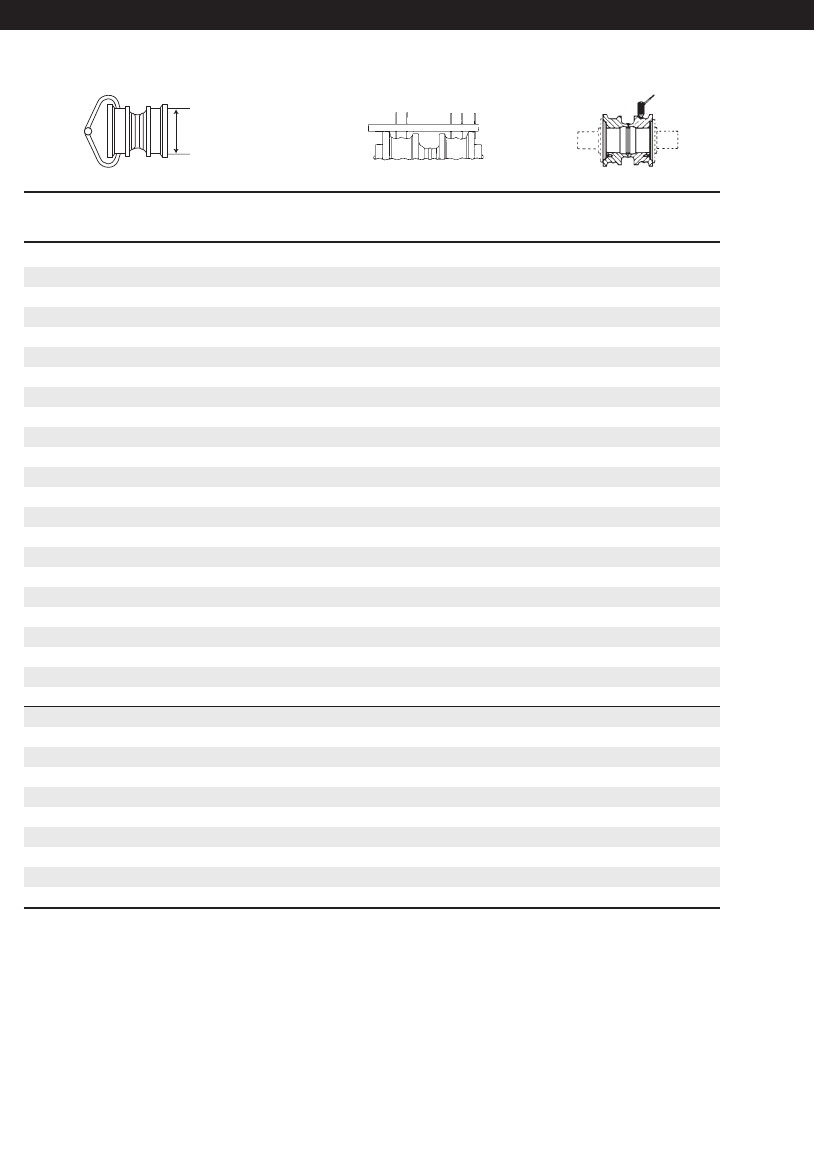

Track Rollers

7T Rim

Caliper Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm) Inches (mm)

8.74 (222.0) 0 0.75 (19.0) 2.06 (52.3)

8.70 (221.0) 5 0.77 (19.5) 2.04 (51.8)

8.66 (220.0) 10 0.79 (20.0) 2.02 (51.3)

8.62 (219.0) 15 0.81 (20.5) 2.00 (50.8)

8.58 (218.0) 20 0.83 (21.0) 1.98 (50.3)

8.54 (217.0) 25 0.85 (21.5) 1.96 (49.8)

8.50 (216.0) 30 0.87 (22.0) 1.94 (49.3)

8.46 (215.0) 35 0.89 (22.5) 1.92 (48.8)

8.42 (214.0) 40 0.91 (23.0) 1.90 (48.3)

8.38 (213.0) 45 0.93 (23.5) 1.88 (47.8)

8.34 (212.0) 50 0.95 (24.0) 1.86 (47.2)

8.30 (211.0) 55 0.97 (24.5) 1.84 (46.7)

8.26 (210.0) 60 0.99 (25.0) 1.82 (46.2)

8.22 (209.0) 65 1.01 (25.5) 1.80 (45.7)

8.18 (208.0) 70 1.03 (26.0) 1.78 (45.2)

8.14 (207.0) 75 1.05 (26.5) 1.76 (44.7)

8.10 (205.5) 80 1.07 (27.0) 1.74 (44.2)

8.06 (204.5) 85 1.09 (27.5) 1.72 (43.7)

8.02 (203.5) 90 1.11 (28.0) 1.70 (43.2)

7.98 (202.5) 94 1.13 (28.5) 1.68 (42.7)

7.94 (201.5) 96 1.15 (29.0) 1.66 (42.2)

7.90 (200.5) 98 1.17 (29.5) 1.64 (41.7)

7.86 (199.5) 100 1.19 (30.0) 1.62 (41.1)

7.82 (198.5) 102 1.21 (30.5) 1.60 (40.6)

7.78 (197.5) 104 1.23 (31.0) 1.58 (40.1)

7.74 (196.5) 106 1.25 (32.0) 1.56 (39.6)

7.70 (195.5) 108 1.27 (32.5) 1.54 (39.1)

7.66 (194.5) 110 1.29 (33.0) 1.52 (38.6)

7.62 (193.5) 112 1.31 (33.5) 1.50 (38.1)

7.58 (192.5) 114 1.33 (34.0) 1.48 (37.6)

7.54 (191.5) 116 1.35 (34.5) 1.46 (37.1)

7.50 (190.5) 118 1.37 (35.0) 1.44 (36.6)

7.46 (189.5) 120 1.39 (35.5) 1.42 (36.1)

Flange diameter is 10.24" (260 mm)

Undercarriage Code: 481

682

235, LL235 — 8.50" (215.9 mm)

Excavators

11.Exc.(608-709) 7/14/03 7:33 AM Page 682
