Caterpillar Custom Track Service Handbook Page 386

Service Handbook

Page of 826

/ 826

Idlers

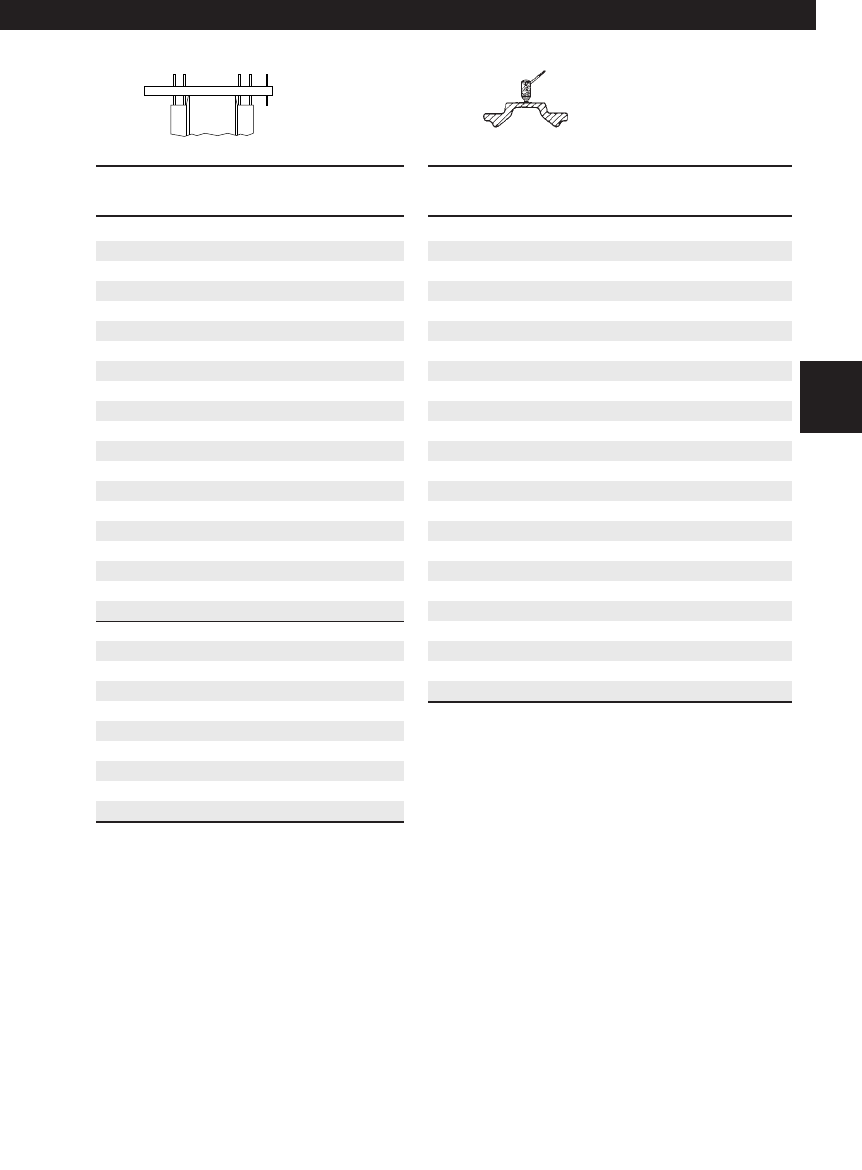

Depth Gauge Ultrasonic Center Flange Wear

Inches (mm) % Worn Inches (mm) Inches (mm)

0.88 (22.5) 0 0.48 (12.2) 0.00 (0.0)

0.90 (23.0) 9 0.46 (11.7) 0.02 (0.5)

0.92 (23.5) 18 0.44 (11.2) 0.04 (1.0)

0.94 (24.0) 27 0.42 (10.7) 0.06 (1.5)

0.96 (24.5) 36 0.40 (10.2) 0.08 (2.0)

0.98 (25.0) 45 0.38 (9.7) 0.10 (2.5)

1.00 (25.5) 54 0.36 (9.1) 0.12 (3.0)

1.02 (26.0) 63 0.34 (8.6) 0.14 (3.5)

1.04 (26.5) 72 0.32 (8.1) 0.16 (4.0)

1.06 (27.0) 80 0.30 (7.6) 0.18 (4.5)

1.08 (27.5) 82 0.28 (7.1) 0.20 (5.0)

1.10 (28.0) 84 0.26 (6.6) 0.22 (5.5)

1.12 (28.5) 86 0.24 (6.1) 0.24 (6.0)

1.14 (29.0) 88 0.22 (5.6) 0.26 (6.5)

1.16 (29.5) 90 0.20 (5.1) 0.28 (7.0)

1.18 (30.0) 92 0.18 (4.6) 0.30 (7.5)

1.20 (30.5) 94 0.16 (4.1) 0.32 (8.0)

1.22 (31.0) 96 0.14 (3.6) 0.34 (8.5)

1.24 (31.5) 98 0.12 (3.0) 0.36 (9.0)

1.26 (32.0) 100 0.10 (2.5) 0.38 (9.5)

1.28 (32.5) 102 0.08 (2.0) 0.40 (10.0)

1.30 (33.0) 104 0.06 (1.5) 0.42 (10.5)

1.32 (33.5) 106 0.04 (1.0) 0.44 (11.0)

1.34 (34.0) 108 0.02 (0.5) 0.46 (11.5)

1.36 (34.5) 110

NOTE: Ultrasonic measurement is to determine

1.38 (35.0) 112

flange wear only.

1.40 (35.5) 114

1.42 (36.0) 116

1.44 (36.5) 118

1.46 (37.0) 120

Flange width: 5.09" (129.5 mm)

Undercarriage Code: 191

385

D9, 594 — 10.25" (260.4 mm)

Low Sprocket Machines

07.Low(348-387) 7/14/03 7:30 AM Page 385
