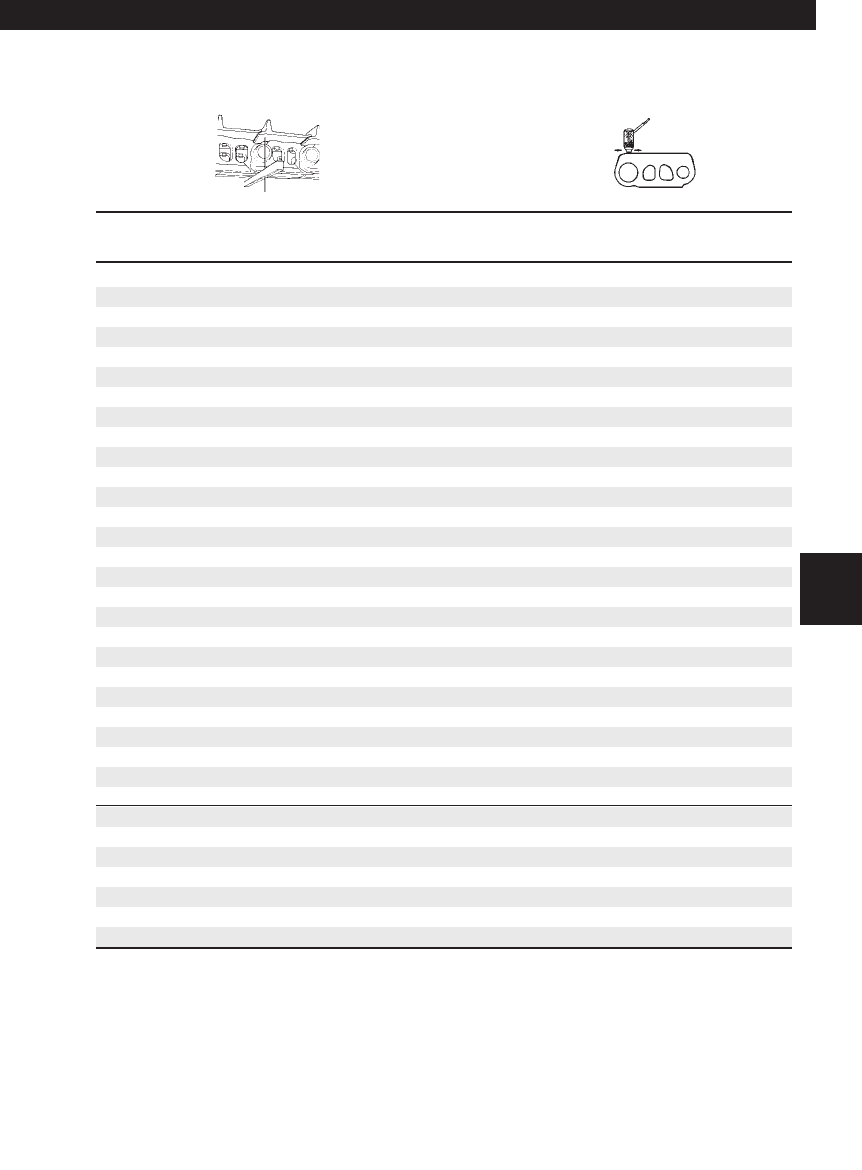

Track Links

Rotating Bushing Track

195-6515 & 16

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

5.19 (132.0) 0 1.69 (42.9)

5.17 (131.5) 4 1.67 (42.4)

5.15 (131.0) 8 1.65 (41.9)

5.13 (130.5) 12 1.63 (41.4)

5.11 (130.0) 16 1.61 (40.9)

5.09 (129.5) 20 1.59 (40.4)

5.07 (129.0) 24 1.57 (39.9)

5.05 (128.5) 28 1.55 (39.4)

5.03 (128.0) 32 1.53 (38.9)

5.01 (127.5) 36 1.51 (38.4)

4.99 (126.5) 40 1.49 (37.8)

4.97 (126.0) 44 1.47 (37.3)

4.95 (125.5) 48 1.45 (36.8)

4.93 (125.0) 52 1.43 (36.3)

4.91 (124.5) 56 1.41 (35.8)

4.89 (124.0) 60 1.39 (35.3)

4.87 (123.5) 64 1.37 (34.8)

4.85 (123.0) 68 1.35 (34.3)

4.83 (122.5) 72 1.33 (33.8)

4.81 (122.0) 76 1.31 (33.3)

4.79 (121.5) 80 1.29 (32.8)

4.77 (121.0) 84 1.27 (32.3)

4.75 (120.5) 88 1.25 (31.8)

4.73 (120.0) 91 1.23 (31.2)

4.71 (119.5) 94 1.21 (30.7)

4.69 (119.0) 97 1.19 (30.2)

4.67 (118.5) 100 1.17 (29.7)

4.65 (118.0) 103 1.15 (29.2)

4.63 (117.5) 106 1.13 (28.7)

4.61 (117.0) 109 1.11 (28.2)

4.59 (116.5) 112 1.09 (27.7)

4.57 (116.0) 115 1.07 (27.2)

4.55 (115.5) 118 1.05 (26.7)

4.53 (115.0) 121 1.03 (26.2)

Undercarriage Code: 365

461

Hydrostatic Loaders

963 — 8.00" (203.2 mm)

09.Hydro(426-487) 7/14/03 7:32 AM Page 461
