Caterpillar Custom Track Service Handbook Page 700

Service Handbook

Page of 826

/ 826

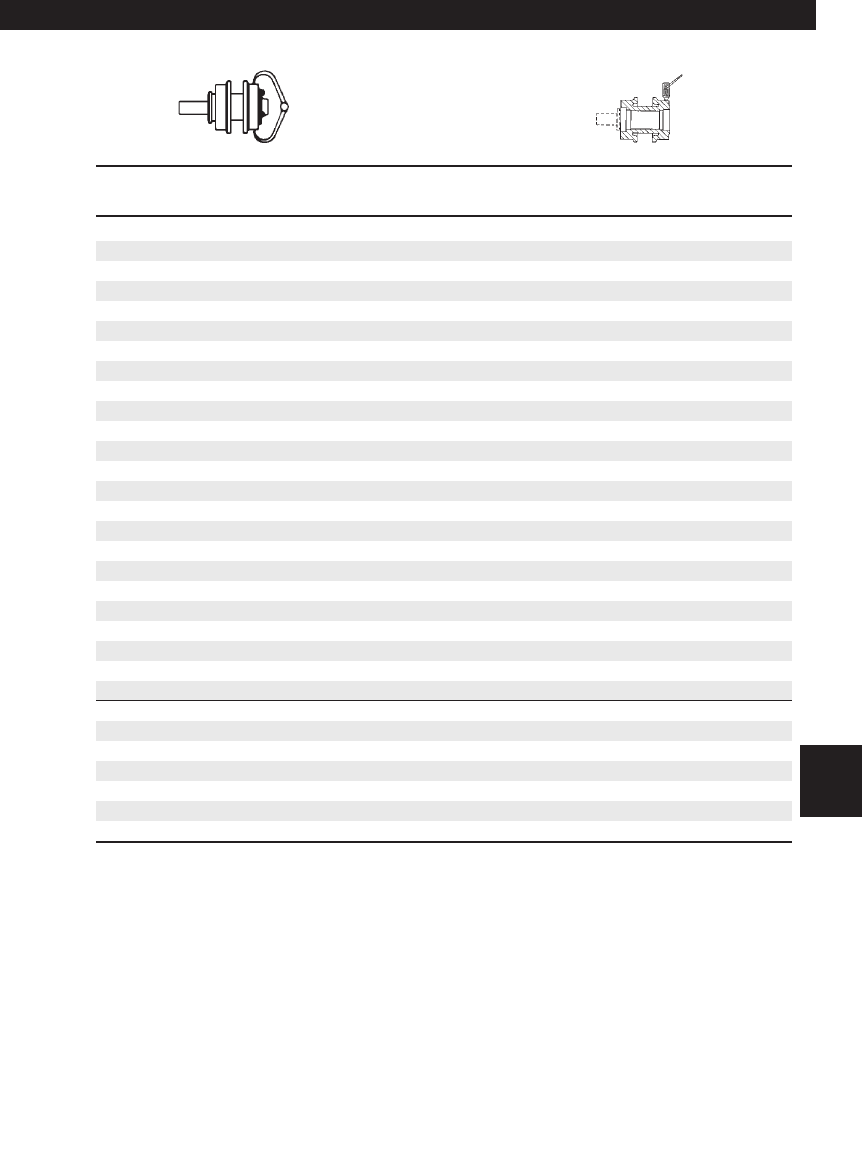

Carrier Rollers

Caliper Ultrasonic

Inches (mm) % Worn Inches (mm)

7.50 (190.5) 0 1.92 (48.8)

7.46 (189.5) 5 1.90 (48.3)

7.42 (188.5) 10 1.88 (47.8)

7.38 (187.5) 15 1.86 (47.2)

7.34 (186.5) 20 1.84 (46.7)

7.30 (185.5) 25 1.82 (46.2)

7.26 (184.5) 30 1.80 (45.7)

7.22 (183.5) 35 1.78 (45.2)

7.18 (182.5) 40 1.76 (44.7)

7.14 (181.5) 45 1.74 (44.2)

7.10 (180.5) 50 1.72 (43.7)

7.06 (179.5) 55 1.70 (43.2)

7.02 (178.5) 60 1.68 (42.7)

6.98 (177.5) 65 1.66 (42.2)

6.94 (176.5) 70 1.64 (41.7)

6.90 (175.5) 75 1.62 (41.1)

6.86 (174.0) 79 1.60 (40.6)

6.82 (173.0) 82 1.58 (40.1)

6.78 (172.0) 85 1.56 (39.6)

6.74 (171.0) 88 1.54 (39.1)

6.70 (170.0) 91 1.52 (38.6)

6.66 (169.0) 94 1.50 (38.1)

6.62 (168.0) 97 1.48 (37.6)

6.58 (167.0) 100 1.46 (37.1)

6.54 (166.0) 103 1.44 (36.6)

6.50 (165.0) 106 1.42 (36.1)

6.46 (164.0) 109 1.40 (35.6)

6.42 (163.0) 112 1.38 (35.1)

6.38 (162.0) 115 1.36 (34.5)

6.34 (161.0) 118 1.34 (34.0)

6.30 (160.0) 121 1.32 (33.5)

Undercarriage Code: 491, 492, 493

699

245 — 10.25" (260.4 mm)

Excavators

11.Exc.(608-709) 7/14/03 7:33 AM Page 699
