NOTE: Links in Sealed and Lubricated

Track should generally experience

reduced pin and bushing bore enlarge-

ment and subsequent retention loss. This is

due to the absence of internal wear, which

in Sealed Track increases flexing of pins

and bushings in their bores.

There should be less flexing of Sealed and

Lubricated pins and bushings because the

bushing is held more rigidly between the

link counterbores over its entire life and

the pin is held more rigidly within the

bushing during its life.

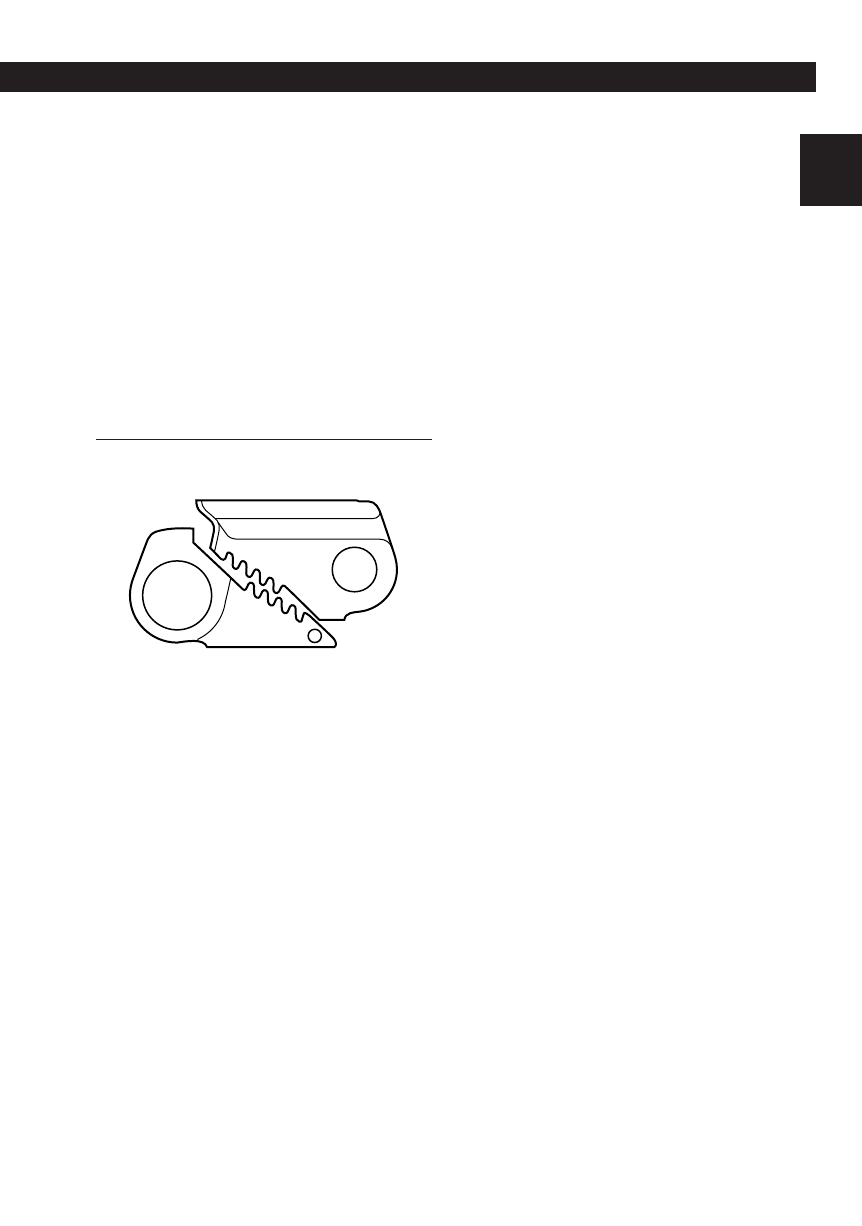

Split Master Link

The two piece split master link allows

each joint to be factory or dealer sealed in

the shop.

Measuring and interpreting master link rail

and other wear patterns is the same for the

split master link as for regular link. Split

master link rebuildability is determined by

the same criteria plus the condition of the

connecting teeth and the bolt hole threads.

Split master link structural problems are

usually related to improper assembly

and bolt torquing. Split master links are

even more susceptible to detrimental

effects of wide shoes.

Assembling and Torquing

Procedure

The importance of proper assembly

sequence and torquing cannot be over-

stressed. Follow these steps for both new

and used split master links.

1. Before installing the track, the point of

connection for the master link must be

clean and not have damage. Remove all

paint from points of connection.

2. Put 2P2506 Thread Lubricant or

5P3931 Antiseize Compound on

threads of master bolts.

3. Put master links together and check

alignment of holes for master bolts.

Install one master bolt in each link. The

bolts must turn easily in the threads,

when turned by hand.

4. Remove the bolts. Install the master

track shoe and all four master bolts.

Turn the master bolts by hand.

5. Tighten the master bolts to initial torque,

plus 1/2 or 1/3 turn. The actual Torque

specifications can be found in the “Man-

agement” section of each machine type.

General Information

LINKS
