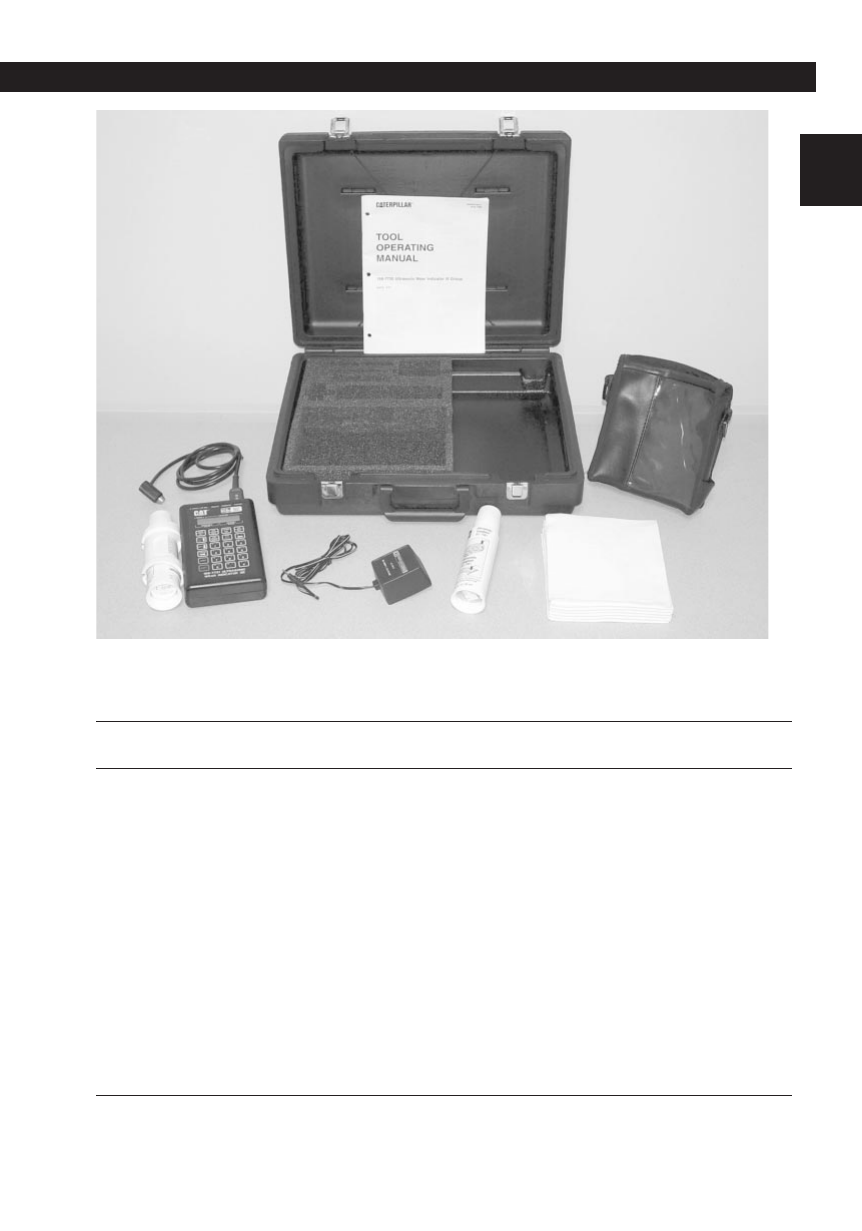

168-7720 Ultrasonic Wear Indicator III Group

Separate Tools

Part

Number Description

168-7720 Ultrasonic Wear Indicator III Group

168-7721 Ultrasonic Wear Indicator III

168-7722 Ultrasonic Probe

9U-7981 Couplant

4C-5490 Couplant Holder

6V-7145 Case (without foam insert)

4C-4772 Foam Insert

4C-3024 Battery Charger (120 or 230 volts, 50/60 Hertz)

9U-6000 Paper Towels (16 towels)

1U-7445 Rechargeable Batteries, Nickel Cadmium (AA)

9U-6175* Ultrasonic Wear Indicator Soft Protective Case

1U-9533* Non-rechargeable Batteries, Alkaline (AA)

4C-5488* Cable Assembly, 9-pin female connector, for PC

4C-5489* Cable Assembly, 25-pin female connector, for PC

4C-5897* Cable Assembly for Telephone Modem

NEHS0730 Tool Operating Manual

*Not included with the Ultrasonic Wear Indicator Group

NOTE: A 12-volt automotive power supply adapter (6 volts DC) and an earphone are available through many

electronic supply retailers.

General Information

MEASUREMENT TOOLS

01.G.I.,M.&M (01-93) 7/11/03 3:40 PM Page 9
