Caterpillar Custom Track Service Handbook Page 131

Service Handbook

Page of 826

/ 826

Track Links

Heavy Duty Track

Rotating Bushing Track

106-1625 & 26

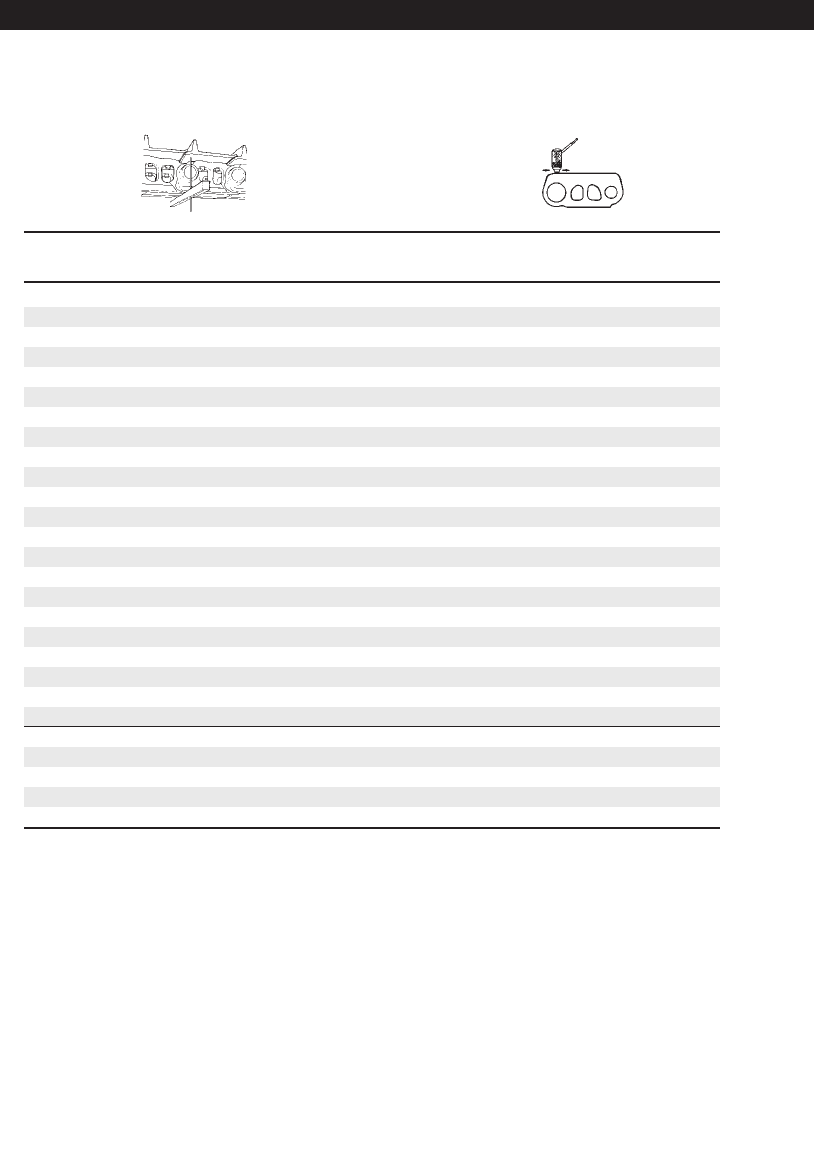

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

4.68 (119.0) 0 1.53 (38.9)

4.66 (118.5) 5 1.51 (38.4)

4.64 (118.0) 10 1.49 (37.8)

4.62 (117.5) 15 1.47 (37.3)

4.60 (117.0) 20 1.45 (36.8)

4.58 (116.5) 25 1.43 (36.3)

4.56 (116.0) 30 1.41 (35.8)

4.54 (115.5) 35 1.39 (35.3)

4.52 (115.0) 40 1.37 (34.8)

4.50 (114.5) 45 1.35 (34.3)

4.48 (114.0) 50 1.33 (33.8)

4.46 (113.5) 55 1.31 (33.3)

4.44 (113.0) 60 1.29 (32.8)

4.42 (112.5) 65 1.27 (32.3)

4.40 (112.0) 70 1.25 (31.8)

4.38 (111.5) 75 1.23 (31.2)

4.36 (110.5) 80 1.21 (30.7)

4.34 (110.0) 84 1.19 (30.2)

4.32 (109.5) 88 1.17 (29.7)

4.30 (109.0) 92 1.15 (29.2)

4.28 (108.5) 96 1.13 (28.7)

4.26 (108.0) 100 1.11 (28.2)

4.24 (107.5) 104 1.09 (27.7)

4.22 (107.0) 108 1.07 (27.2)

4.20 (106.5) 112 1.05 (26.7)

4.18 (106.0) 116 1.03 (26.2)

4.16 (105.5) 120 1.01 (25.7)

Undercarriage Code: 1338, 137, 140, 141, 1411, 144, 146, 1461, 280, 281

130

D5H, D6M, D6N, 517 — 7.50" (190 mm)

Elevated Sprocket Machines
