Caterpillar Custom Track Service Handbook Page 616

Service Handbook

Page of 826

/ 826

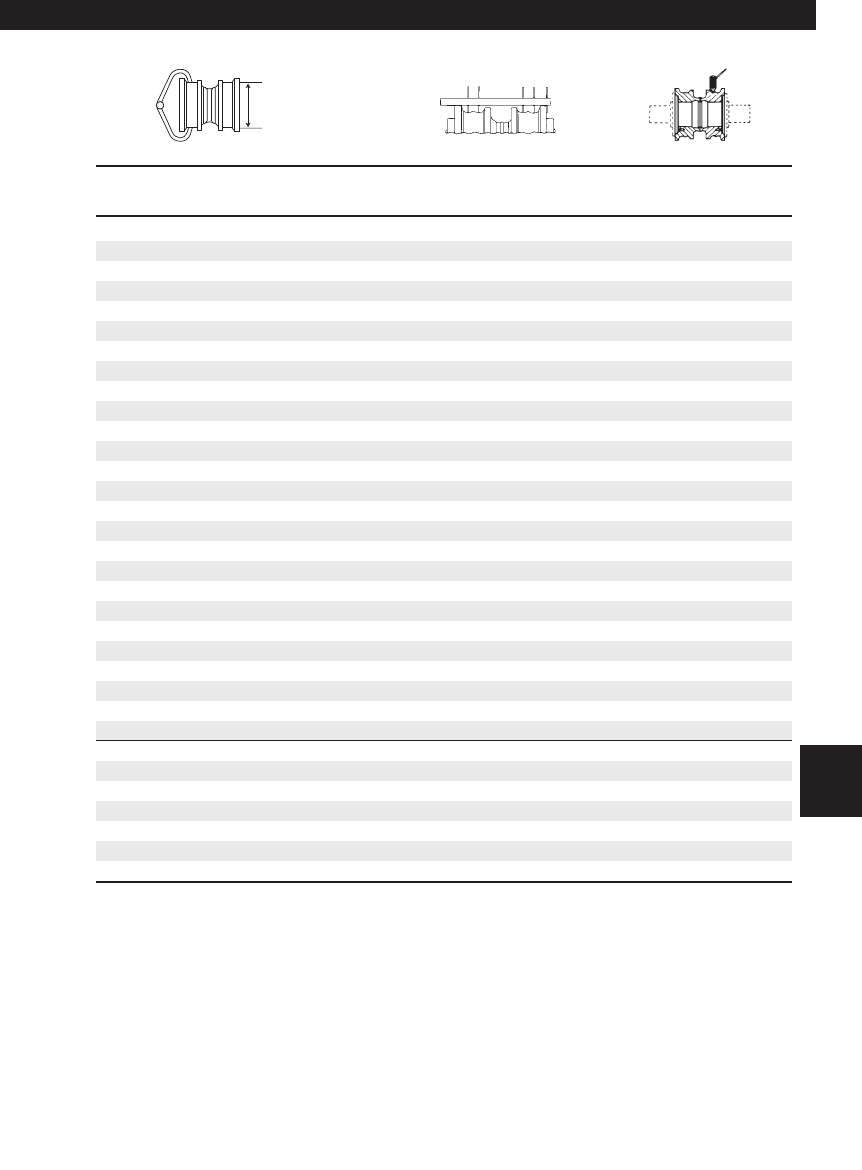

Track Rollers

Caliper Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm) Inches (mm)

6.10 (155.0) 0 0.69 (17.5) 1.72 (43.7)

6.08 (154.5) 5 0.70 (18.0) 1.71 (43.4)

6.06 (154.0) 10 0.71 (18.0) 1.70 (43.2)

6.04 (153.5) 15 0.72 (18.5) 1.69 (42.9)

6.02 (153.0) 20 0.73 (18.5) 1.68 (42.7)

6.00 (152.5) 25 0.74 (19.0) 1.67 (42.4)

5.98 (152.0) 30 0.75 (19.0) 1.66 (42.2)

5.96 (151.5) 35 0.76 (19.5) 1.65 (41.9)

5.94 (151.0) 40 0.77 (19.5) 1.64 (41.7)

5.92 (150.5) 45 0.78 (20.0) 1.63 (41.4)

5.90 (150.0) 50 0.79 (20.0) 1.62 (41.1)

5.88 (149.5) 55 0.80 (20.5) 1.61 (40.9)

5.86 (149.0) 60 0.81 (20.5) 1.60 (40.6)

5.84 (148.5) 64 0.82 (21.0) 1.59 (40.4)

5.82 (148.0) 67 0.83 (21.0) 1.58 (40.1)

5.80 (147.5) 70 0.84 (21.5) 1.57 (39.9)

5.78 (147.0) 73 0.85 (21.5) 1.56 (39.6)

5.76 (146.5) 76 0.86 (22.0) 1.55 (39.4)

5.74 (146.0) 79 0.87 (22.0) 1.54 (39.1)

5.72 (145.5) 82 0.88 (22.5) 1.53 (38.9)

5.70 (145.0) 85 0.89 (22.5) 1.52 (38.6)

5.68 (144.5) 88 0.90 (23.0) 1.51 (38.4)

5.66 (144.0) 91 0.91 (23.0) 1.50 (38.1)

5.64 (143.5) 94 0.92 (23.5) 1.49 (37.8)

5.62 (142.5) 97 0.93 (23.5) 1.48 (37.6)

5.60 (142.0) 100 0.94 (24.0) 1.47 (37.3)

5.58 (141.5) 103 0.95 (24.0) 1.46 (37.1)

5.56 (141.0) 106 0.96 (24.5) 1.45 (36.8)

5.54 (140.5) 109 0.97 (24.5) 1.44 (36.6)

5.52 (140.0) 112 0.98 (25.0) 1.43 (36.3)

5.50 (139.5) 115 0.99 (25.0) 1.42 (36.1)

5.48 (139.0) 118 1.00 (25.5) 1.41 (35.8)

5.46 (138.5) 121 1.01 (25.5) 1.40 (35.6)

Undercarriage Code: 401, 402, 411, 412, 421, 422

615

205, 211, 213 — 6.75" (171.5 mm)

Excavators

11.Exc.(608-709) 7/14/03 7:33 AM Page 615
