Caterpillar Custom Track Service Handbook Page 181

Service Handbook

Page of 826

/ 826

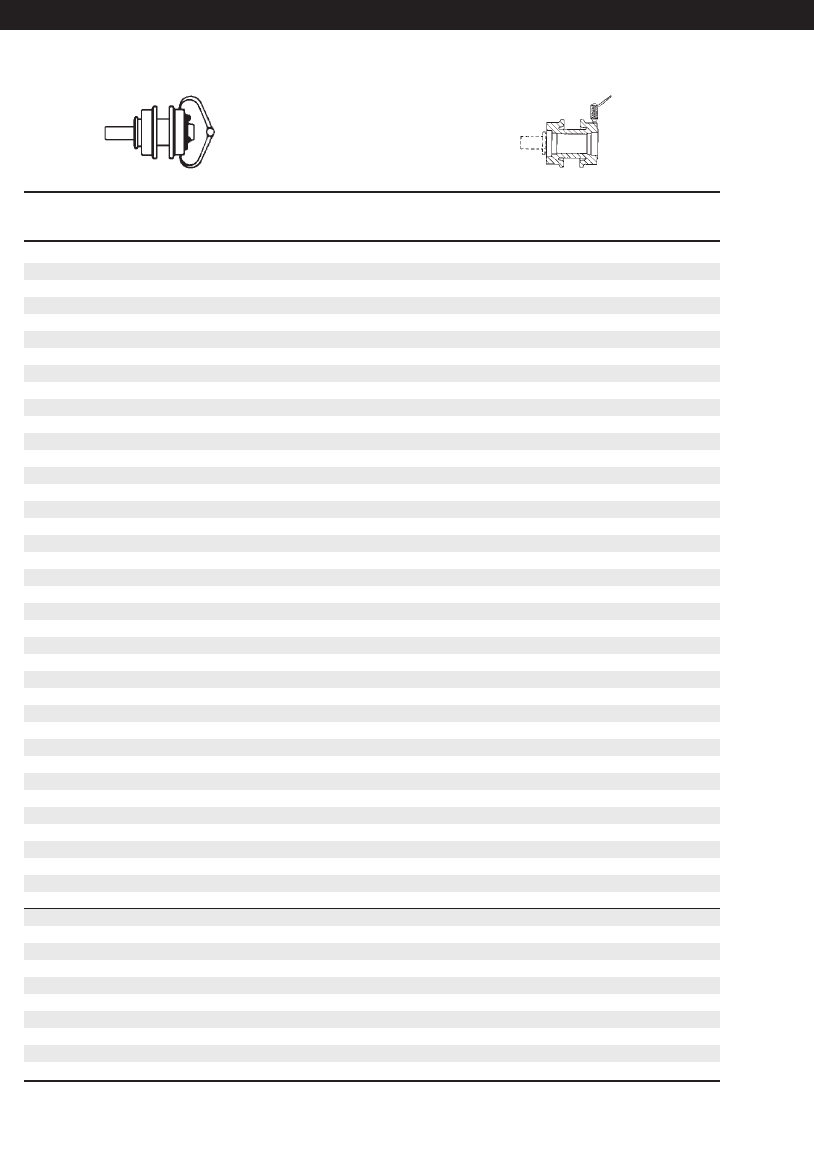

Carrier Rollers

Use with Heavy Duty or Rotating Bushing Track

Caliper Ultrasonic

Inches (mm) % Worn Inches (mm)

7.50 (190.5) 0 1.92 (48.8)

7.46 (189.5) 4 1.90 (48.3)

7.42 (188.5) 8 1.88 (47.8)

7.38 (187.5) 12 1.86 (47.2)

7.34 (186.5) 16 1.84 (46.7)

7.30 (185.5) 20 1.82 (46.2)

7.26 (184.5) 24 1.80 (45.7)

7.22 (183.5) 28 1.78 (45.2)

7.18 (182.5) 32 1.76 (44.7)

7.14 (181.5) 36 1.74 (44.2)

7.10 (180.5) 40 1.72 (43.7)

7.06 (179.5) 44 1.70 (43.2)

7.02 (178.5) 48 1.68 (42.7)

6.98 (177.5) 50 1.66 (42.2)

6.94 (176.5) 52 1.64 (41.7)

6.90 (175.5) 54 1.62 (41.1)

6.86 (174.0) 56 1.60 (40.6)

6.82 (173.0) 58 1.58 (40.1)

6.78 (172.0) 60 1.56 (39.6)

6.74 (171.0) 62 1.54 (39.1)

6.70 (170.0) 64 1.52 (38.6)

6.66 (169.0) 66 1.50 (38.1)

6.62 (168.0) 68 1.48 (37.6)

6.58 (167.0) 70 1.46 (37.1)

6.54 (166.0) 72 1.44 (36.6)

6.50 (165.0) 74 1.42 (36.1)

6.46 (164.0) 76 1.40 (35.6)

6.42 (163.0) 78 1.38 (35.1)

6.38 (162.0) 80 1.36 (34.5)

6.34 (161.0) 82 1.34 (34.0)

6.30 (160.0) 84 1.32 (33.5)

6.26 (159.0) 86 1.30 (33.0)

6.22 (158.0) 88 1.28 (32.5)

6.18 (157.0) 90 1.26 (32.0)

6.14 (156.0) 92 1.24 (31.5)

6.10 (155.0) 94 1.22 (31.0)

6.06 (154.0) 96 1.20 (30.5)

6.02 (153.0) 98 1.18 (30.0)

5.98 (152.0) 100 1.16 (29.5)

5.94 (151.0) 102 1.14 (29.0)

5.90 (150.0) 104 1.12 (28.4)

5.86 (149.0) 106 1.10 (27.9)

5.82 (148.0) 108 1.08 (27.4)

5.78 (147.0) 110 1.06 (26.9)

5.74 (146.0) 112 1.04 (26.4)

5.70 (145.0) 114 1.02 (25.9)

5.66 (144.0) 116 1.00 (25.4)

5.62 (142.5) 118 0.98 (24.9)

5.58 (141.5) 120 0.96 (24.4)

Undercarriage Code: 1642, 166, 169, 170, 1701, 173, 174, 1741

180

D7H, D7R, 572R — 8.50" (215.9 mm)

Elevated Sprocket Machines

03.Elev.(146-197) 7/11/03 3:44 PM Page 180
