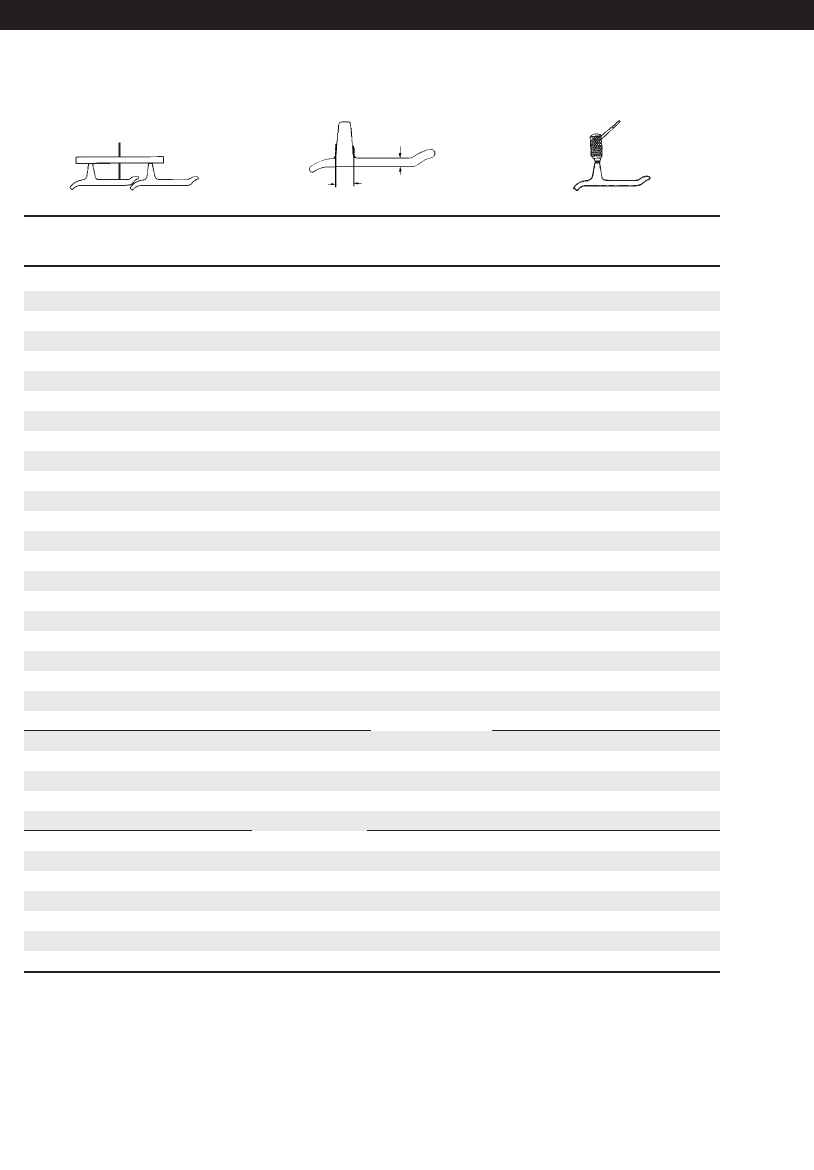

Caterpillar Custom Track Service Handbook Page 215

Service Handbook
Track Shoes
Extreme Service
Depth Gauge High Impact Low Impact Ultrasonic
Inches (mm) % Worn % Worn Inches (mm)
3.70 (94.0) 0 0 4.50 (114.3)
3.60 (91.5) 5 4 4.40 (111.8)
3.50 (89.0) 10 8 4.30 (109.2)
3.40 (86.5) 15 12 4.20 (106.7)
3.30 (84.0) 20 16 4.10 (104.1)
3.20 (81.5) 25 20 4.00 (101.6)
3.10 (78.5) 30 24 3.90 (99.1)
3.00 (76.0) 35 28 3.80 (96.5)
2.90 (73.5) 40 32 3.70 (94.0)
2.80 (71.0) 45 36 3.60 (91.4)
2.70 (68.5) 50 40 3.50 (88.9)
2.60 (66.0) 55 44 3.40 (86.4)
2.50 (63.5) 60 48 3.30 (83.8)
2.40 (61.0) 64 52 3.20 (81.3)
2.30 (58.5) 68 56 3.10 (78.7)
2.20 (56.0) 72 60 3.00 (76.2)
2.10 (53.5) 76 64 2.90 (73.7)
2.00 (51.0) 80 68 2.80 (71.1)
1.90 (48.5) 84 72 2.70 (68.6)
1.80 (45.5) 88 76 2.60 (66.0)
1.70 (43.0) 92 79 2.50 (63.5)
1.60 (40.5) 96 82 2.40 (61.0)
1.50 (38.0) 100 85 2.30 (58.4)
1.40 (35.5) 104 88 2.20 (55.9)
1.30 (33.0) 108 91 2.10 (53.3)
1.20 (30.5) 112 94 2.00 (50.8)
1.10 (28.0) 116 97 1.90 (48.3)
1.00 (25.5) 120 100 1.80 (45.7)
0.90 (23.0) 103 1.70 (43.2)
0.80 (20.5) 106 1.60 (40.6)
0.70 (18.0) 109 1.50 (38.1)
0.60 (15.0) 112 1.40 (35.6)
0.50 (12.5) 115 1.30 (33.0)
0.40 (10.0) 118 1.20 (30.5)
0.30 (7.5) 121 1.10 (27.9)
Undercarriage Code: 193, 194
214
D9L, 589 — 9.00" (228.6 mm)
Elevated Sprocket Machines
.83" (21 mm)
1.73" (44 mm)
04.Elev.(198-245) 7/11/03 3:45 PM Page 214
