Caterpillar Custom Track Service Handbook Page 531

Service Handbook

Page of 826

/ 826

Track Links

6Y1607 & 08

Not for use on 325 FM

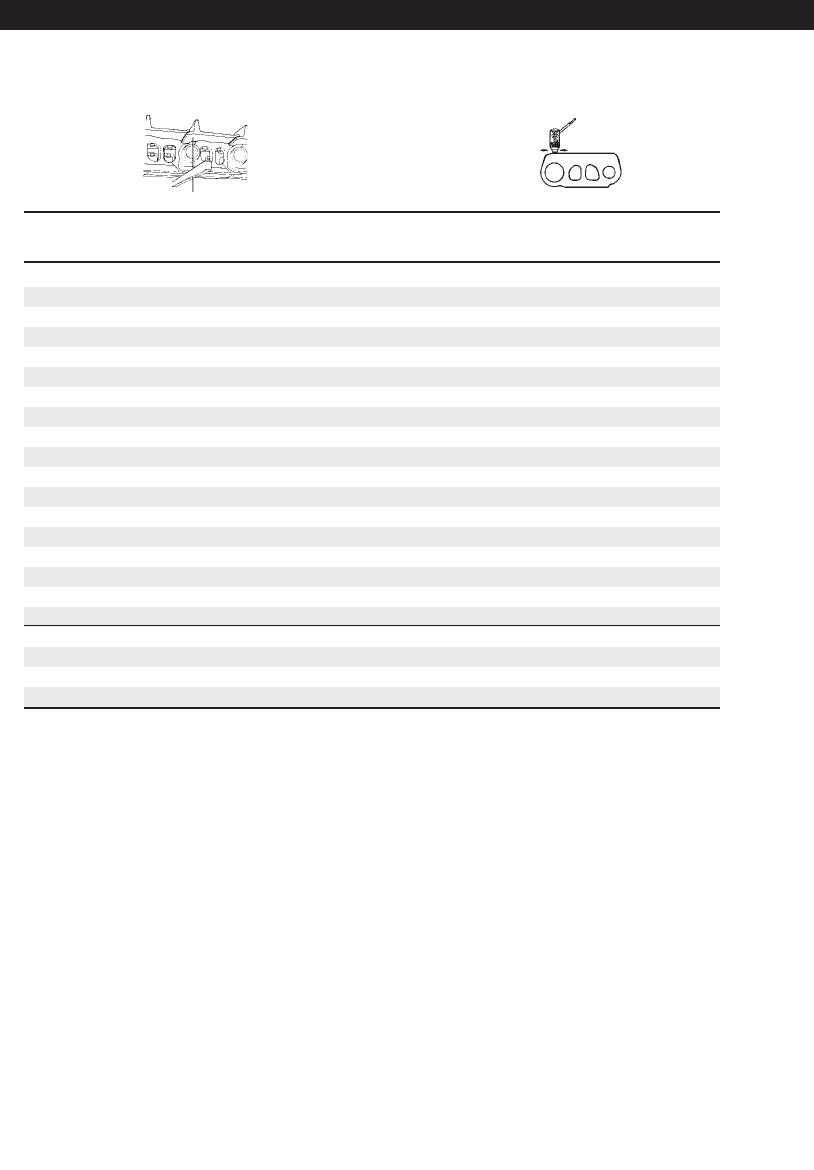

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

4.52 (115.0) 0 1.26 (32.0)

4.50 (114.5) 8 1.24 (31.5)

4.48 (114.0) 16 1.22 (31.0)

4.46 (113.5) 24 1.20 (30.5)

4.44 (113.0) 32 1.18 (30.0)

4.42 (112.5) 40 1.16 (29.5)

4.40 (112.0) 45 1.14 (29.0)

4.38 (111.5) 50 1.12 (28.4)

4.36 (110.5) 55 1.10 (27.9)

4.34 (110.0) 60 1.08 (27.4)

4.32 (109.5) 65 1.06 (26.9)

4.30 (109.0) 70 1.04 (26.4)

4.28 (108.5) 75 1.02 (25.9)

4.26 (108.0) 80 1.00 (25.4)

4.24 (107.5) 85 0.98 (24.9)

4.22 (107.0) 90 0.96 (24.4)

4.20 (106.5) 95 0.94 (23.9)

4.18 (106.0) 100 0.92 (23.4)

4.16 (105.5) 105 0.90 (22.9)

4.14 (105.0) 110 0.88 (22.4)

4.12 (104.5) 115 0.86 (21.8)

4.10 (104.0) 120 0.84 (21.3)

Undercarriage Code: 568, 5681, 579, 5791, 591, 5911

530

320S, 322 FM, 325 — 8.00" (203.2 mm)

Excavators

10.Exc.(488-607) 7/14/03 7:32 AM Page 530
