Caterpillar Custom Track Service Handbook Page 388

Service Handbook

Page of 826

/ 826

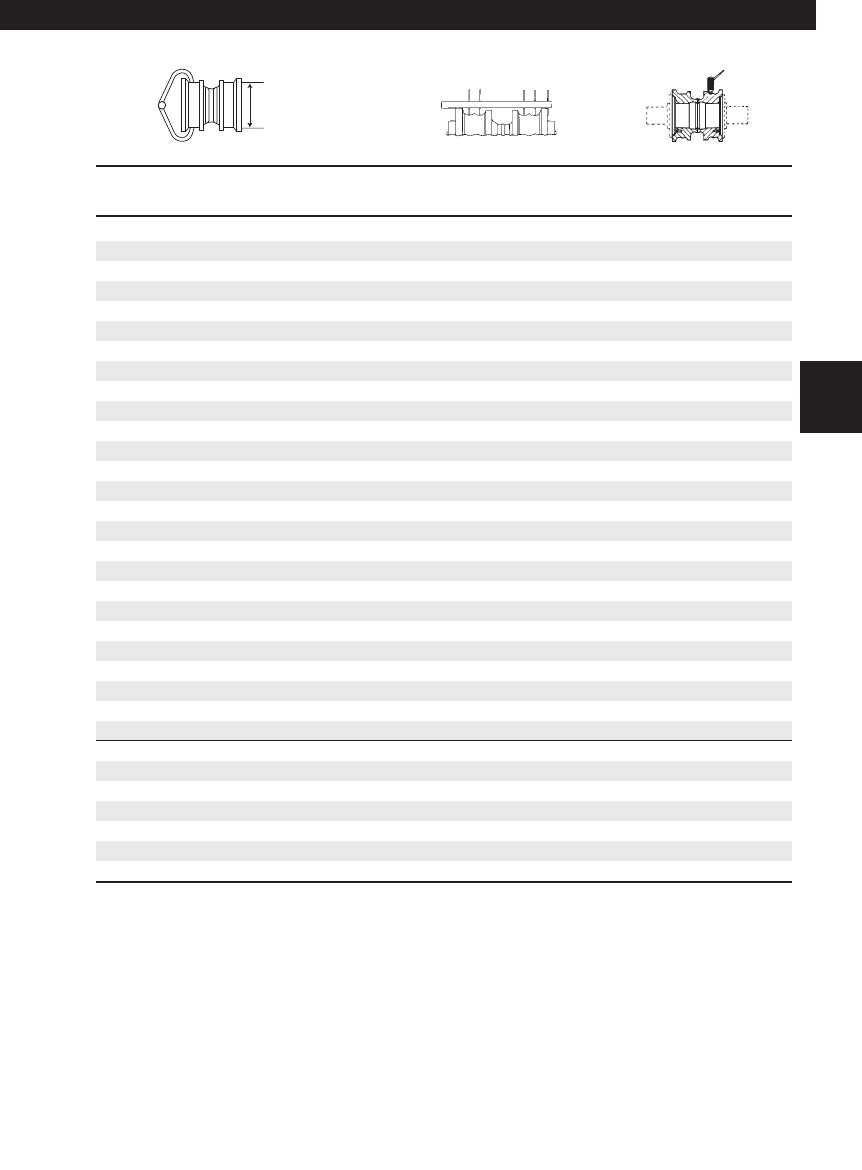

Track Rollers

Caliper Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm) Inches (mm)

10.63 (270.0) 0 0.86 (22.0) 2.50 (63.5)

10.59 (269.0) 5 0.88 (22.5) 2.48 (63.0)

10.55 (268.0) 10 0.90 (23.0) 2.46 (62.5)

10.51 (267.0) 15 0.92 (23.5) 2.44 (62.0)

10.47 (266.0) 20 0.94 (24.0) 2.42 (61.5)

10.43 (265.0) 25 0.96 (24.5) 2.40 (61.0)

10.39 (264.0) 30 0.98 (25.0) 2.38 (60.5)

10.35 (263.0) 35 1.00 (25.5) 2.36 (59.9)

10.31 (262.0) 40 1.02 (26.0) 2.34 (59.4)

10.27 (261.0) 45 1.04 (26.5) 2.32 (58.9)

10.23 (260.0) 50 1.06 (27.0) 2.30 (58.4)

10.19 (259.0) 55 1.08 (27.5) 2.28 (57.9)

10.15 (258.0) 60 1.10 (28.0) 2.26 (57.4)

10.11 (257.0) 64 1.12 (28.5) 2.24 (56.9)

10.07 (256.0) 67 1.14 (29.0) 2.22 (56.4)

10.03 (255.0) 70 1.16 (29.5) 2.20 (55.9)

9.99 (253.5) 73 1.18 (30.0) 2.18 (55.4)

9.95 (252.5) 76 1.20 (30.5) 2.16 (54.9)

9.91 (251.5) 79 1.22 (31.0) 2.14 (54.4)

9.87 (250.5) 82 1.24 (31.5) 2.12 (53.8)

9.83 (249.5) 85 1.26 (32.0) 2.10 (53.3)

9.79 (248.5) 88 1.28 (32.5) 2.08 (52.8)

9.75 (247.5) 91 1.30 (33.0) 2.06 (52.3)

9.71 (246.5) 94 1.32 (33.5) 2.04 (51.8)

9.67 (245.5) 97 1.34 (34.0) 2.02 (51.3)

9.63 (244.5) 100 1.36 (34.5) 2.00 (50.8)

9.59 (243.5) 103 1.38 (35.0) 1.98 (50.3)

9.55 (242.5) 106 1.40 (35.5) 1.96 (49.8)

9.51 (241.5) 109 1.42 (36.0) 1.94 (49.3)

9.47 (240.5) 112 1.44 (36.5) 1.92 (48.8)

9.43 (239.5) 115 1.46 (37.0) 1.90 (48.3)

9.39 (238.5) 118 1.48 (37.5) 1.88 (47.8)

9.35 (237.5) 121 1.50 (38.0) 1.86 (47.2)

Flange diameter is 12.36" (314 mm)

Undercarriage Code: 191

387

D9, 594 — 10.25" (260.4 mm)

Low Sprocket Machines

07.Low(348-387) 7/14/03 7:30 AM Page 387
