External Wear

Early hour wear pattern in Sealed Track

bushings are similar to those for Sealed

and Lubricated Track due to little or no

internal wear. Shown here are typical wear

patterns for late hour normal conditions

where internal wear has begun to have a

measurable pitch extension effect on the

external pattern.

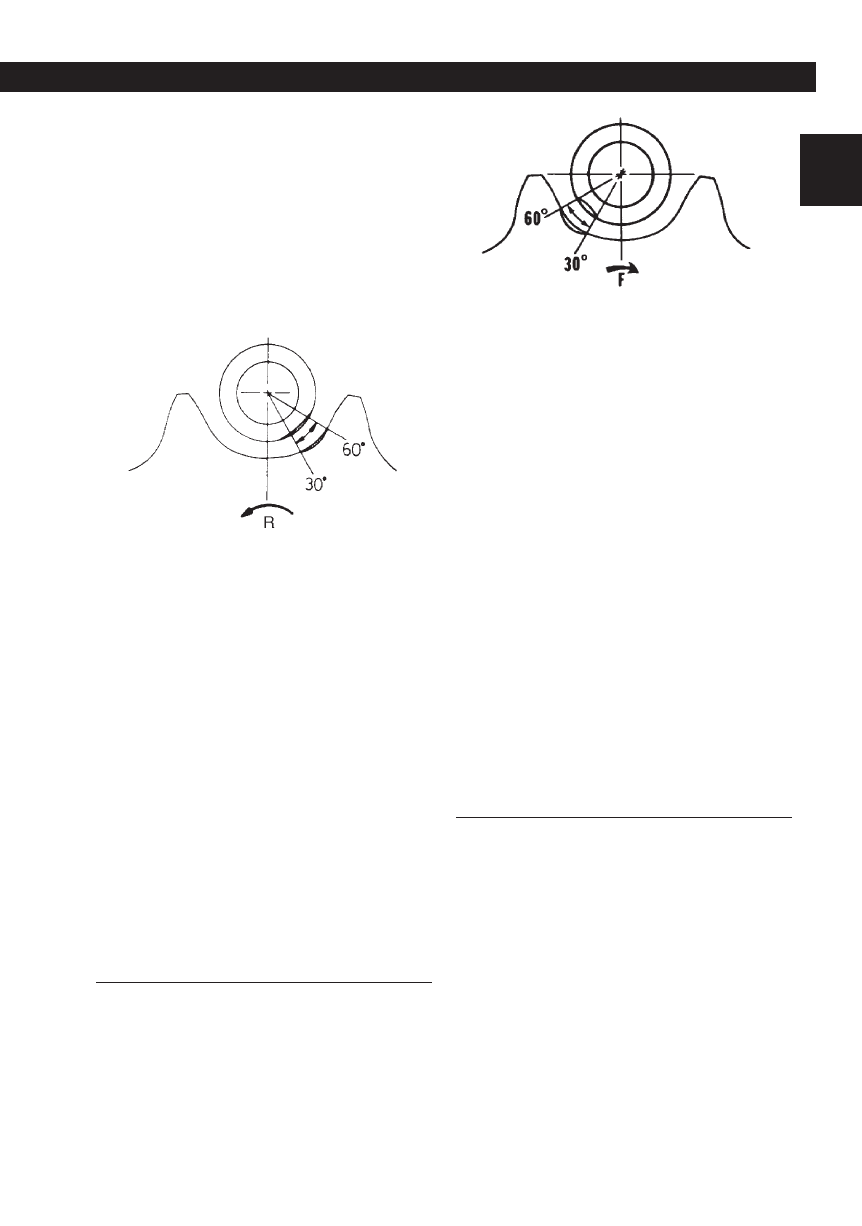

Reverse Drive Side Wear is Critical

(30° to 65° from vertical)

CAUSES: Rotation and sliding against

sprocket under abnormal load (characteris-

tic of track loaders).

ACCELERATORS: Horsepower, weight

and speed; impact, abrasiveness, tight

track and high reverse working loads.

EFFECT: Cracks will occur on reverse

drive sides which becomes FDS after

bushing turned and will reduce bushings

total turned life.

REMEDIES: Reduce or eliminate control-

lable accelerator variables. Do not delay

turn past service point (100 percent) if turn

is required. Also, do not drive machine

long distance in reverse.

Forward Drive Side Wear is Critical

(30° to 60° from vertical)

CAUSES: Sliding motion of bushing against

sprocket under abnormal forward loads

(characteristic of push loading, drawbar,

ripping and dozing application).

ACCELERATORS: Same as “RDS Critical”

described above plus uneven terrain and worn

rear rollers.

EFFECT: Bushing wall worn through at

same position as internal wear is occurring

and may result in need for turn before

service point to avoid cracking if internal

wear is critical. It will not have same

effect on after-turn life of bushing as does

critical RDS wear.

REMEDIES: Eliminate or reduce control-

lable accelerator variables such as tight

track and worn rear rollers. Turn early if

internal wear is critical to prevent bushing

cracking.

General Information

SEALED TRACK PINS & BUSHINGS
