184

D7H, D7R, 572R — 8.50" (215.9 mm)

Elevated Sprocket Machines

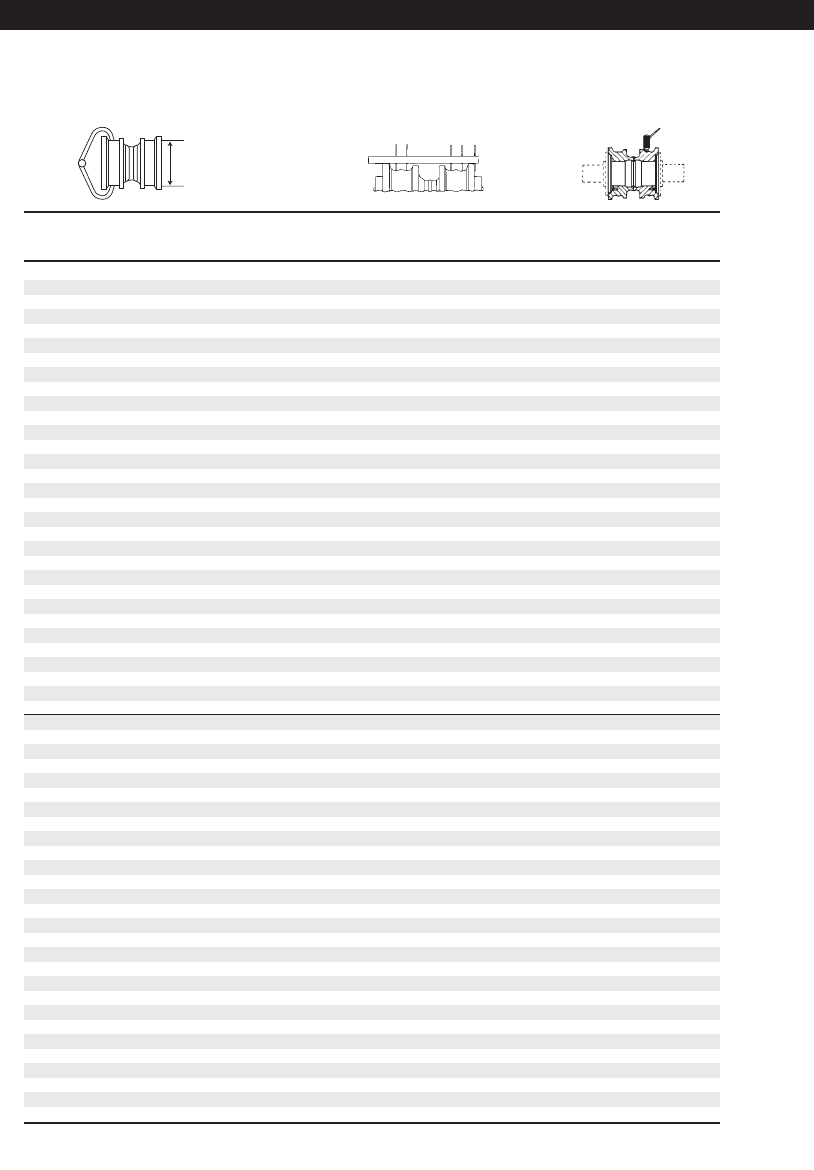

Tall Flange Track Rollers with End Collars

Tall Flange Double Flange Rollers

Use with Heavy Duty and Rotating Bushing Track

6I9239 & 40 Links

Caliper Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm) Inches (mm)

8.74 (222.0) 0 0.84 (21.5) 2.06 (52.3)

8.70 (221.0) 4 0.86 (22.0) 2.04 (51.8)

8.66 (220.0) 8 0.88 (22.5) 2.02 (51.3)

8.62 (219.0) 12 0.90 (23.0) 2.00 (50.8)

8.58 (218.0) 16 0.92 (23.5) 1.98 (50.3)

8.54 (217.0) 20 0.94 (24.0) 1.96 (49.8)

8.50 (216.0) 24 0.96 (24.5) 1.94 (49.3)

8.46 (215.0) 28 0.98 (25.0) 1.92 (48.8)

8.42 (214.0) 32 1.00 (25.5) 1.90 (48.3)

8.38 (213.0) 36 1.02 (26.0) 1.88 (47.8)

8.34 (212.0) 40 1.04 (26.5) 1.86 (47.2)

8.30 (211.0) 43 1.06 (27.0) 1.84 (46.7)

8.26 (210.0) 46 1.08 (27.5) 1.82 (46.2)

8.22 (209.0) 49 1.10 (28.0) 1.80 (45.7)

8.18 (208.0) 52 1.12 (28.5) 1.78 (45.2)

8.14 (207.0) 55 1.14 (29.0) 1.76 (44.7)

8.10 (205.5) 58 1.16 (29.5) 1.74 (44.2)

8.06 (204.5) 61 1.18 (30.0) 1.72 (43.7)

8.02 (203.5) 64 1.20 (30.5) 1.70 (43.2)

7.98 (202.5) 67 1.22 (31.0) 1.68 (42.7)

7.94 (201.5) 70 1.24 (31.5) 1.66 (42.2)

7.90 (200.5) 73 1.26 (32.0) 1.64 (41.7)

7.86 (199.5) 76 1.28 (32.5) 1.62 (41.1)

7.82 (198.5) 79 1.30 (33.0) 1.60 (40.6)

7.78 (197.5) 82 1.32 (33.5) 1.58 (40.1)

7.74 (196.5) 85 1.34 (34.0) 1.56 (39.6)

7.70 (195.5) 88 1.36 (34.5) 1.54 (39.1)

7.66 (194.5) 91 1.38 (35.0) 1.52 (38.6)

7.62 (193.5) 94 1.40 (35.5) 1.50 (38.1)

7.58 (192.5) 97 1.42 (36.0) 1.48 (37.6)

7.54 (191.5) 100 1.44 (36.5) 1.46 (37.1)

7.50 (190.5) 103 1.46 (37.0) 1.44 (36.6)

7.46 (189.5) 106 1.48 (37.5) 1.42 (36.1)

7.42 (188.5) 109 1.50 (38.0) 1.40 (35.6)

7.38 (187.5) 112 1.52 (38.5) 1.38 (35.1)

7.34 (186.5) 115 1.54 (39.0) 1.36 (34.5)

7.30 (185.5) 118 1.56 (39.5) 1.34 (34.0)

7.26 (184.5) 121 1.58 (40.0) 1.32 (33.5)

7.22 (183.5) 124 1.60 (40.5) 1.30 (33.0)

7.18 (182.5) 127 1.62 (41.0) 1.28 (32.5)

7.14 (181.5) 130 1.64 (41.5) 1.26 (32.0)

7.10 (180.5) 133 1.66 (42.0) 1.24 (31.5)

7.06 (179.5) 136 1.68 (42.5) 1.22 (31.0)

7.02 (178.5) 139 1.70 (43.0) 1.20 (30.5)

6.98 (177.5) 142 1.72 (43.5) 1.18 (30.0)

6.94 (176.5) 145 1.74 (44.0) 1.16 (29.5)

6.90 (175.5) 148 1.76 (44.5) 1.14 (29.0)

6.86 (174.0) 151 1.78 (45.0) 1.12 (28.4)

6.82 (173.0) 154 1.80 (45.5) 1.10 (27.9)

6.78 (172.0) 157 1.82 (46.0) 1.08 (27.4)

6.74 (171.0) 160 1.84 (46.5) 1.06 (26.9)

6.70 (170.0) 163 1.86 (47.0) 1.04 (26.4)

6.66 (169.0) 166 1.88 (48.0) 1.02 (25.9)

6.62 (168.0) 169 1.90 (48.5) 1.00 (25.4)

6.58 (167.0) 172 1.92 (49.0) 0.98 (24.9)

6.54 (166.0) 175 1.94 (49.5) 0.96 (24.4)

6.50 (165.0) 178 1.96 (50.0) 0.94 (23.9)

6.46 (164.0) 181 1.98 (50.5) 0.92 (23.4)

6.42 (163.0) 184 2.00 (51.0) 0.90 (22.9)

Flange diameter is 10.43" (265 mm)

Undercarriage Code: 169, 173

03.Elev.(146-197) 7/11/03 3:44 PM Page 184
