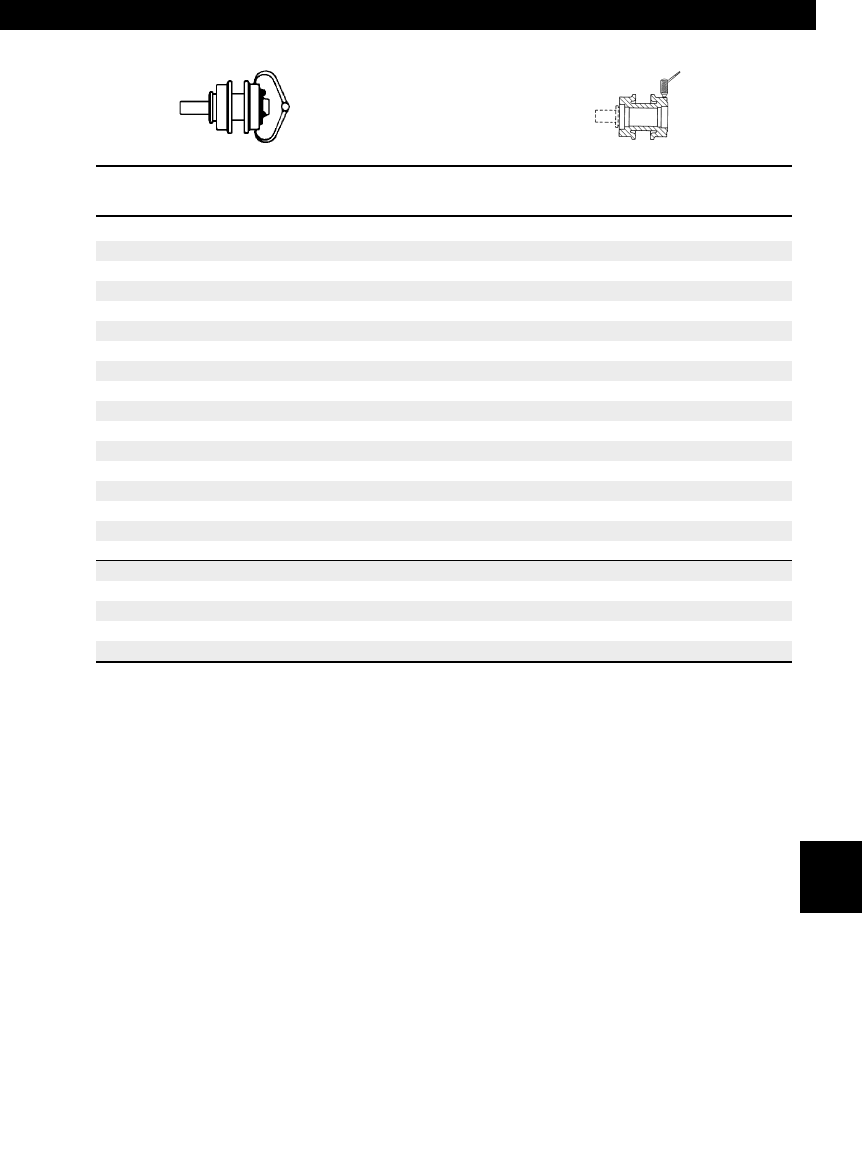

Carrier Rollers

Caliper Ultrasonic

Inches (mm) % Worn Inches (mm)

5.12 (130.0) 0 0.89 (22.6)

5.10 (129.5) 8 0.88 (22.4)

5.08 (129.0) 16 0.87 (22.1)

5.06 (128.5) 24 0.86 (21.8)

5.04 (128.0) 32 0.85 (21.6)

5.02 (127.5) 40 0.84 (21.3)

5.00 (127.0) 48 0.83 (21.1)

4.98 (126.5) 56 0.82 (20.8)

4.96 (126.0) 64 0.81 (20.6)

4.94 (125.5) 72 0.80 (20.3)

4.92 (125.0) 76 0.79 (20.1)

4.90 (124.5) 80 0.78 (19.8)

4.88 (124.0) 84 0.77 (19.6)

4.86 (123.5) 88 0.76 (19.3)

4.84 (123.0) 92 0.75 (19.1)

4.82 (122.5) 96 0.74 (18.8)

4.80 (122.0) 100 0.73 (18.5)

4.78 (121.5) 104 0.72 (18.3)

4.76 (121.0) 108 0.71 (18.0)

4.74 (120.5) 112 0.70 (17.8)

4.72 (120.0) 116 0.69 (17.5)

4.70 (119.5) 120 0.68 (17.3)

Undercarriage Code: 560

741

EL180, E180 — 6.91" (175.5 mm)

Excavators

12.Exc.(710-791) 7/14/03 8:34 AM Page 741
