Caterpillar Custom Track Service Handbook Page 136

Service Handbook

Page of 826

/ 826

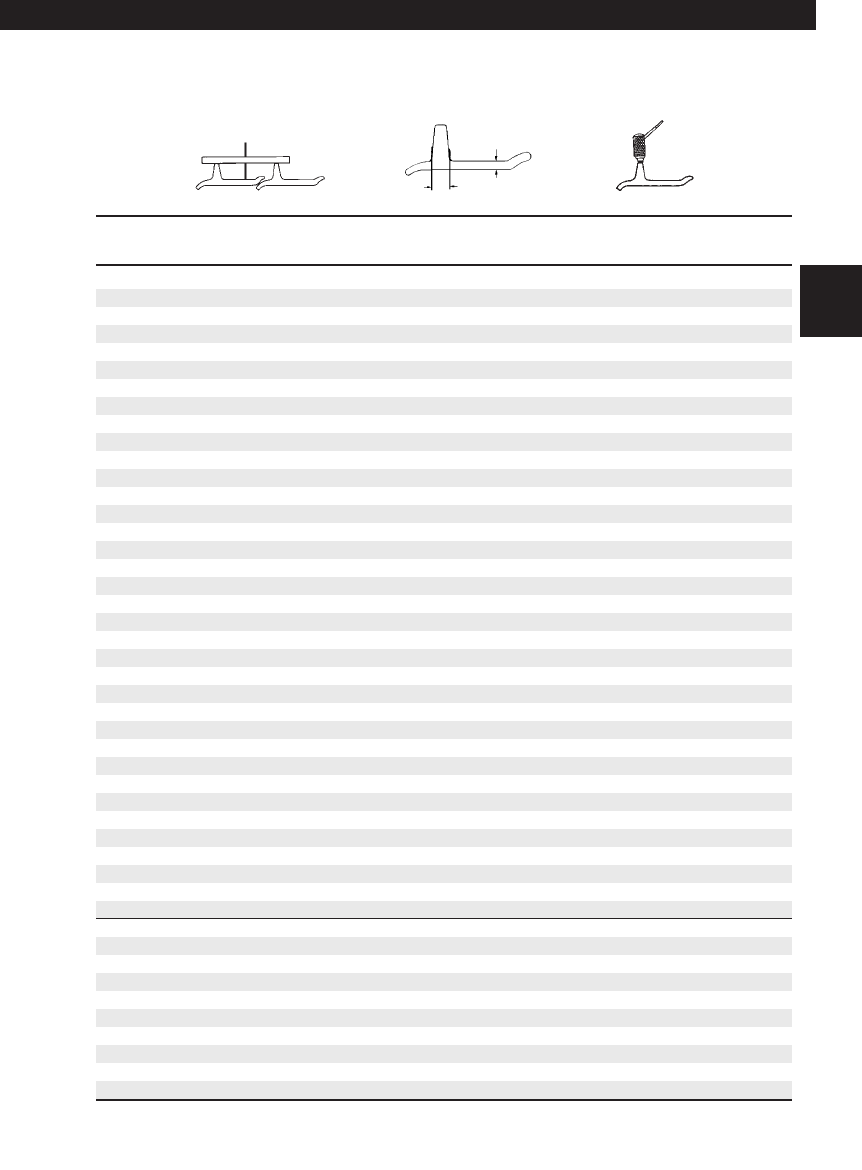

Track Shoes

Extreme Service

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

2.60 (66.0) 0 3.15 (80.0)

2.55 (65.0) 3 3.10 (78.7)

2.50 (63.5) 6 3.05 (77.5)

2.45 (62.0) 9 3.00 (76.2)

2.40 (61.0) 12 2.95 (74.9)

2.35 (59.5) 15 2.90 (73.7)

2.30 (58.5) 18 2.85 (72.4)

2.25 (57.0) 21 2.80 (71.1)

2.20 (56.0) 24 2.75 (69.9)

2.15 (54.5) 27 2.70 (68.6)

2.10 (53.5) 30 2.65 (67.3)

2.05 (52.0) 33 2.60 (66.0)

2.00 (51.0) 36 2.55 (64.8)

1.95 (49.5) 39 2.50 (63.5)

1.90 (48.5) 42 2.45 (62.2)

1.85 (47.0) 45 2.40 (61.0)

1.80 (45.5) 48 2.35 (59.7)

1.75 (44.5) 51 2.30 (58.4)

1.70 (43.0) 54 2.25 (57.2)

1.65 (42.0) 57 2.20 (55.9)

1.60 (40.5) 60 2.15 (54.6)

1.55 (39.5) 63 2.10 (53.3)

1.50 (38.0) 66 2.05 (52.1)

1.45 (37.0) 69 2.00 (50.8)

1.40 (35.5) 72 1.95 (49.5)

1.35 (34.5) 75 1.90 (48.3)

1.30 (33.0) 78 1.85 (47.0)

1.25 (32.0) 81 1.80 (45.7)

1.20 (30.5) 84 1.75 (44.5)

1.15 (29.0) 87 1.70 (43.2)

1.10 (28.0) 90 1.65 (41.9)

1.05 (26.5) 92 1.60 (40.6)

1.00 (25.5) 94 1.55 (39.4)

0.95 (24.0) 96 1.50 (38.1)

0.90 (23.0) 98 1.45 (36.8)

0.85 (21.5) 100 1.40 (35.6)

0.80 (20.5) 102 1.35 (34.3)

0.75 (19.0) 104 1.30 (33.0)

0.70 (18.0) 106 1.25 (31.8)

0.65 (16.5) 108 1.20 (30.5)

0.60 (15.0) 110 1.15 (29.2)

0.55 (14.0) 112 1.10 (27.9)

0.50 (12.5) 114 1.05 (26.7)

0.45 (11.5) 116 1.00 (25.4)

0.40 (10.0) 118 0.95 (24.1)

0.35 (9.0) 120 0.90 (22.9)

Undercarriage Code: 132, 133, 1338, 137, 140, 1408, 141, 1411, 144, 146, 1461, 280, 281

135

D5H, D6M, D6N, 517 — 7.50" (190 mm)

Elevated Sprocket Machines

.55" (14 mm)

1.14" (29 mm)

02.Elev.(110-145) 7/11/03 3:43 PM Page 135
