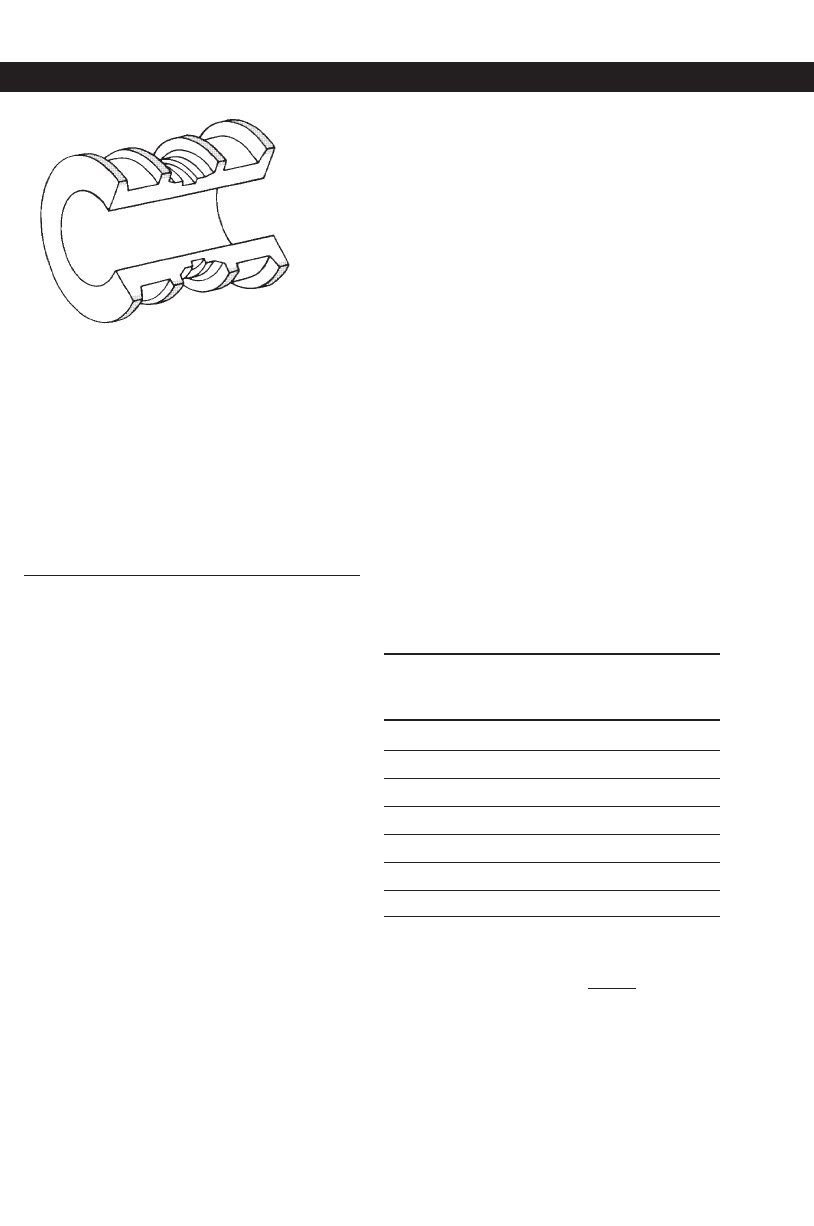

Flange Top Wear

CAUSES: Rolling and sliding contact

with link pin bosses after loss of clearance.

ACCELERATORS: Same as “Tread Wear.”

EFFECTS: Reduces roller rebuildability.

Damages link pin bosses with resulting

pin retention and rebuildability loss.

REMEDIES: Same as “Roller Tread Wear.”

Roller Welding, Swapping,

or Replacement Guidelines

Weldability

The main criteria determining roller tread

rebuildability is outer and/or inner flange

condition. Since no wear chart type infor-

mation is possible and measurements are

difficult, the condition of the flange must be

described in subjective, comparative terms.

Rollers can be welded if the maximum

tread wear is between 70-110 percent, but

100 percent represents the optimum.

The Undercarriage Reconditioning Cost

Analysis computer program (SEBD0700) is

available to analyze the costs and profitabil-

ity of welding undercarriage components.

Roller Swapping

Due to the expected unbalanced wear rate

between rear, front and center rollers

under many conditions, it’s often desirable

to swap rollers to and from front and/or

rear positions to center position midway

through their average wear lives. One con-

venient time for this is when pin and

bushing or shoe maintenance work is

being done. The result will be to have all

rollers reach service limits at about the

same time.

The cost of roller swapping must be

compared with this end benefit. The

practice should be considered when the

percent worn of the most worn rollers

exceeds the percent worn of the least worn

rollers by a factor of 1.3.

Example of situation where roller swapping

at bushing turn time should be considered:

LINKS: 40 percent worn

BUSHINGS: 80 percent worn

ROLLERS:

ORIGINAL MOVE TO

POSITION % WORN TYPE POSITION

NUMBER

Front (1) 50% D.F. 4

2 40% D.F. No change

3 30% S.F. Rear (7)

4 30% D.F. Front (1)

5 40% S.F. No Change

6 40% D.F. No Change

Rear (7) 50% S.F. 3

Average % Worn 40% (Equal Links 40% Worn)

Most worn roller exceeds least worn roller

percent worn by over 1.3 (50% = 1.66)

30%

If not swapped, front and rear rollers will

be critical when link is only 80 percent

worn and will cause pin boss to roller

flange interference when link is 90 percent

worn.

TRACK ROLLERS

General Information
