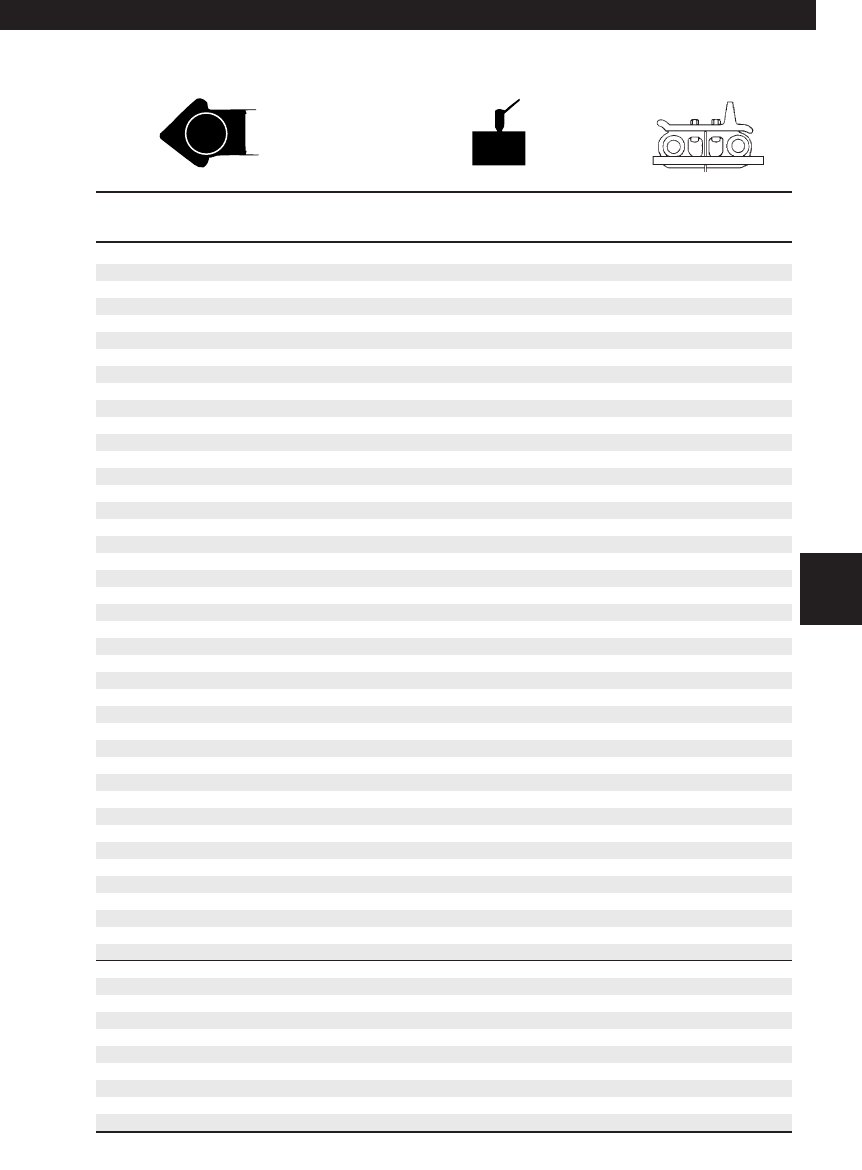

Bushings for Rotating Bushing Track

Use with 195-6515 & 16 Links

Caliper Ultrasonic Depth Gauge

Inches (mm) % Worn Inches (mm) Inches (mm)

2.86 (72.6) 0 0.55 (14.0) 3.56 (90.4)

2.84 (72.1) 4 0.54 (13.7) 3.55 (90.2)

2.82 (71.6) 8 0.53 (13.5) 3.54 (89.9)

2.80 (71.1) 12 0.52 (13.2) 3.53 (89.7)

2.78 (70.6) 16 0.51 (13.0) 3.52 (89.4)

2.76 (70.1) 20 0.50 (12.7) 3.51 (89.2)

2.74 (69.6) 24 0.49 (12.4) 3.50 (88.9)

2.72 (69.1) 28 0.48 (12.2) 3.49 (88.6)

2.70 (68.6) 32 0.47 (11.9) 3.48 (88.4)

2.68 (68.1) 36 0.46 (11.7) 3.47 (88.1)

2.66 (67.6) 38 0.45 (11.4) 3.46 (87.9)

2.64 (67.1) 40 0.44 (11.2) 3.45 (87.6)

2.62 (66.5) 42 0.43 (10.9) 3.44 (87.4)

2.60 (66.0) 44 0.42 (10.7) 3.43 (87.1)

2.58 (65.5) 46 0.41 (10.4) 3.42 (86.9)

2.56 (65.0) 48 0.40 (10.2) 3.41 (86.6)

2.54 (64.5) 50 0.39 (9.9) 3.40 (86.4)

2.52 (64.0) 52 0.38 (9.7) 3.39 (86.1)

2.50 (63.5) 54 0.37 (9.4) 3.38 (85.9)

2.48 (63.0) 56 0.36 (9.1) 3.37 (85.6)

2.46 (62.5) 58 0.35 (8.9) 3.36 (85.3)

2.44 (62.0) 60 0.34 (8.6) 3.35 (85.1)

2.42 (61.5) 62 0.33 (8.4) 3.34 (84.8)

2.40 (61.0) 64 0.32 (8.1) 3.33 (84.6)

2.38 (60.5) 66 0.31 (7.9) 3.32 (84.3)

2.36 (59.9) 68 0.30 (7.6) 3.31 (84.1)

2.34 (59.4) 70 0.29 (7.4) 3.30 (83.8)

2.32 (58.9) 72 0.28 (7.1) 3.29 (83.6)

2.30 (58.4) 74 0.27 (6.9) 3.28 (83.3)

2.28 (57.9) 76 0.26 (6.6) 3.27 (83.1)

2.26 (57.4) 78 0.25 (6.3) 3.26 (82.8)

2.24 (56.9) 80 0.24 (6.1) 3.25 (82.6)

2.22 (56.4) 82 0.23 (5.8) 3.24 (82.3)

2.20 (55.9) 84 0.22 (5.6) 3.23 (82.0)

2.18 (55.4) 86 0.21 (5.3) 3.22 (81.8)

2.16 (54.9) 88 0.20 (5.1) 3.21 (81.5)

2.14 (54.4) 90 0.19 (4.8) 3.20 (81.3)

2.12 (53.8) 92 0.18 (4.6) 3.19 (81.0)

2.10 (53.3) 94 0.17 (4.3) 3.18 (80.8)

2.08 (52.8) 96 0.16 (4.1) 3.17 (80.5)

2.06 (52.3) 98 0.15 (3.8) 3.16 (80.3)

2.04 (51.8) 100 0.14 (3.6) 3.15 (80.0)

2.02 (51.3) 102 0.13 (3.3) 3.14 (79.8)

2.00 (50.8) 104 0.12 (3.0) 3.13 (79.5)

1.98 (50.3) 106 0.11 (2.8) 3.12 (79.2)

1.96 (49.8) 108 0.10 (2.5) 3.11 (79.0)

1.94 (49.3) 110 0.09 (2.3) 3.10 (78.7)

1.92 (48.8) 112 0.08 (2.0) 3.09 (78.5)

1.90 (48.3) 114 0.07 (1.8) 3.08 (78.2)

1.88 (47.8) 116 0.06 (1.5) 3.07 (78.0)

1.86 (47.2) 118 0.05 (1.3) 3.06 (77.7)

1.84 (46.7) 120 0.04 (1.0) 3.05 (77.5)

Undercarriage Code: 365

463

Hydrostatic Loaders

963 — 8.00" (203.2 mm)

09.Hydro(426-487) 7/14/03 7:32 AM Page 463
