Caterpillar Custom Track Service Handbook Page 703

Service Handbook

Page of 826

/ 826

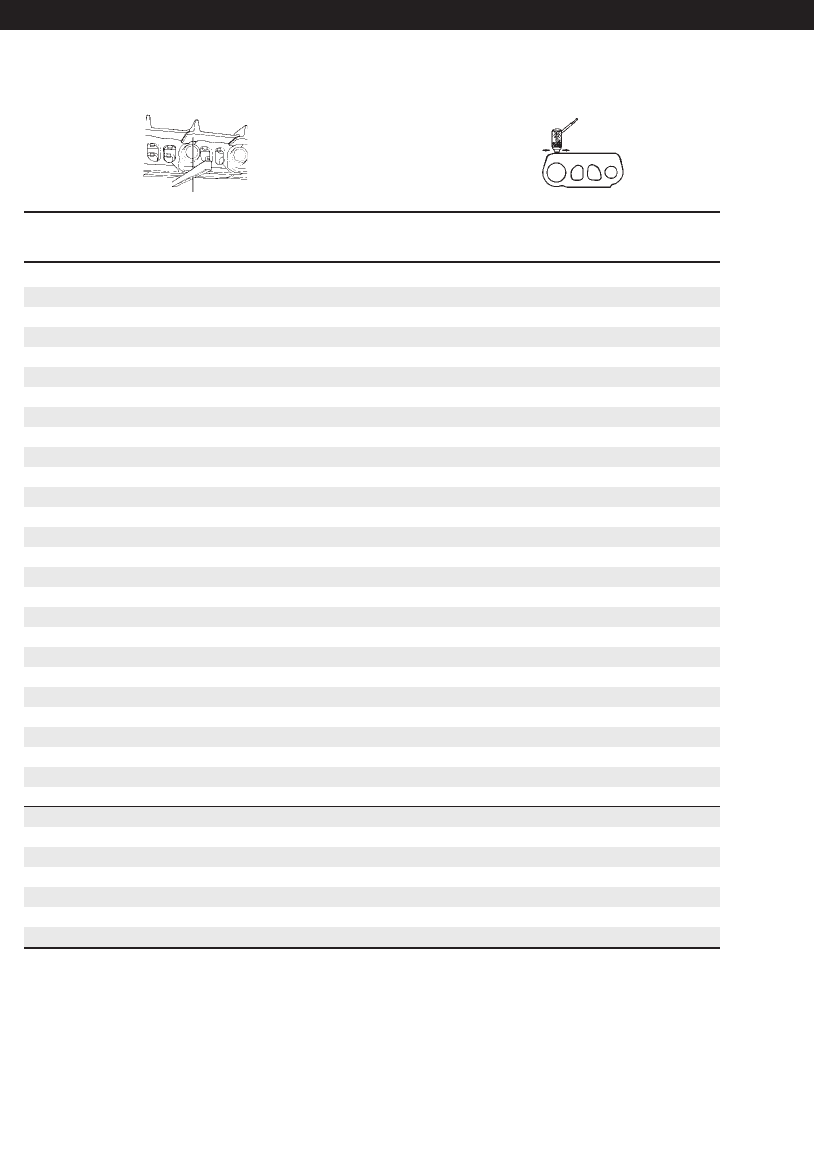

Track Links

8K4754 & 56

9G6083 & 84

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

5.41 (137.5) 0 1.61 (40.9)

5.39 (137.0) 4 1.59 (40.4)

5.37 (136.5) 8 1.57 (39.9)

5.35 (136.0) 12 1.55 (39.4)

5.33 (135.5) 16 1.53 (38.9)

5.31 (135.0) 20 1.51 (38.4)

5.29 (134.5) 24 1.49 (37.8)

5.27 (134.0) 28 1.47 (37.3)

5.25 (133.5) 32 1.45 (36.8)

5.23 (133.0) 36 1.43 (36.3)

5.21 (132.5) 40 1.41 (35.8)

5.19 (132.0) 44 1.39 (35.3)

5.17 (131.5) 48 1.37 (34.8)

5.15 (131.0) 52 1.35 (34.3)

5.13 (130.5) 56 1.33 (33.8)

5.11 (130.0) 60 1.31 (33.3)

5.09 (129.5) 64 1.29 (32.8)

5.07 (129.0) 68 1.27 (32.3)

5.05 (128.5) 72 1.25 (31.8)

5.03 (128.0) 76 1.23 (31.2)

5.01 (127.5) 80 1.21 (30.7)

4.99 (126.5) 84 1.19 (30.2)

4.97 (126.0) 88 1.17 (29.7)

4.95 (125.5) 91 1.15 (29.2)

4.93 (125.0) 94 1.13 (28.7)

4.91 (124.5) 97 1.11 (28.2)

4.89 (124.0) 100 1.09 (27.7)

4.87 (123.5) 103 1.07 (27.2)

4.85 (123.0) 106 1.05 (26.7)

4.83 (122.5) 109 1.03 (26.2)

4.81 (122.0) 112 1.01 (25.7)

4.79 (121.5) 115 0.99 (25.1)

4.77 (121.0) 118 0.97 (24.6)

4.75 (120.5) 121 0.95 (24.1)

Undercarriage Code: 490

702

245 — 9.00" (228.6 mm)

Excavators

11.Exc.(608-709) 7/14/03 7:33 AM Page 702
