Caterpillar Custom Track Service Handbook Page 758

Service Handbook

Page of 826

/ 826

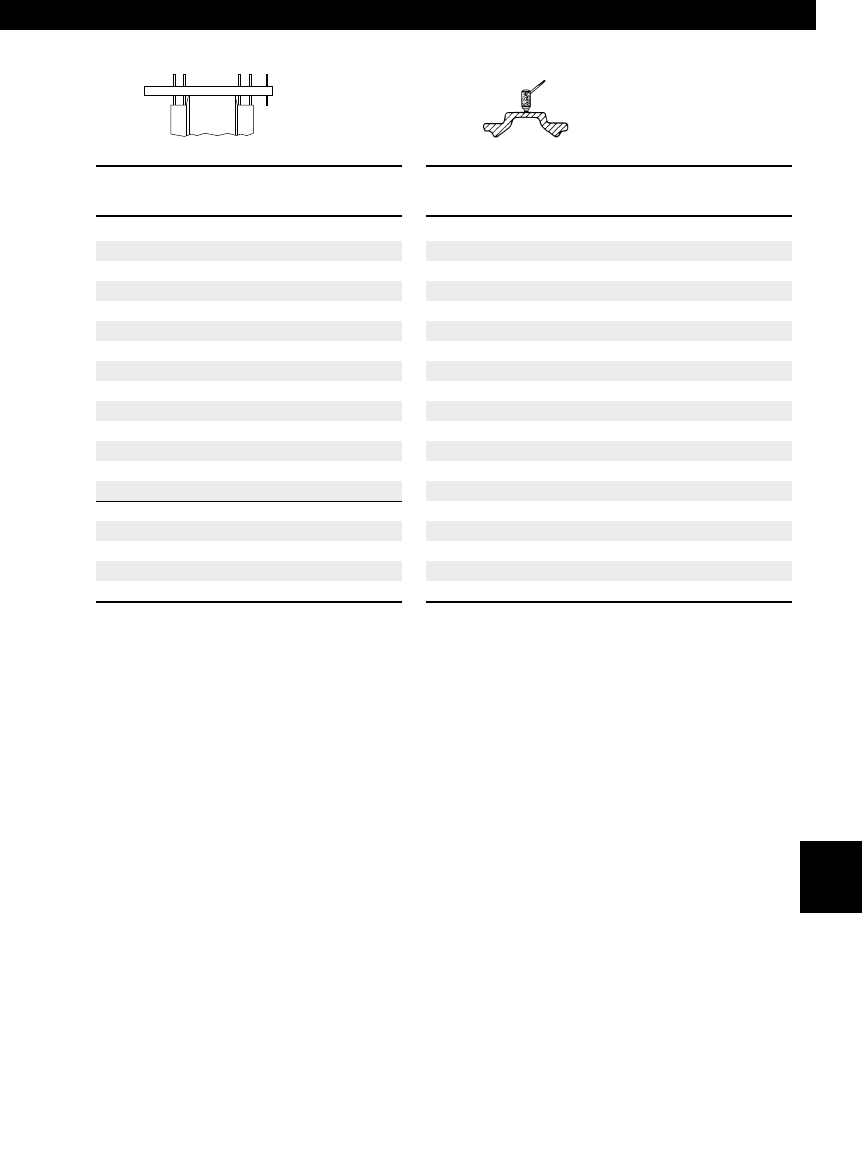

Idlers

Depth Gauge Ultrasonic Center Flange Wear

Inches (mm) % Worn Inches (mm) Inches (mm)

0.78 (20.0) 0 0.74 (18.8) 0.00 (0.0)

0.80 (20.5) 12 0.72 (18.3) 0.02 (0.5)

0.82 (21.0) 24 0.70 (17.8) 0.04 (1.0)

0.84 (21.5) 36 0.68 (17.3) 0.06 (1.5)

0.86 (22.0) 48 0.66 (16.8) 0.08 (2.0)

0.88 (22.5) 60 0.64 (16.3) 0.10 (2.5)

0.90 (23.0) 72 0.62 (15.7) 0.12 (3.0)

0.92 (23.5) 76 0.60 (15.2) 0.14 (3.5)

0.94 (24.0) 80 0.58 (14.7) 0.16 (4.0)

0.96 (24.5) 84 0.56 (14.2) 0.18 (4.5)

0.98 (25.0) 88 0.54 (13.7) 0.20 (5.0)

1.00 (25.5) 92 0.52 (13.2) 0.22 (5.5)

1.02 (26.0) 96 0.50 (12.7) 0.24 (6.0)

1.04 (26.5) 100 0.48 (12.2) 0.26 (6.5)

1.06 (27.0) 104 0.46 (11.7) 0.28 (7.0)

1.08 (27.5) 108 0.44 (11.2) 0.30 (7.5)

1.10 (28.0) 112 0.42 (10.7) 0.32 (8.0)

1.12 (28.5) 116 0.40 (10.2) 0.34 (8.5)

1.14 (29.0) 120 0.38 (9.7) 0.36 (9.0)

Flange width: 3.19" (81 mm) NOTE: Ultrasonic measurement is to determine flange

wear only.

Undercarriage Code: 590

757

EL240B, E240B, EL240, E240 — 7.50" (190 mm)

Excavators

12.Exc.(710-791) 7/14/03 8:34 AM Page 757
