Caterpillar Custom Track Service Handbook Page 612

Service Handbook

Page of 826

/ 826

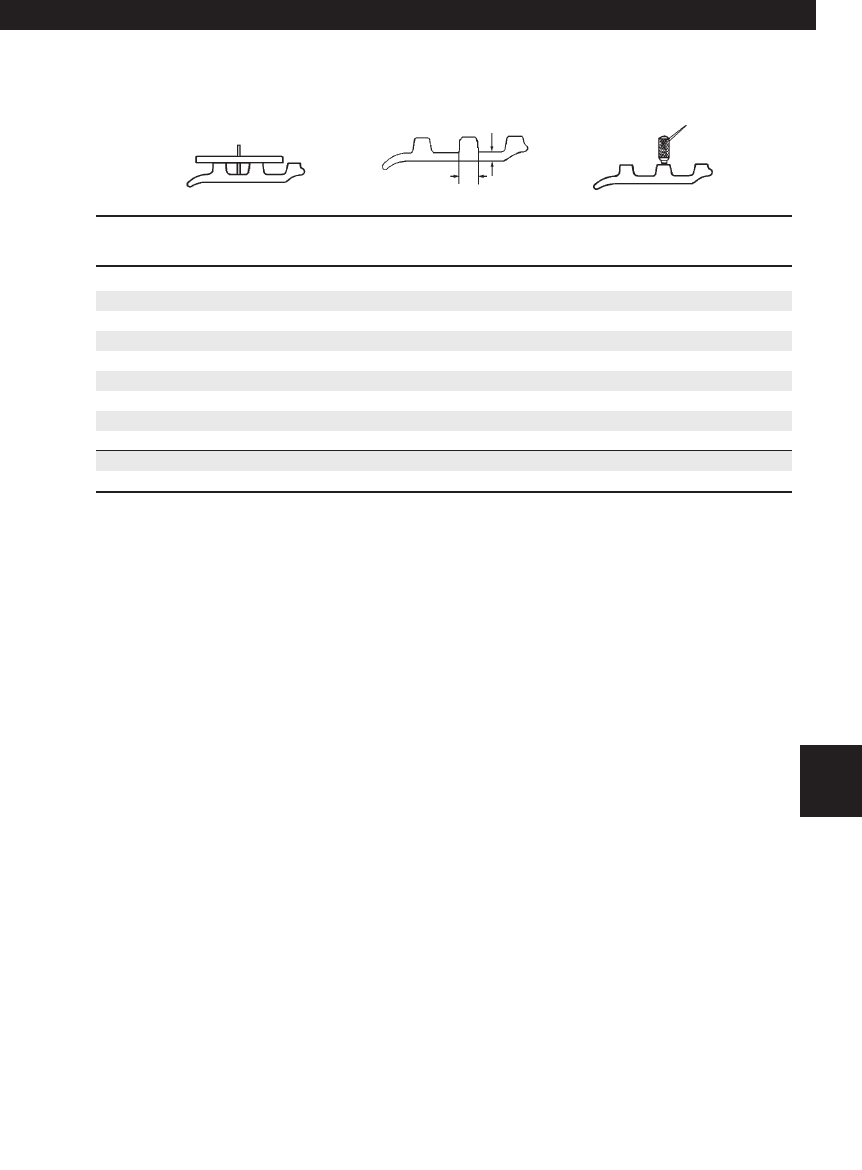

Track Shoes

Triple Grouser

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

0.65 (16.5) 0 1.15 (29.2)

0.60 (15.0) 13 1.10 (27.9)

0.55 (14.0) 26 1.05 (26.7)

0.50 (12.5) 39 1.00 (25.4)

0.45 (11.5) 52 0.95 (24.1)

0.40 (10.0) 64 0.90 (22.9)

0.35 (9.0) 76 0.85 (21.6)

0.30 (7.5) 88 0.80 (20.3)

0.25 (6.5) 100 0.75 (19.1)

0.20 (5.0) 112 0.70 (17.8)

0.15 (4.0) 124 0.65 (16.5)

Undercarriage Code: 401, 402, 411, 412, 421, 422

611

205, 211, 213 — 6.75" (171.5 mm)

Excavators

.47" (11.9 mm)

.85" (21.6 mm)

11.Exc.(608-709) 7/14/03 7:33 AM Page 611
