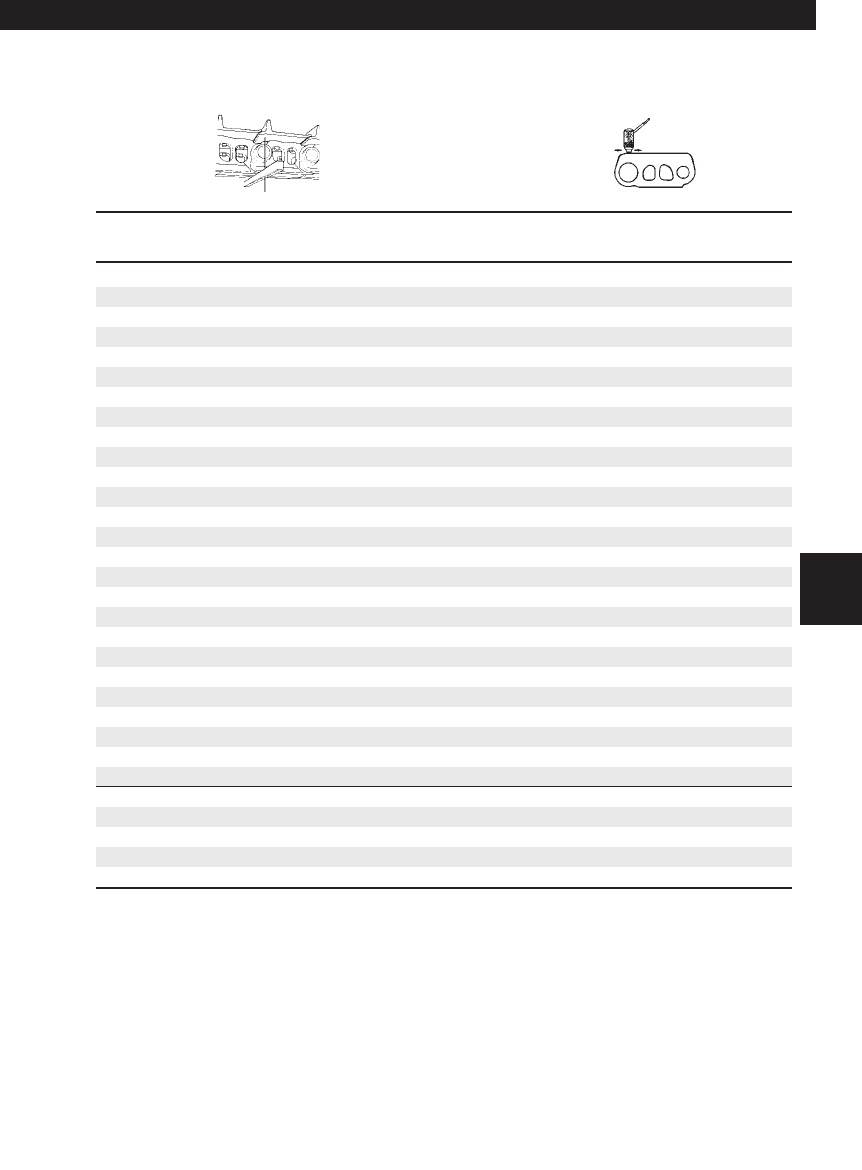

Track Links

Rotating Bushing Track

6I9239 & 40

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

5.50 (139.5) 0 1.66 (42.2)

5.48 (139.0) 4 1.64 (41.7)

5.46 (138.5) 8 1.62 (41.1)

5.44 (138.0) 12 1.60 (40.6)

5.42 (137.5) 16 1.58 (40.1)

5.40 (137.0) 20 1.56 (39.6)

5.38 (136.5) 24 1.54 (39.1)

5.36 (136.0) 28 1.52 (38.6)

5.34 (135.5) 32 1.50 (38.1)

5.32 (135.0) 36 1.48 (37.6)

5.30 (134.5) 40 1.46 (37.1)

5.28 (134.0) 44 1.44 (36.6)

5.26 (133.5) 48 1.42 (36.1)

5.24 (133.0) 52 1.40 (35.6)

5.22 (132.5) 56 1.38 (35.1)

5.20 (132.0) 60 1.36 (34.5)

5.18 (131.5) 64 1.34 (34.0)

5.16 (131.0) 68 1.32 (33.5)

5.14 (130.5) 72 1.30 (33.0)

5.12 (130.0) 76 1.28 (32.5)

5.10 (129.5) 80 1.26 (32.0)

5.08 (129.0) 84 1.24 (31.5)

5.06 (128.5) 88 1.22 (31.0)

5.04 (128.0) 92 1.20 (30.5)

5.02 (127.5) 96 1.18 (30.0)

5.00 (127.0) 100 1.16 (29.5)

4.98 (126.5) 104 1.14 (29.0)

4.96 (126.0) 108 1.12 (28.4)

4.94 (125.5) 112 1.10 (27.9)

4.92 (125.0) 116 1.08 (27.4)

4.90 (124.5) 120 1.06 (26.9)

Undercarriage Code: 375

473

Hydrostatic Loaders

973 — 8.50" (215.9 mm)

09.Hydro(426-487) 7/14/03 7:32 AM Page 473
