Caterpillar Custom Track Service Handbook Page 323

Service Handbook

Page of 826

/ 826

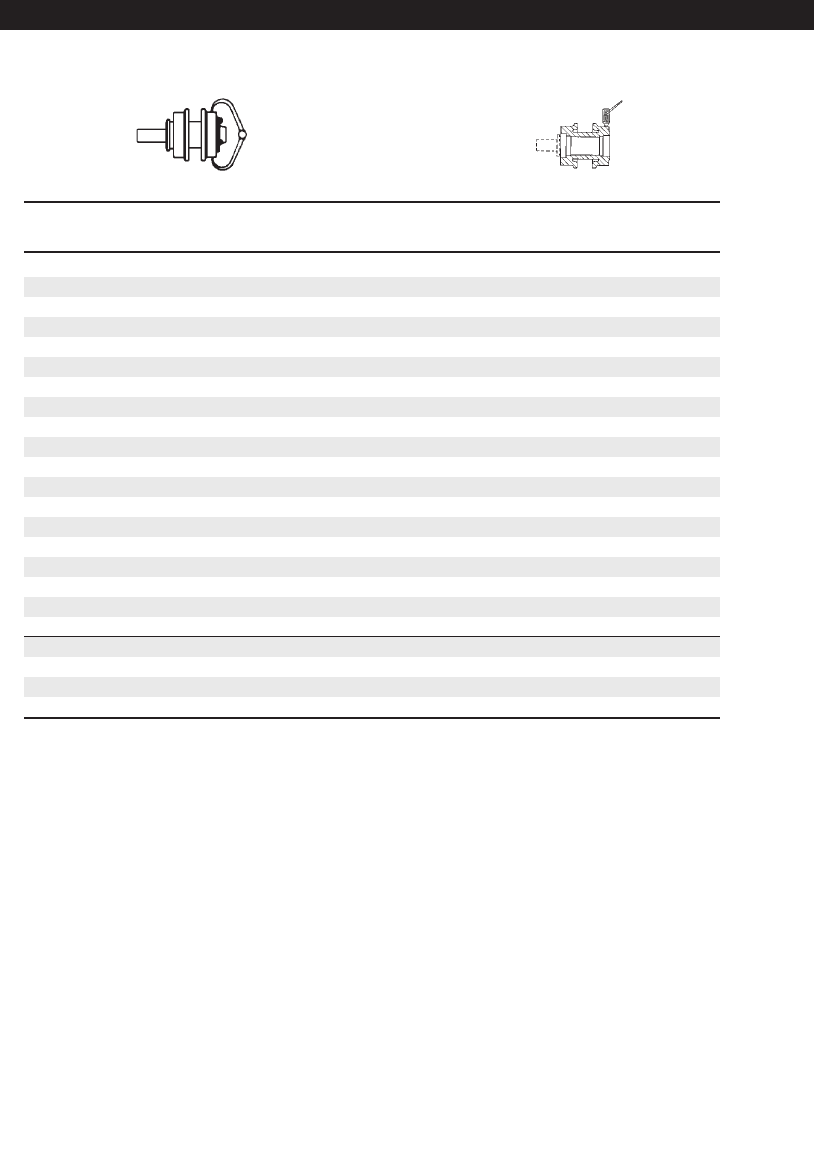

Carrier Rollers

Use with 3P Links

Caliper Ultrasonic

Inches (mm) % Worn Inches (mm)

6.75 (171.5) 0 1.54 (39.1)

6.71 (170.5) 7 1.52 (38.6)

6.67 (169.5) 14 1.50 (38.1)

6.63 (168.5) 21 1.48 (37.6)

6.59 (167.5) 28 1.46 (37.1)

6.55 (166.5) 35 1.44 (36.6)

6.51 (165.5) 40 1.42 (36.1)

6.47 (164.5) 45 1.40 (35.6)

6.43 (163.5) 50 1.38 (35.1)

6.39 (162.5) 55 1.36 (34.5)

6.35 (161.5) 60 1.34 (34.0)

6.31 (160.5) 65 1.32 (33.5)

6.27 (159.5) 70 1.30 (33.0)

6.23 (158.0) 75 1.28 (32.5)

6.19 (157.0) 80 1.26 (32.0)

6.15 (156.0) 85 1.24 (31.5)

6.11 (155.0) 90 1.22 (31.0)

6.07 (154.0) 95 1.20 (30.5)

6.03 (153.0) 100 1.18 (30.0)

5.99 (152.0) 105 1.16 (29.5)

5.95 (151.0) 110 1.14 (29.0)

5.91 (150.0) 115 1.12 (28.4)

5.87 (149.0) 120 1.10 (27.9)

Undercarriage Code: 105, 130, 331, 350

322

D5, 955, 951, 561 — 6.91" (175.5 mm)

Low Sprocket Machines

05.Low(246-325) 7/11/03 3:52 PM Page 322
