Caterpillar Custom Track Service Handbook Page 356

Service Handbook

Page of 826

/ 826

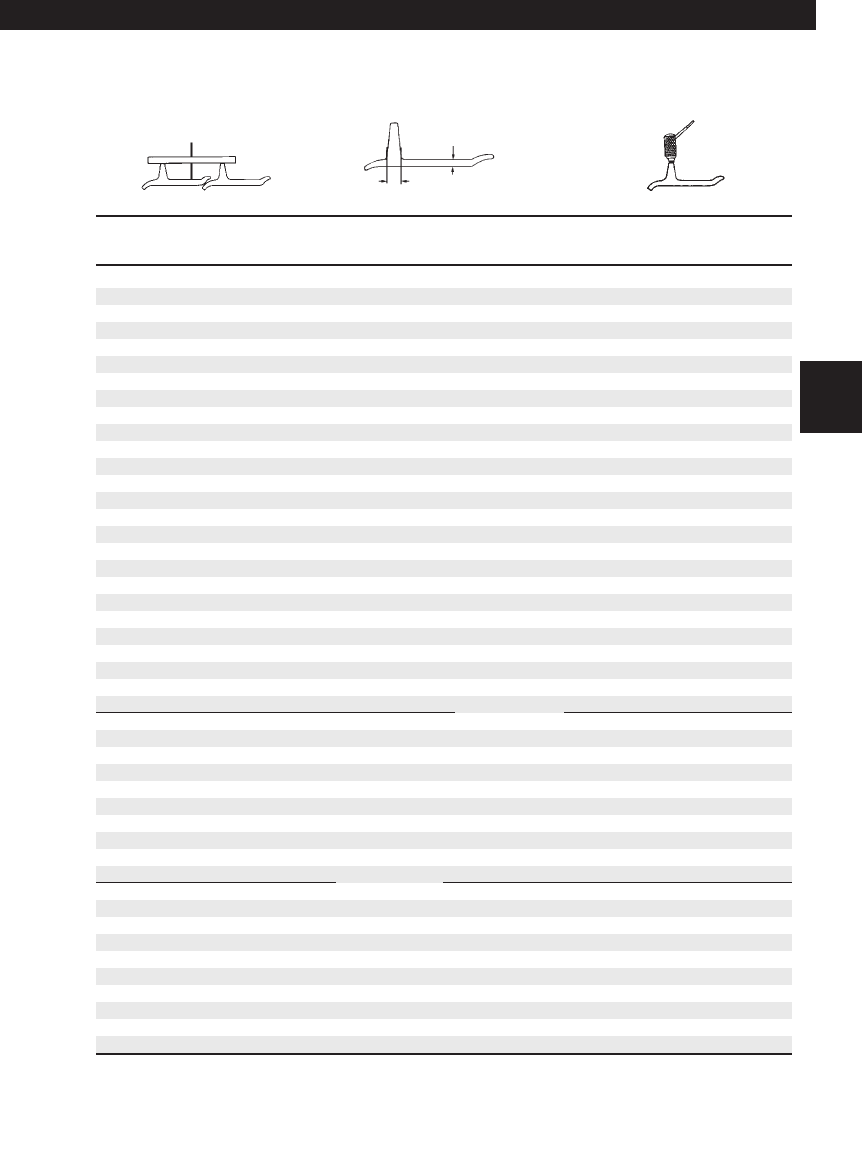

Track Shoes

Moderate Service

Depth Gauge High Impact Low Impact Ultrasonic

Inches (mm) % Worn % Worn Inches (mm)

2.75 (70.0) 0 0 3.30 (83.8)

2.70 (68.5) 4 3 3.25 (82.6)

2.65 (67.5) 8 6 3.20 (81.3)

2.60 (66.0) 12 9 3.15 (80.0)

2.55 (65.0) 16 12 3.10 (78.7)

2.50 (63.5) 20 15 3.05 (77.5)

2.45 (62.0) 24 18 3.00 (76.2)

2.40 (61.0) 28 21 2.95 (74.9)

2.35 (59.5) 32 24 2.90 (73.7)

2.30 (58.5) 36 27 2.85 (72.4)

2.25 (57.0) 40 30 2.80 (71.1)

2.20 (56.0) 44 33 2.75 (69.9)

2.15 (54.5) 48 36 2.70 (68.6)

2.10 (53.5) 52 39 2.65 (67.3)

2.05 (52.0) 56 42 2.60 (66.0)

2.00 (51.0) 60 45 2.55 (64.8)

1.95 (49.5) 64 48 2.50 (63.5)

1.90 (48.5) 68 51 2.45 (62.2)

1.85 (47.0) 72 54 2.40 (61.0)

1.80 (45.5) 76 57 2.35 (59.7)

1.75 (44.5) 80 60 2.30 (58.4)

1.70 (43.0) 84 63 2.25 (57.2)

1.65 (42.0) 88 66 2.20 (55.9)

1.60 (40.5) 92 69 2.15 (54.6)

1.55 (39.5) 96 72 2.10 (53.3)

1.50 (38.0) 100 75 2.05 (52.1)

1.45 (37.0) 104 78 2.00 (50.8)

1.40 (35.5) 108 81 1.95 (49.5)

1.35 (34.5) 112 84 1.90 (48.3)

1.30 (33.0) 116 87 1.85 (47.0)

1.25 (32.0) 120 90 1.80 (45.7)

1.20 (30.5) 92 1.75 (44.5)

1.15 (29.0) 94 1.70 (43.2)

1.10 (28.0) 96 1.65 (41.9)

1.05 (26.5) 98 1.60 (40.6)

1.00 (25.5) 100 1.55 (39.4)

0.95 (24.0) 102 1.50 (38.1)

0.90 (23.0) 104 1.45 (36.8)

0.85 (21.5) 106 1.40 (35.6)

0.80 (20.5) 108 1.35 (34.3)

0.75 (19.0) 110 1.30 (33.0)

0.70 (18.0) 112 1.25 (31.8)

0.65 (16.5) 114 1.20 (30.5)

0.60 (15.0) 116 1.15 (29.2)

0.55 (14.0) 118 1.10 (27.9)

0.50 (12.5) 120 1.05 (26.7)

Undercarriage Code: 161, 165, 381, 383

355

D7, 977, 571, 572 — 8.50" (215.9 mm)

Low Sprocket Machines

.56" (14 mm)

1.09" (27.8 mm)

07.Low(348-387) 7/14/03 7:30 AM Page 355
