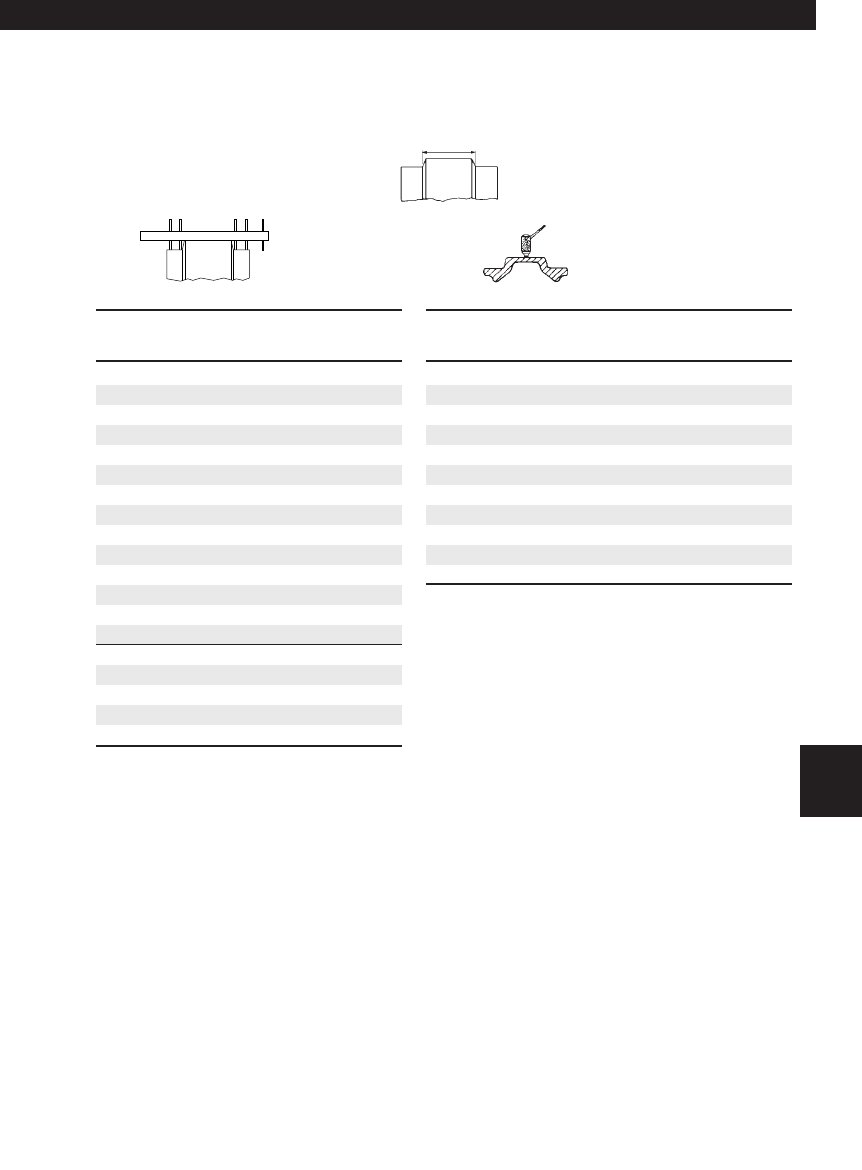

Caterpillar Custom Track Service Handbook Page 624

Service Handbook

Page of 826

/ 826

Idlers

5C6602

2.09" (53 mm)

Depth Gauge Ultrasonic Center Flange Wear

Inches (mm) % Worn Inches (mm) Inches (mm)

0.62 (15.5) 0 0.22 (5.6) 0.00 (0.0)

0.64 (16.5) 10 0.20 (5.1) 0.02 (0.5)

0.66 (17.0) 20 0.18 (4.6) 0.04 (1.0)

0.68 (17.5) 30 0.16 (4.1) 0.06 (1.5)

0.70 (18.0) 40 0.14 (3.6) 0.08 (2.0)

0.72 (18.5) 50 0.12 (3.0) 0.10 (2.5)

0.74 (19.0) 60 0.10 (2.5) 0.12 (3.0)

0.76 (19.5) 70 0.08 (2.0) 0.14 (3.5)

0.78 (20.0) 80 0.06 (1.5) 0.16 (4.0)

0.80 (20.5) 84 0.04 (1.0) 0.18 (4.5)

0.82 (21.0) 88 0.02 (0.5) 0.20 (5.0)

0.84 (21.5) 92 NOTE: Ultrasonic measurement is to determine

0.86 (22.0) 96

flange wear only.

0.88 (22.5) 100

0.90 (23.0) 104

0.92 (23.5) 108

0.94 (24.0) 112

0.96 (24.5) 116

0.98 (25.0) 120

Flange width: 2.09" (53 mm)

Undercarriage Code: 430

623

215 — 6.75" (171.5 mm)

Excavators

11.Exc.(608-709) 7/14/03 7:33 AM Page 623
