Caterpillar Custom Track Service Handbook Page 674

Service Handbook

Page of 826

/ 826

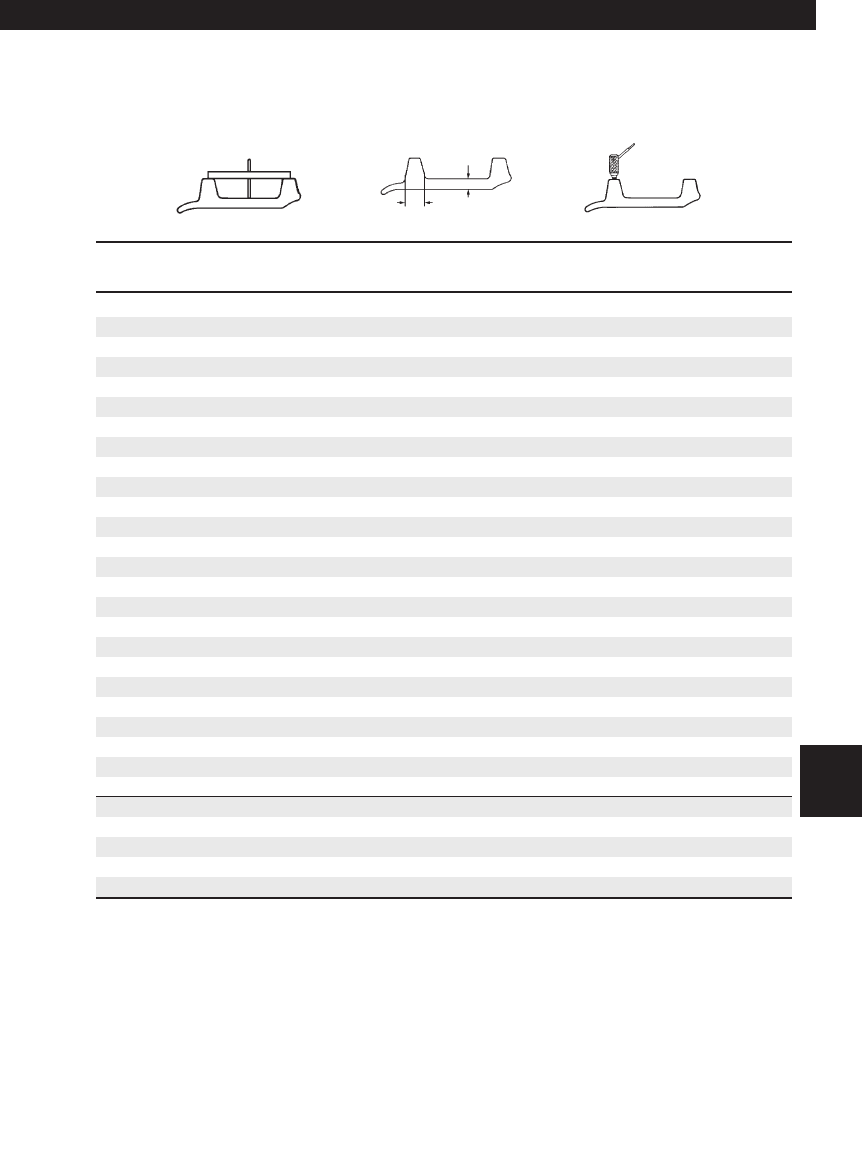

Track Shoes

Double Grouser

Current

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

1.95 (49.5) 0 2.55 (64.8)

1.90 (48.5) 5 2.50 (63.5)

1.85 (47.0) 10 2.45 (62.2)

1.80 (45.5) 15 2.40 (61.0)

1.75 (44.5) 20 2.35 (59.7)

1.70 (43.0) 24 2.30 (58.4)

1.65 (42.0) 28 2.25 (57.2)

1.60 (40.5) 32 2.20 (55.9)

1.55 (39.5) 36 2.15 (54.6)

1.50 (38.0) 40 2.10 (53.3)

1.45 (37.0) 44 2.05 (52.1)

1.40 (35.5) 48 2.00 (50.8)

1.35 (34.5) 52 1.95 (49.5)

1.30 (33.0) 56 1.90 (48.3)

1.25 (32.0) 60 1.85 (47.0)

1.20 (30.5) 64 1.80 (45.7)

1.15 (29.0) 68 1.75 (44.5)

1.10 (28.0) 72 1.70 (43.2)

1.05 (26.5) 76 1.65 (41.9)

1.00 (25.5) 80 1.60 (40.6)

0.95 (24.0) 84 1.55 (39.4)

0.90 (23.0) 88 1.50 (38.1)

0.85 (21.5) 92 1.45 (36.8)

0.80 (20.5) 96 1.40 (35.6)

0.75 (19.0) 100 1.35 (34.3)

0.70 (18.0) 104 1.30 (33.0)

0.65 (16.5) 108 1.25 (31.8)

0.60 (15.0) 112 1.20 (30.5)

0.55 (14.0) 116 1.15 (29.2)

0.50 (12.5) 120 1.10 (27.9)

Undercarriage Code: 485, 486

673

235, LL235 — 8.50" (215.9 mm)

Excavators

.61" (15.5 mm)

1.42" (36 mm)

11.Exc.(608-709) 7/14/03 7:33 AM Page 673
