Caterpillar Custom Track Service Handbook Page 193

Service Handbook

Page of 826

/ 826

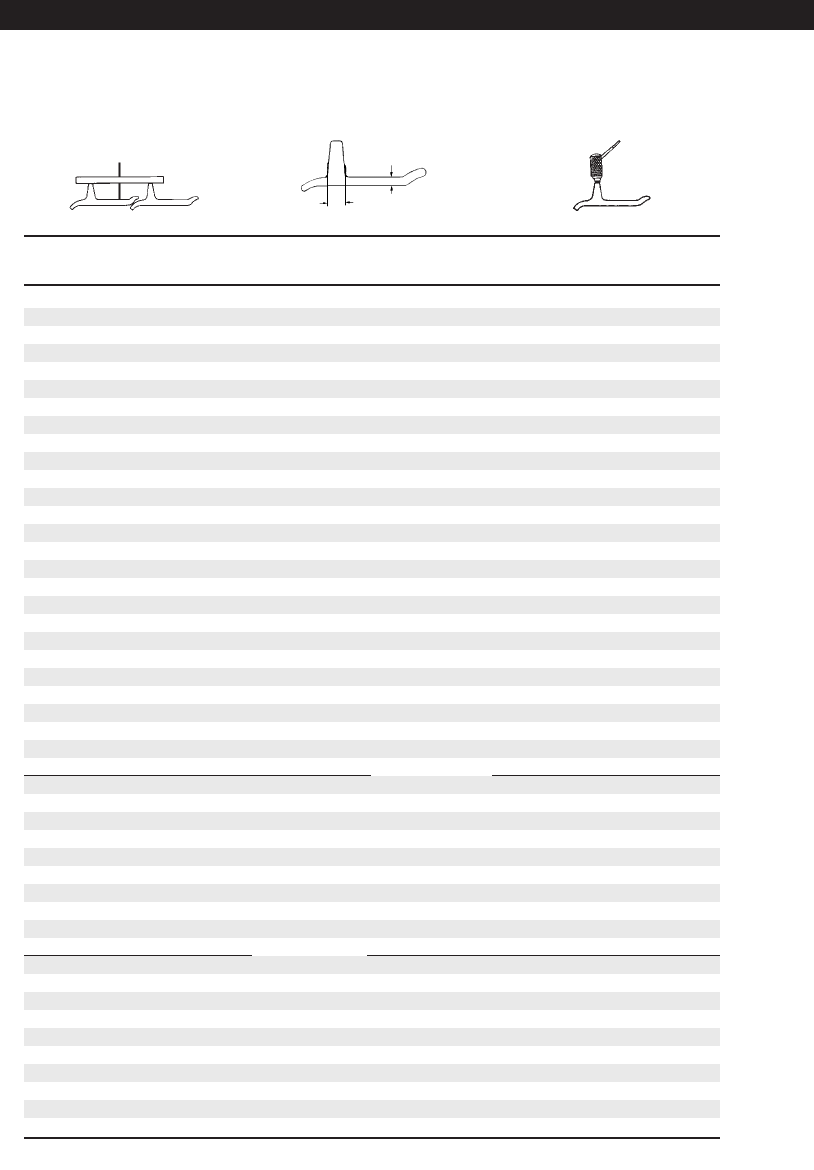

Track Shoes

Extreme Service

Former

Depth Gauge High Impact Low Impact Ultrasonic

Inches (mm) % Worn % Worn Inches (mm)

2.80 (71.0) 0 0 3.45 (87.6)

2.75 (70.0) 4 3 3.40 (86.4)

2.70 (68.5) 8 6 3.35 (85.1)

2.65 (67.5) 12 9 3.30 (83.8)

2.60 (66.0) 16 12 3.25 (82.6)

2.55 (65.0) 20 15 3.20 (81.3)

2.50 (63.5) 24 18 3.15 (80.0)

2.45 (62.0) 28 21 3.10 (78.7)

2.40 (61.0) 32 24 3.05 (77.5)

2.35 (59.5) 36 27 3.00 (76.2)

2.30 (58.5) 40 30 2.95 (74.9)

2.25 (57.0) 44 33 2.90 (73.7)

2.20 (56.0) 48 36 2.85 (72.4)

2.15 (54.5) 52 39 2.80 (71.1)

2.10 (53.5) 56 42 2.75 (69.9)

2.05 (52.0) 60 45 2.70 (68.6)

2.00 (51.0) 64 48 2.65 (67.3)

1.95 (49.5) 68 51 2.60 (66.0)

1.90 (48.5) 72 54 2.55 (64.8)

1.85 (47.0) 76 57 2.50 (63.5)

1.80 (45.5) 80 60 2.45 (62.2)

1.75 (44.5) 84 63 2.40 (61.0)

1.70 (43.0) 88 66 2.35 (59.7)

1.65 (42.0) 91 69 2.30 (58.4)

1.60 (40.5) 94 72 2.25 (57.2)

1.55 (39.5) 97 75 2.20 (55.9)

1.50 (38.0) 100 78 2.15 (54.6)

1.45 (37.0) 103 81 2.10 (53.3)

1.40 (35.5) 106 84 2.05 (52.1)

1.35 (34.5) 109 86 2.00 (50.8)

1.30 (33.0) 112 88 1.95 (49.5)

1.25 (32.0) 115 90 1.90 (48.3)

1.20 (30.5) 118 92 1.85 (47.0)

1.15 (29.0) 121 94 1.80 (45.7)

1.10 (28.0) 96 1.75 (44.5)

1.05 (26.5) 98 1.70 (43.2)

1.00 (25.5) 100 1.65 (41.9)

0.95 (24.0) 102 1.60 (40.6)

0.90 (23.0) 104 1.55 (39.4)

0.85 (21.5) 106 1.50 (38.1)

0.80 (20.5) 108 1.45 (36.8)

0.75 (19.0) 110 1.40 (35.6)

0.70 (18.0) 112 1.35 (34.3)

0.65 (16.5) 114 1.30 (33.0)

0.60 (15.0) 116 1.25 (31.8)

0.55 (14.0) 118 1.20 (30.5)

0.50 (12.5) 120 1.15 (29.2)

Undercarriage Code: 180

192

D8L, D8N, D8R, 578, 583R — 8.50" (215.9 mm)

Elevated Sprocket Machines

.67" (17 mm)

1.38" (35 mm)
