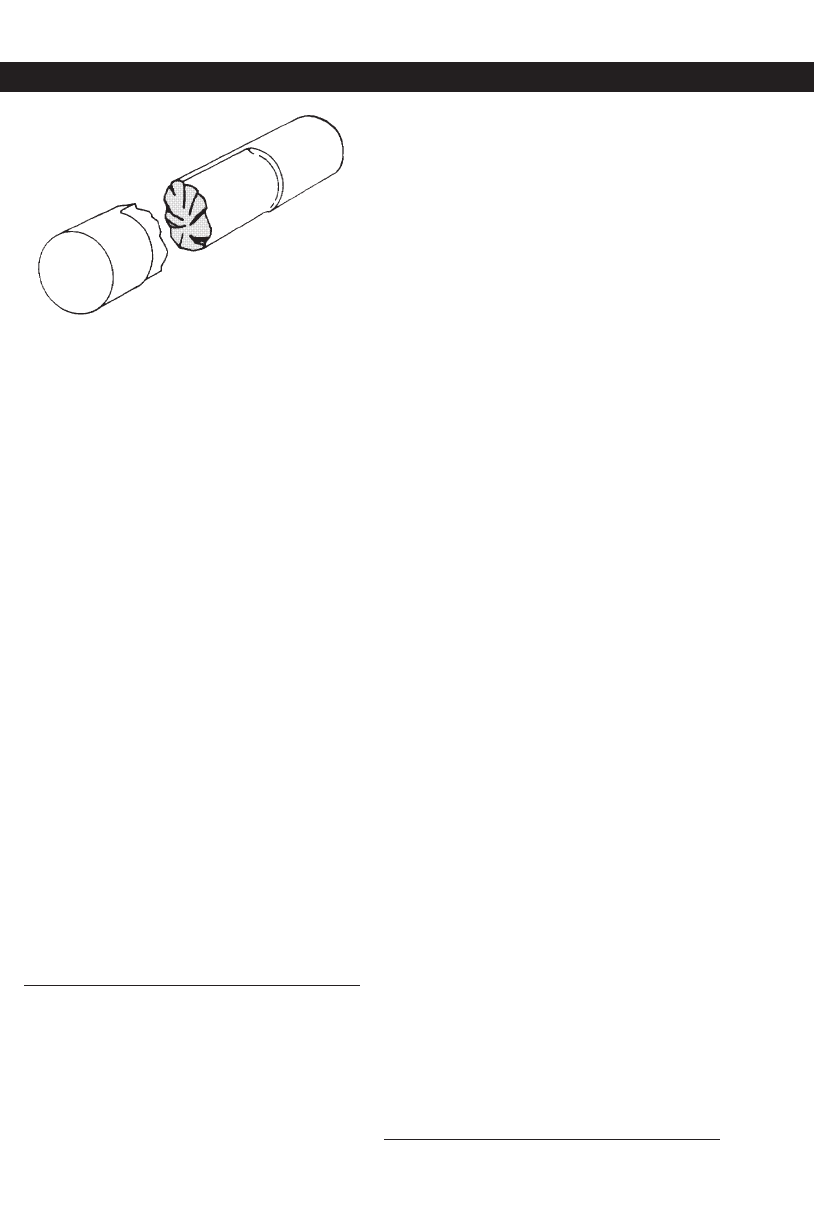

Pin Breakage

CAUSES: High static or impact loads

which cause crack to start at outer surface

(usually at pin wear step) and moves

through entire pin at a fast rate.

Pin cracking and breaking is less severe

with Sealed and Lubricated Track during

absence of internal wear. However, it may

be more serious once lubricant is lost and

internal wear is present due to faster rate

of internal wear and loss of pin strength

due to reservoir hole.

ACCELERATORS: Horsepower, weight

and speed of machine. Impact and terrain

conditions. Amount of internal wear that

reduces pin diameter. Tight track, too-

wide shoe, worn rear rollers and severe

packing loads caused by rocks between

bushing and sprocket are main control-

lable variables.

EFFECT: Immediate track separation.

Severe damage to other components.

REMEDIES: Eliminate or reduce control-

lable accelerator variables, particularly rocks

which are getting into spaces between

sprocket and bushings.

Sealed Track Pins

& Bushing Turn and

Replacement Guidelines

The following guidelines should be used

in determining if and when Sealed Track

pins and bushings should be turned and/or

replaced. The general guidelines discussed

in the section entitled “Track Manage-

ment” should be understood and practiced

before applying these specifics.

1. If a Sealed Track pin and bushing turn

and/or replacement is required to help

utilize total track link life it should be

done on or before either the internal

wear or external bushing service points

(100 percent worn) are reached, which-

ever comes first.

2. If a pin and bushing replacement is

required to help utilize the projected

total potential link life following the

turn of a previous set of pins and bush-

ings, it should also be done on or before

either the internal wear exceeds the ser-

vice point (100 percent worn) or the

external bushing surface is run to destruc-

tion (120 percent worn), regardless of

which occurs first.

3. When in doubt, turn early for best after

turn and after replacement wear and

structural life performance contributing

to overall best total track life and parts

reusability.

Do not use these criteria to determine if

and when to turn as they involve unreli-

able measurement techniques:

1. Sprocket wear lines or general sprocket

tooth wear condition.

2. Extent of idler adjustment used to remove

slack is determined by pitch extension

from internal wear.

3. Waiting until other components (such

as shoes) are ready for maintenance or

service based on previous experience of

phasing work at the same time.

Remember, if pins and bushings are

run to destruction internally prior to

replacement, then the replacement set

may give as little as 80 percent life of

the original set.

SEALED TRACK PINS & BUSHINGS

General Information
