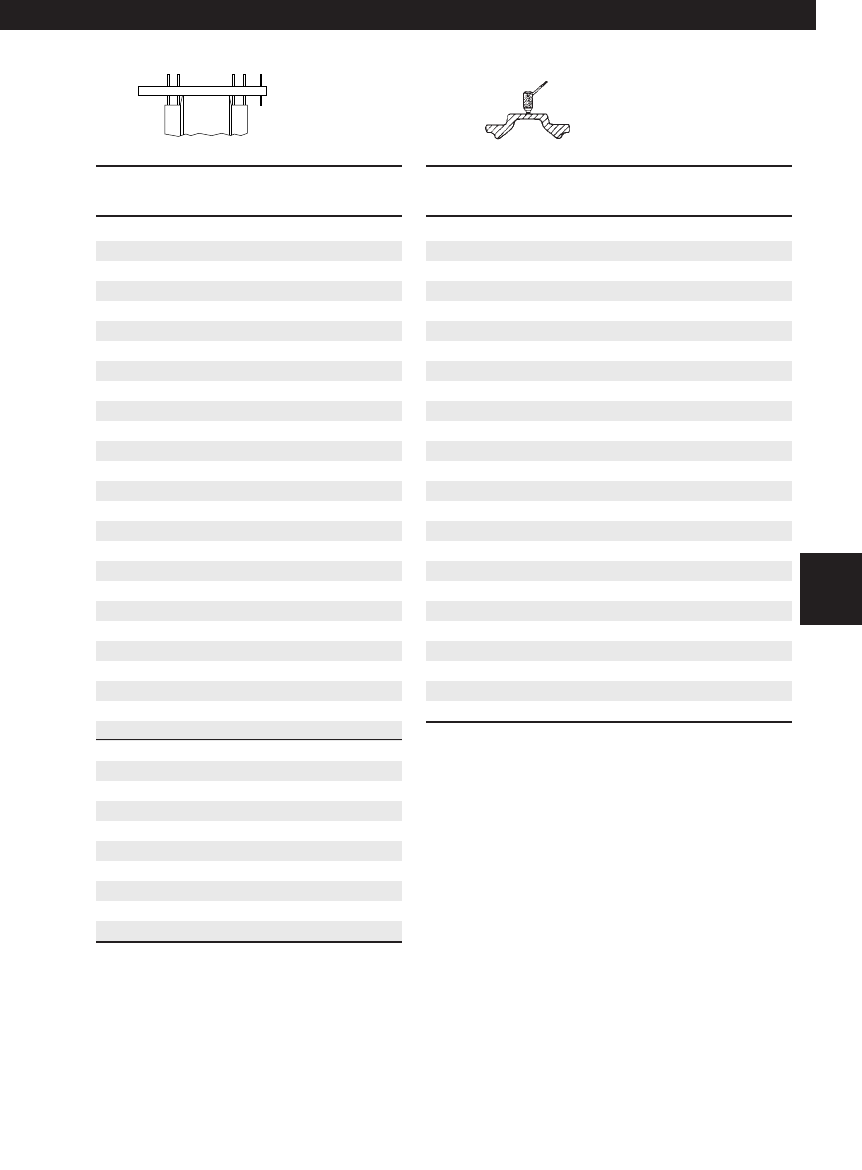

Idlers

Depth Gauge Ultrasonic Center Flange Wear

Inches (mm) % Worn Inches (mm) Inches (mm)

0.78 (20.0) 0 0.49 (12.4) 0.00 (0.0)

0.80 (20.5) 6 0.47 (11.9) 0.02 (0.5)

0.82 (21.0) 12 0.45 (11.4) 0.04 (1.0)

0.84 (21.5) 18 0.43 (10.9) 0.06 (1.5)

0.86 (22.0) 24 0.41 (10.4) 0.08 (2.0)

0.88 (22.5) 30 0.39 (9.9) 0.10 (2.5)

0.90 (23.0) 36 0.37 (9.4) 0.12 (3.0)

0.92 (23.5) 42 0.35 (8.9) 0.14 (3.5)

0.94 (24.0) 48 0.33 (8.4) 0.16 (4.0)

0.96 (24.5) 54 0.31 (7.9) 0.18 (4.5)

0.98 (25.0) 60 0.29 (7.4) 0.20 (5.0)

1.00 (25.5) 66 0.27 (6.9) 0.22 (5.5)

1.02 (26.0) 72 0.25 (6.3) 0.24 (6.0)

1.04 (26.5) 76 0.23 (5.8) 0.26 (6.5)

1.06 (27.0) 78 0.21 (5.3) 0.28 (7.0)

1.08 (27.5) 80 0.19 (4.8) 0.30 (7.5)

1.10 (28.0) 82 0.17 (4.3) 0.32 (8.0)

1.12 (28.5) 84 0.15 (3.8) 0.34 (8.5)

1.14 (29.0) 86 0.13 (3.3) 0.36 (9.0)

1.16 (29.5) 88 0.11 (2.8) 0.38 (9.5)

1.18 (30.0) 90 0.09 (2.3) 0.40 (10.0)

1.20 (30.5) 92 0.07 (1.8) 0.42 (10.5)

1.22 (31.0) 94 0.05 (1.3) 0.44 (11.0)

1.24 (31.5) 96 0.03 (0.8) 0.46 (11.5)

1.26 (32.0) 98 0.01 (0.3) 0.48 (12.0)

1.28 (32.5) 100 NOTE: Ultrasonic measurement is to determine

1.30 (33.0) 102

flange wear only.

1.32 (33.5) 104

1.34 (34.0) 106

1.36 (34.5) 108

1.38 (35.0) 110

1.40 (35.5) 112

1.42 (36.0) 114

1.44 (36.5) 116

1.46 (37.0) 118

1.48 (37.5) 120

Flange width: 3.74" (95 mm)

Undercarriage Code: 364, 365

469

Hydrostatic Loaders

963 — 8.00" (203.2 mm)
