Caterpillar Custom Track Service Handbook Page 316

Service Handbook

Page of 826

/ 826

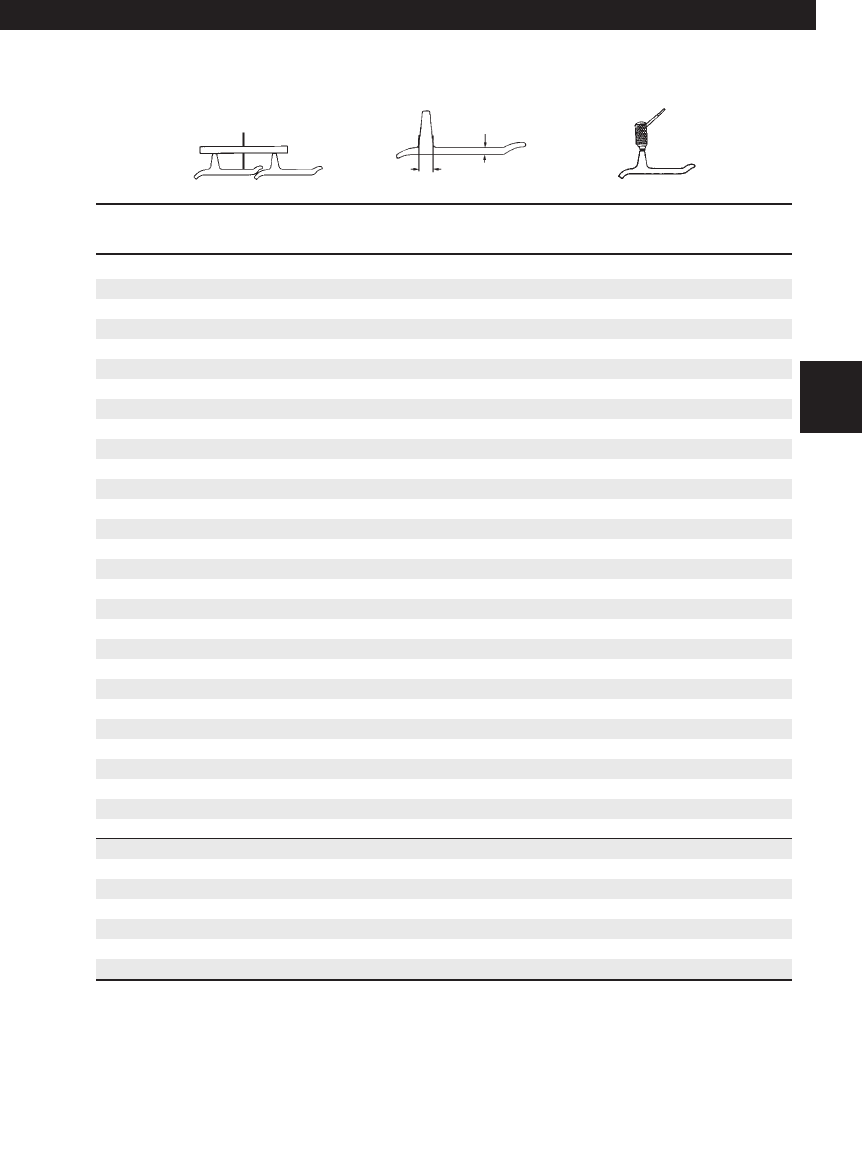

Track Shoes

Moderate Service

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

2.25 (57.0) 0 2.75 (69.9)

2.20 (56.0) 4 2.70 (68.6)

2.15 (54.5) 8 2.65 (67.3)

2.10 (53.5) 12 2.60 (66.0)

2.05 (52.0) 16 2.55 (64.8)

2.00 (51.0) 20 2.50 (63.5)

1.95 (49.5) 24 2.45 (62.2)

1.90 (48.5) 28 2.40 (61.0)

1.85 (47.0) 32 2.35 (59.7)

1.80 (45.5) 36 2.30 (58.4)

1.75 (44.5) 40 2.25 (57.2)

1.70 (43.0) 44 2.20 (55.9)

1.65 (42.0) 48 2.15 (54.6)

1.60 (40.5) 52 2.10 (53.3)

1.55 (39.5) 56 2.05 (52.1)

1.50 (38.0) 60 2.00 (50.8)

1.45 (37.0) 64 1.95 (49.5)

1.40 (35.5) 67 1.90 (48.3)

1.35 (34.5) 70 1.85 (47.0)

1.30 (33.0) 73 1.80 (45.7)

1.25 (32.0) 76 1.75 (44.5)

1.20 (30.5) 79 1.70 (43.2)

1.15 (29.0) 82 1.65 (41.9)

1.10 (28.0) 85 1.60 (40.6)

1.05 (26.5) 88 1.55 (39.4)

1.00 (25.5) 91 1.50 (38.1)

0.95 (24.0) 94 1.45 (36.8)

0.90 (23.0) 97 1.40 (35.6)

0.85 (21.5) 100 1.35 (34.3)

0.80 (20.5) 103 1.30 (33.0)

0.75 (19.0) 106 1.25 (31.8)

0.70 (18.0) 109 1.20 (30.5)

0.65 (16.5) 112 1.15 (29.2)

0.60 (15.0) 115 1.10 (27.9)

0.55 (14.0) 118 1.05 (26.7)

0.50 (12.5) 121 1.00 (25.4)

Undercarriage Code: 104, 105, 130, 131, 331, 332, 350

315

D5, 955, 951, 561 — 6.91" (175.5 mm)

Low Sprocket Machines

.50" (12.7 mm)

.91" (23 mm)

05.Low(246-325) 7/11/03 3:52 PM Page 315
