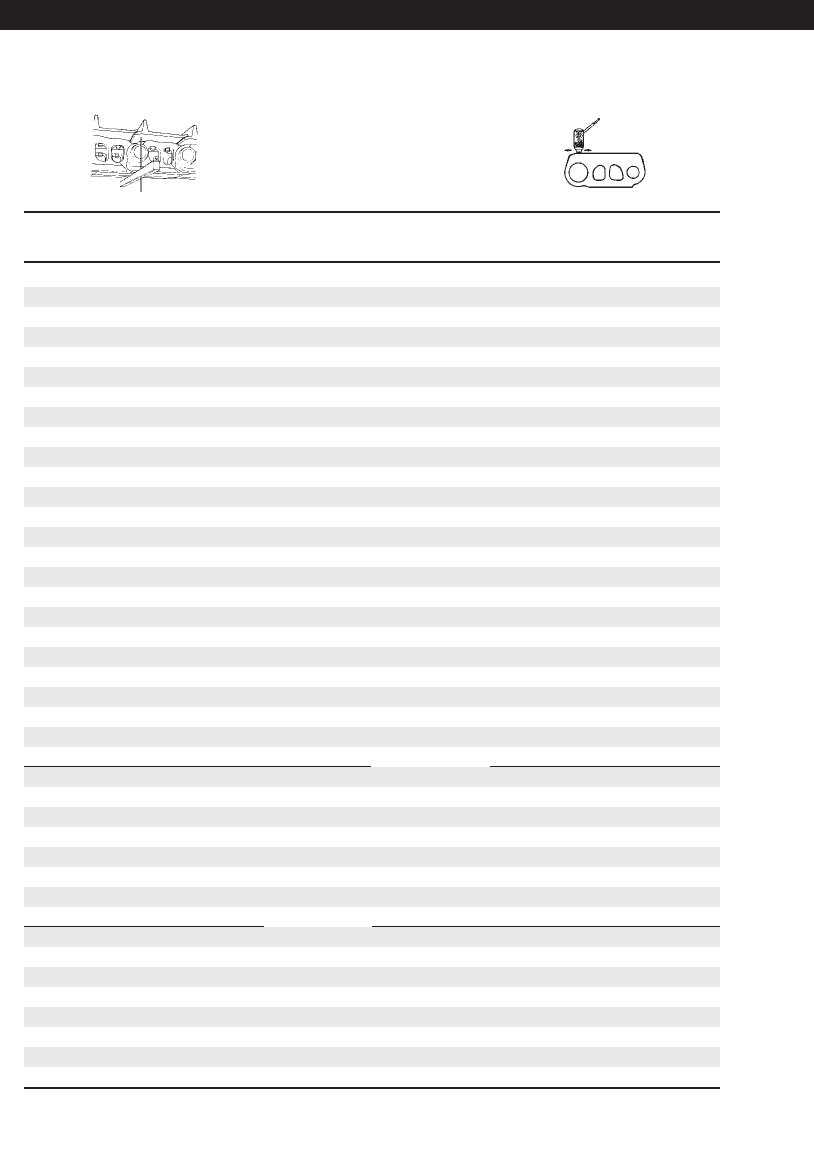

Caterpillar Custom Track Service Handbook Page 213

Service Handbook

Page of 826

/ 826

Track Links

7T7629 & 30

7T4137 & 38

Depth Gauge High Impact Low Impact Ultrasonic

Inches (mm) % Worn % Worn Inches (mm)

6.34 (161.0) 0 0 1.85 (47.0)

6.32 (160.5) 5 4 1.83 (46.5)

6.30 (160.0) 10 8 1.81 (46.0)

6.28 (159.5) 15 12 1.79 (45.5)

6.26 (159.0) 20 16 1.77 (45.0)

6.24 (158.5) 25 20 1.75 (44.5)

6.22 (158.0) 30 24 1.73 (43.9)

6.20 (157.5) 35 28 1.71 (43.4)

6.18 (157.0) 40 32 1.69 (42.9)

6.16 (156.5) 45 36 1.67 (42.4)

6.14 (156.0) 50 40 1.65 (41.9)

6.12 (155.5) 55 44 1.63 (41.4)

6.10 (155.0) 60 48 1.61 (40.9)

6.08 (154.5) 64 52 1.59 (40.4)

6.06 (154.0) 68 55 1.57 (39.9)

6.04 (153.5) 71 58 1.55 (39.4)

6.02 (153.0) 74 60 1.53 (38.9)

6.00 (152.5) 77 63 1.51 (38.4)

5.98 (152.0) 81 65 1.49 (37.8)

5.96 (151.5) 84 68 1.47 (37.3)

5.94 (151.0) 87 70 1.45 (36.8)

5.92 (150.5) 90 73 1.43 (36.3)

5.90 (150.0) 94 75 1.41 (35.8)

5.88 (149.5) 97 78 1.39 (35.3)

5.86 (149.0) 100 80 1.37 (34.8)

5.84 (148.5) 103 83 1.35 (34.3)

5.82 (148.0) 107 85 1.33 (33.8)

5.80 (147.5) 110 88 1.31 (33.3)

5.78 (147.0) 113 90 1.29 (32.8)

5.76 (146.5) 116 93 1.27 (32.3)

5.74 (146.0) 120 95 1.25 (31.8)

5.72 (145.5) 98 1.23 (31.2)

5.70 (145.0) 100 1.21 (30.7)

5.68 (144.5) 103 1.19 (30.2)

5.66 (144.0) 105 1.17 (29.7)

5.64 (143.5) 108 1.15 (29.2)

5.62 (142.5) 110 1.13 (28.7)

5.60 (142.0) 113 1.11 (28.2)

5.58 (141.5) 115 1.09 (27.7)

5.56 (141.0) 118 1.07 (27.2)

5.54 (140.5) 120 1.05 (26.7)

Undercarriage Code: 193, 194

212

D9L, 589 — 9.00" (228.6 mm)

Elevated Sprocket Machines

04.Elev.(198-245) 7/11/03 3:45 PM Page 212
